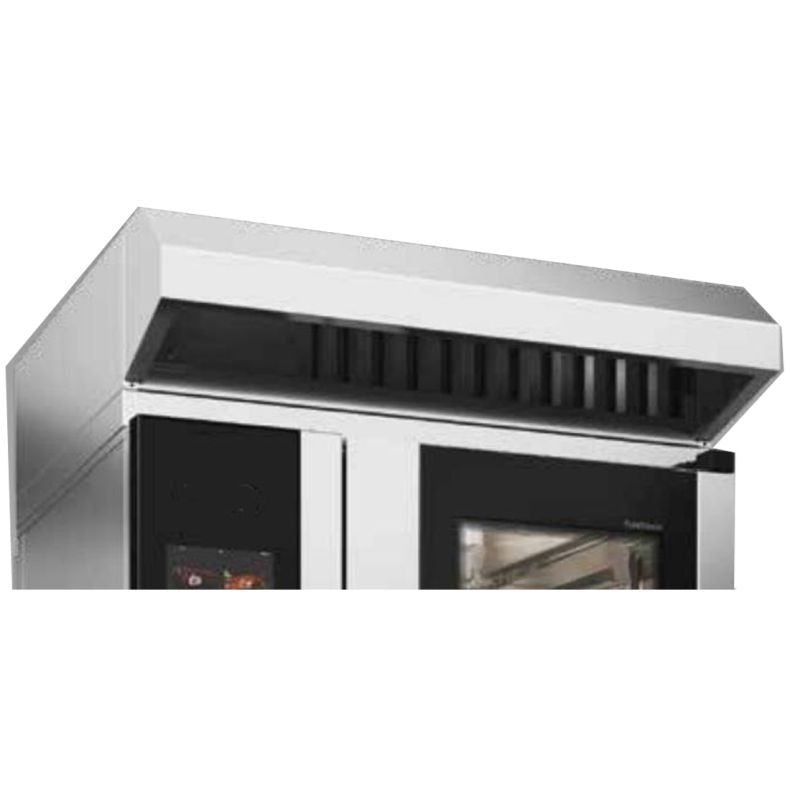

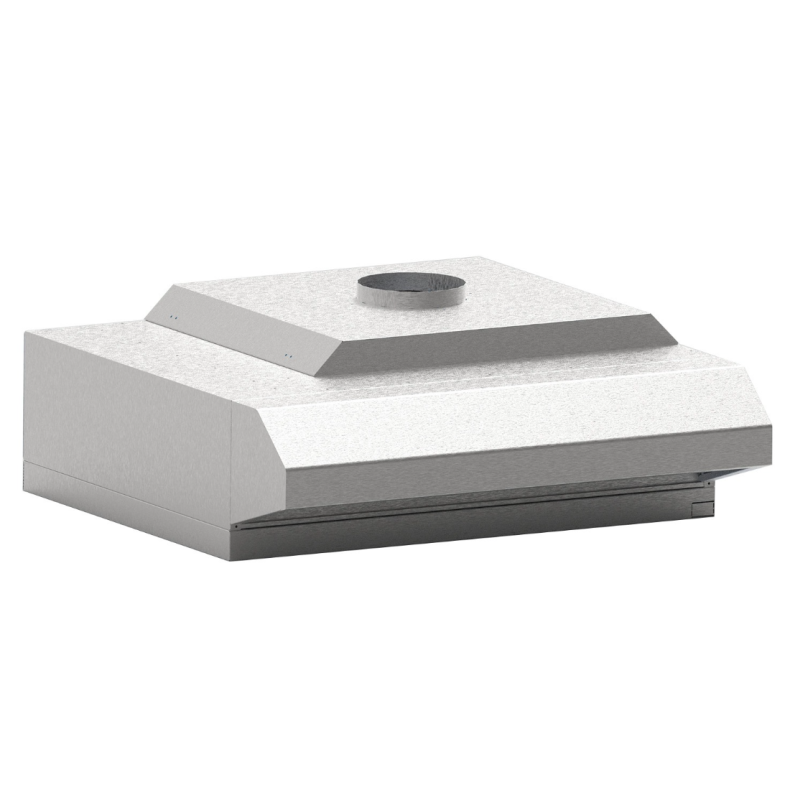

Fagor EXH-061-101 Electric Condensing Hood for 061 and 101 IKORE Oven

The Fagor EXH-061-101 is an electric condensing hood designed specifically for use with Fagor's 061 and 101 IKORE combi ovens, providing an effective and self-contained steam management solution for busy commercial kitchens. Operating on a straightforward single-phase connection, it can be retrofitted to existing IKORE oven installations, making it a practical upgrade or addition without complex electrical work.

This condensing hood actively captures steam produced during the cooking process and draws in the burst of vapour released each time the oven door is opened, with suction power that adjusts automatically to suit the situation. By condensing and extracting steam directly from the cooking cabinet, it reduces humidity in the surrounding kitchen environment, contributing to a more comfortable and safer workspace.

Key Benefits

• Manages steam at the source by retaining cooking steam and capturing door-opening vapour bursts, reducing ambient humidity and heat in the kitchen.
• Automatic suction adjustment responds to varying steam loads, ensuring effective extraction without requiring manual intervention from kitchen staff.
• Single-phase electrical connection simplifies installation and keeps setup costs low, with retrofitting capability allowing it to be added to existing IKORE ovens.
• Removable filters make routine cleaning straightforward, helping maintain extraction efficiency and hygiene standards with minimal downtime.
• Accessible and removable front panel allows for easy internal maintenance without specialist tools or extensive disassembly.
• Solid construction is built to withstand the demands of continuous commercial kitchen use, providing long-term reliability.
• Backed by a 2-year parts and labour warranty plus an additional 2-year parts-only warranty when the product is registered within 14 days of invoice, offering strong after-purchase support.

Key Features

• Compatible with Fagor 061 and 101 IKORE combi ovens.
• Single-phase electrical connection rated at 320W/10A.
• Retrofitting capability allows installation on existing IKORE oven setups.
• Automatically adjusts suction power to match steam levels in each situation.
• Captures steam generated during cooking as well as vapour released when the oven door is opened.
• Automatic steam extraction directly from the cooking cabinet.
• Removable filters for straightforward cleaning and maintenance.
• Accessible and removable front panel for ease of servicing.
• Solid structural build suited to high-demand commercial kitchen environments.
• Dimensions: 660mm wide x 600mm deep x 255mm high.
• Weight: 40kg.
• Packed dimensions: 898mm wide x 816mm deep x 370mm high.
• 2-year parts and labour warranty plus 2-year parts-only warranty when registered within 14 days of invoice.

Specifications

• Width (mm): 660
• Depth (mm): 600
• Height (mm): 255
• Weight (kg): 40
• Packed Width (mm): 898
• Packed Depth (mm): 816
• Packed Height (mm): 370
• Shipping Weight: 35
• Power Delivery: 320W/10A
• Power (kW): 320
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
