Overview

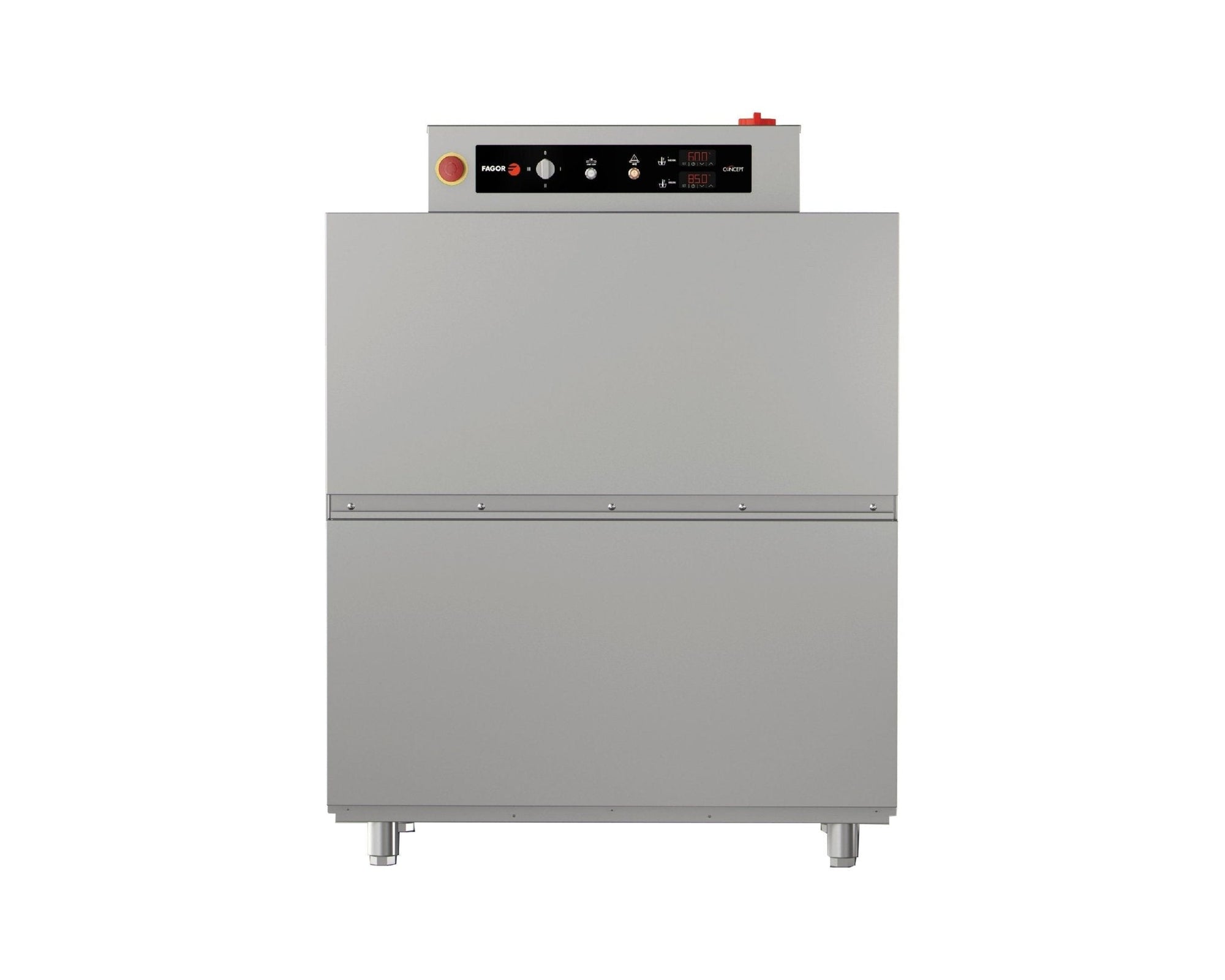

Fagor CCO-120ICW Electric Conveyor Dishwasher – Left Entrance

The Fagor CCO-120ICW is a heavy-duty electric conveyor dishwasher configured for left-side basket entry, purpose-built for high-volume commercial kitchens that demand continuous, reliable warewashing throughput. Every principal structural and functional component — from the tanks and boiler through to the washing arms, rinsing arms, jets, doors, basket conveyance system, and metal tubes — is fabricated from AISI-304 anti-corrosion stainless steel, ensuring long-term durability in demanding wet environments.

Equipped with three selectable washing programs, an eight-branch high-power washing arrangement comprising four upper and four lower washing branches, double-effect rinsing, and a suite of intelligent energy-saving functions, the CCO-120ICW is engineered to deliver consistently hygienic results while keeping operating costs in check. The machine ships with a full set of baskets and is backed by a 2-year parts and labour warranty, making it a complete solution ready for immediate deployment.

Key Benefits

• Three washing programs — catering for deep cleaning, medium loads, and high-capacity throughput — allow staff to match the cycle to the soil level and basket load, optimising both cleaning results and resource use.
• Multiple integrated energy-saving systems automatically halt pump operation and reduce rinse heating to standby during idle periods, and the wash and rinse cycles only activate upon basket detection, cutting electricity and water consumption during quieter service periods.
• An inactivity-triggered auto-timer shuts down the conveyor motor following 10 consecutive minutes without use, reducing unnecessary wear and energy draw without requiring manual intervention.

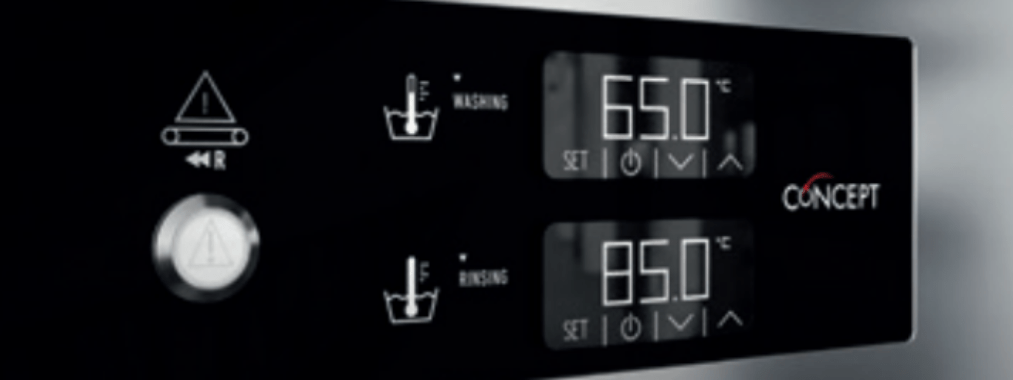

• Configurable electronic temperature control maintains wash temperatures between 50 and 65 °C and rinse temperatures between 70 and 85 °C, with a guaranteed rinse temperature of 85 °C for confident hygiene compliance.
• Automatic conveyor blockage detection and reverse functionality prevents jams from halting service, reducing the need for operator intervention during busy periods.
• IPX4-rated electrical protection and the open-door blocking system safeguard both staff and equipment, while the extra anti-entrapment system at the entrance adds a further layer of operational safety.
• Washing arms, rinse jets, and tank tray filters are all quickly removable without tools, keeping daily cleaning fast and straightforward to support consistent hygiene standards.
• The electrovalve is accessible from one side without removing panels, and the electrical panel is pre-configured for easy connection of liquid and solid detergent dosers, rinse aid, and limit switches, simplifying installation and chemical dosing setup.
• Supplied with six baskets covering plates, glasses, cutlery, and general items, plus a limit switch, so the machine is ready to run from day one without additional accessory purchases.

Key Features

• All principal components fabricated from AISI-304 anti-corrosion stainless steel, encompassing the tanks, boiler, metal tubes, washing arms, rinsing arms, jets, doors, and basket conveyance system.
• Double panel door with upward-opening action for straightforward loading access.
• AISI-304 stainless steel tank tray filters that are easily accessible and removable for cleaning and tank access.
• Safety filter on the pump suction line.
• Heat-insulated rinsing boiler for efficient thermal retention.
• Electrovalve positioned on one side of the machine, accessible without removing panels, for straightforward installation.
• Electrical panel pre-wired for easy connection of liquid and solid detergent dosers, rinse aid, limit switches, and a supplementary emergency stop button.

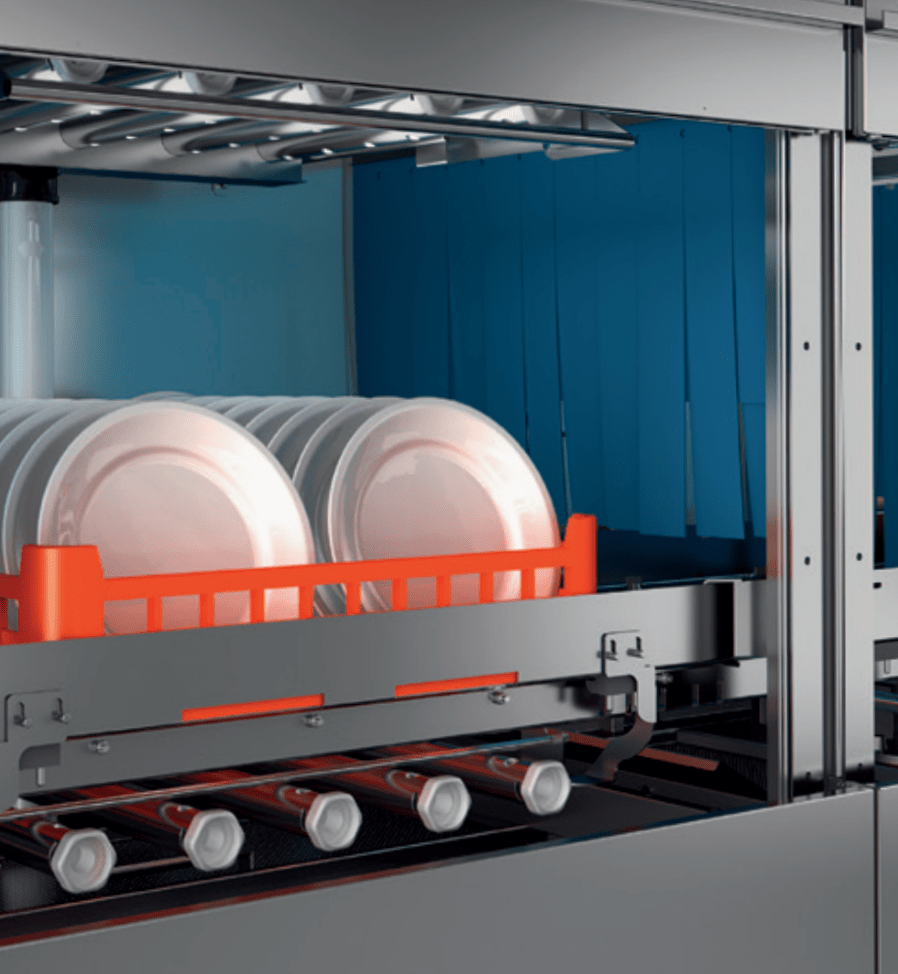

• Eight-branch washing system arranged as four upper and four lower washing branches; the arm assemblies are removable as a complete set, with an individual plug on every branch to permit internal cleaning access.
• Rinse jets engineered for quick dismounting and removal for maintenance.
• Electronic speed regulation via frequency shifter for precise conveyor control.
• Configurable electronic temperature control: wash range 50 to 65 °C, rinse range 70 to 85 °C, with a guaranteed rinse temperature of 85 °C.
• Pressure regulator for consistent water delivery.
• Double-effect rinse system for thorough final rinsing.
• Automatic conveyor blockage detection with reverse function.
• IPX4-rated electrical protection.
• Open-door blocking system and extra anti-entrapment system at the entrance.
• Left-side basket entry configuration.
• Supplied with six baskets (plates, glasses, cutlery, and general items) and a limit switch.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 1180
• Depth (mm): 790
• Height (mm): 1560
• Weight (kg): 697.75
• Packed Width (mm): 1530
• Packed Depth (mm): 955
• Packed Height (mm): 1950
• Shipping Weight: 211
• Power Delivery: 50Hz; 400V - 3N; 26.55kW;
• Power (kW): 50
• Warranty (months): 2 Years Parts and Labour
