Overview

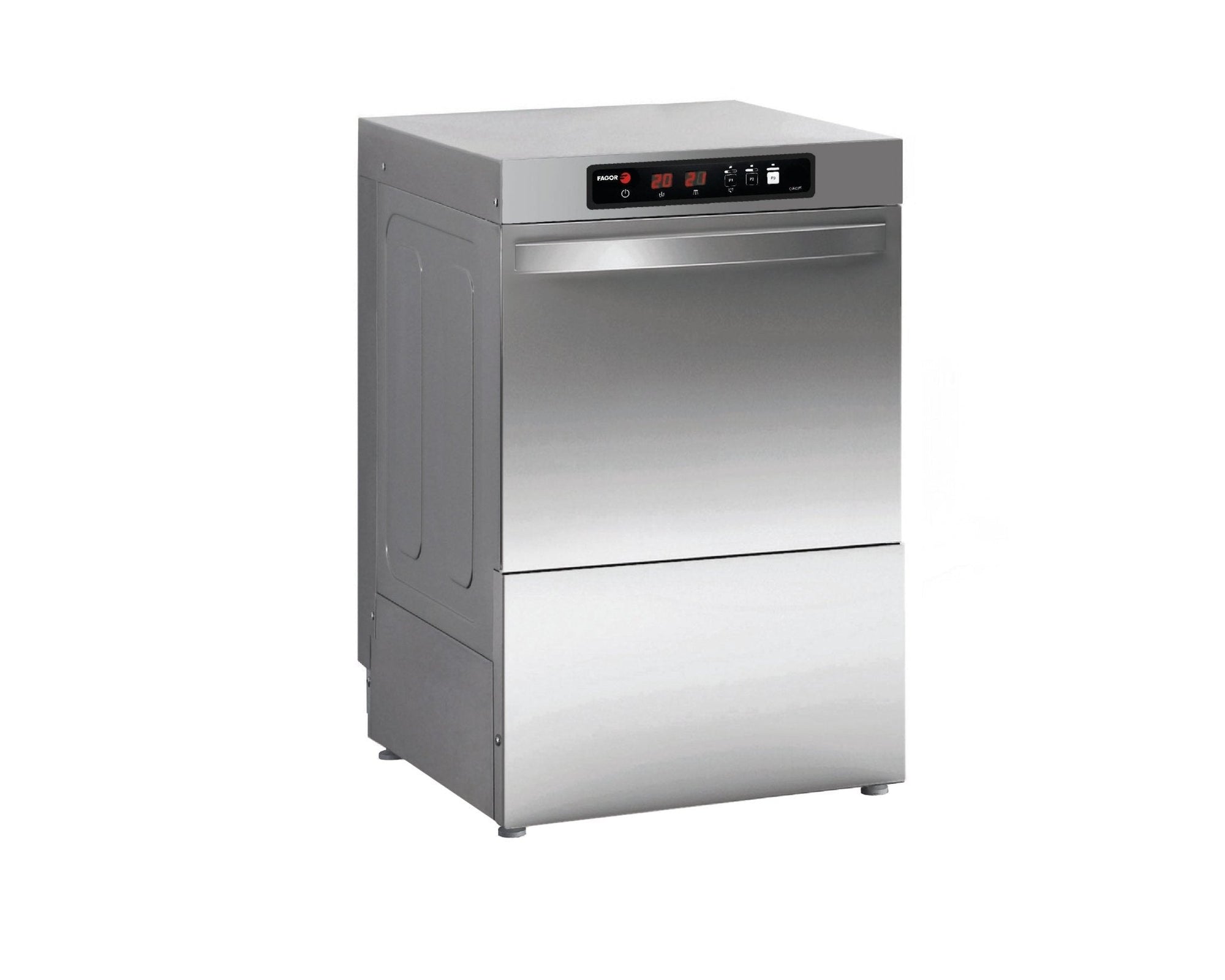

Fagor CO-402BDD EVO-CONCEPT Undercounter Glass Washer with Drain Pump, Detergent & Rinse Dispenser – Cold Rinse

The Fagor CO-402BDD is a front-loading undercounter glass washer from the EVO-CONCEPT advanced generation range, engineered for high-volume bar, restaurant and hospitality environments. Built entirely from stainless steel with a double-skin rigid door, it accommodates a 400 x 400 mm basket with a maximum ware clearance of 275 mm and delivers a throughput of up to 40 baskets per hour across three selectable wash cycles of 90, 120 or 180 seconds.

At the heart of the machine is Fagor's optimised EFFI-WASH hydraulic system, featuring stainless steel wash arms and independent upper and lower rotating wash and rinse assemblies that together achieve a balanced Sinner circle wash performance. Factory-fitted detergent and rinse-aid dispensers, a built-in drain pump, thermostatic temperature control, a WaterMark-approved non-return valve and a safety magnetic door switch ensure consistent hygiene, ease of operation and compliance with Australian plumbing standards.

Key Benefits

• Throughput of 40 baskets per hour supports continuous service in busy bars and restaurants without bottlenecks.
• Three cycle options of 90, 120 and 180 seconds let operators match wash intensity to soil load, saving time and energy during quieter periods.
• The EFFI-WASH system's optimised Sinner circle balance ensures thorough, efficient cleaning while keeping water consumption to just 2.4 litres per rinse cycle.
• Factory-fitted detergent doser and rinse-aid dispenser eliminate manual dosing errors and reduce chemical waste.
• Thermostatically regulated temperatures — 60 °C through the wash phase and 90 °C during rinsing — deliver consistently hygienic results cycle after cycle, with security thermostats providing over-temperature protection.
• An optional end-of-cycle cold rinse can be activated via the control panel, helping lower glass temperature quickly to reduce breakage risk and accelerate turnaround.
• WaterMark certification and a built-in non-return valve satisfy Australian plumbing compliance requirements straight out of the box.
• Adjustable legs allow precise levelling on uneven floors, and the compact 470 x 520 x 720 mm footprint fits neatly into tight underbench spaces.
• The unit ships with a 400 x 400 mm basket, a dish supplement and a cutlery container included, so it is ready to operate immediately on installation.

Key Features

• EVO-CONCEPT front-loading glass washer – EVO Generation advanced range.

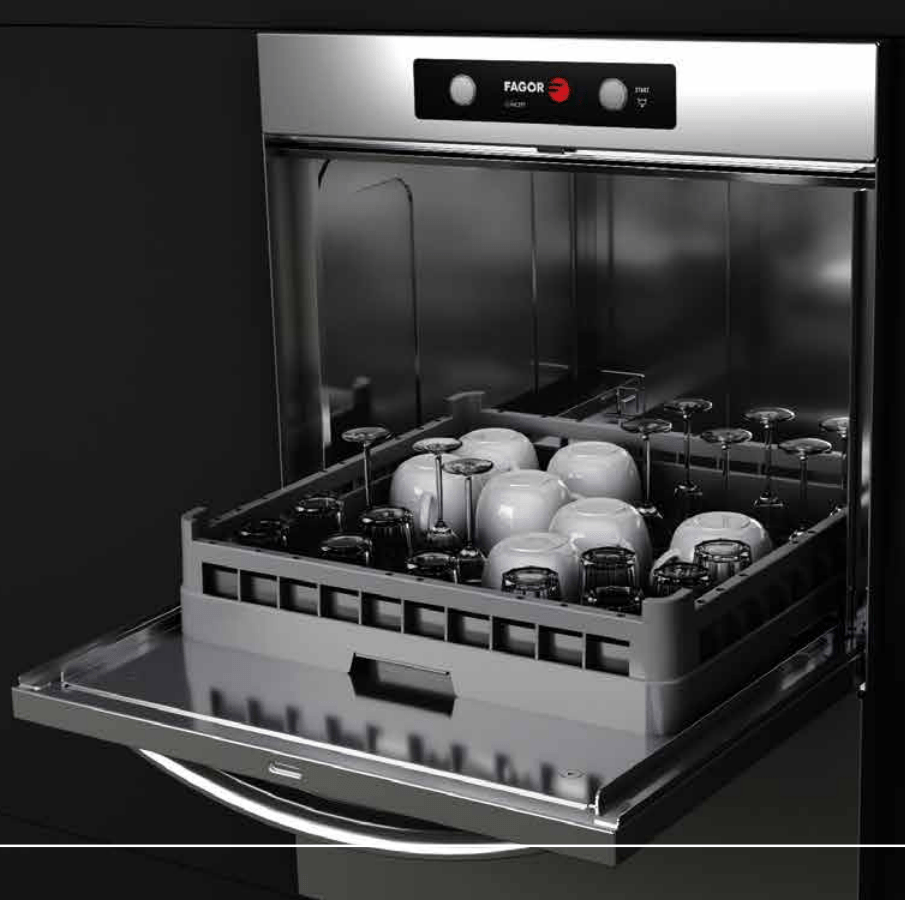

• 400 x 400 mm basket capacity; accepts dishes up to 270 mm diameter.
• Maximum ware height clearance of 275 mm.
• Hourly production of 40 baskets per hour.
• Three selectable wash cycles: 90, 120 and 180 seconds.
• Optional cold rinse mode selectable at the conclusion of the wash cycle via the control panel.
• Electronic control panel with digital displays for straightforward operation.
• Constructed from stainless steel throughout.

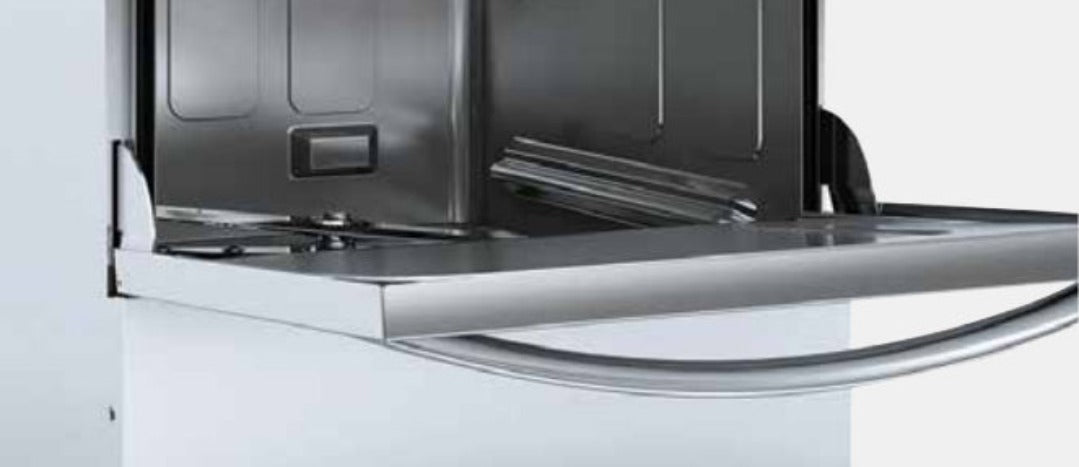

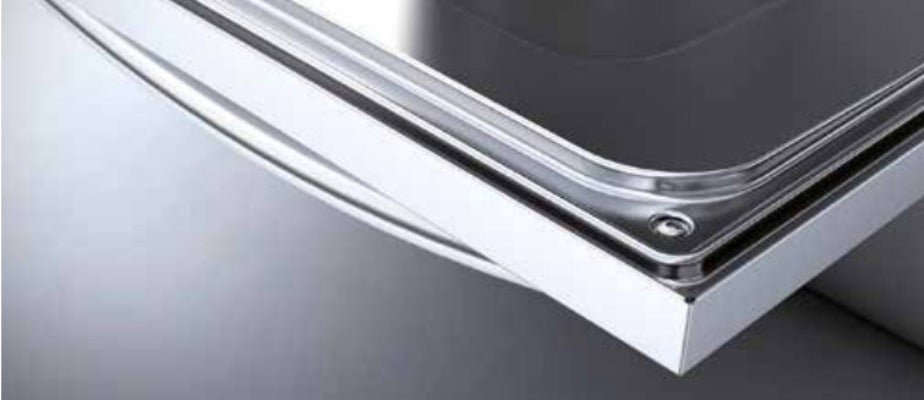

• Double-skin rigid door for improved insulation and durability.

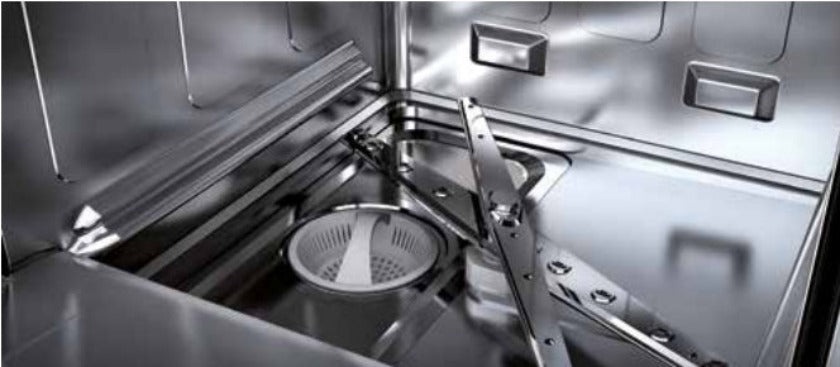

• EFFI-WASH optimised hydraulic system with stainless steel wash arms.
• Independent rotating wash and rinse assemblies positioned above and below the basket, both manufactured from stainless steel.
• Wash pump: 260 W (0.26 kW).
• Drain pump: 30 W, factory-fitted.
• Tank heating element: 2.0 kW; tank capacity 13 litres.
• Boiler heating element: 2.8 kW; boiler capacity 4 litres.
• Total installed power: 3.06 kW / 15 A.
• Water consumption: 2.4 litres per rinse cycle at a mains pressure of 2 bar.
• Thermostatic control sets the wash phase to 60 °C and the rinse phase to 90 °C, with security thermostats for over-temperature protection.
• Built-in automatic rinse-aid dispenser and detergent doser, factory-fitted.
• Built-in non-return valve.
• Safety magnetic door-open sensor that interrupts the cycle when the door is opened.
• Adjustable legs for levelling to suit the installation environment.
• WaterMark approved, meeting Australian plumbing compliance standards.
• Supplied complete with one 400 x 400 mm basket, a supplementary dish rack and a cutlery container.
• 2 Years Parts and Labour Warranty.
• Dimensions: 470 mm (W) x 520 mm (D) x 720 mm (H).

Specifications

• Width (mm): 470
• Depth (mm): 520
• Height (mm): 720
• Weight (kg): 80.25
• Packed Width (mm): 530
• Packed Depth (mm): 680
• Packed Height (mm): 890
• Shipping Weight: 36
• Power Delivery: 11.02 MJ
• Power (kW): 11.02
• Warranty (months): 2 Years Parts and Labour
