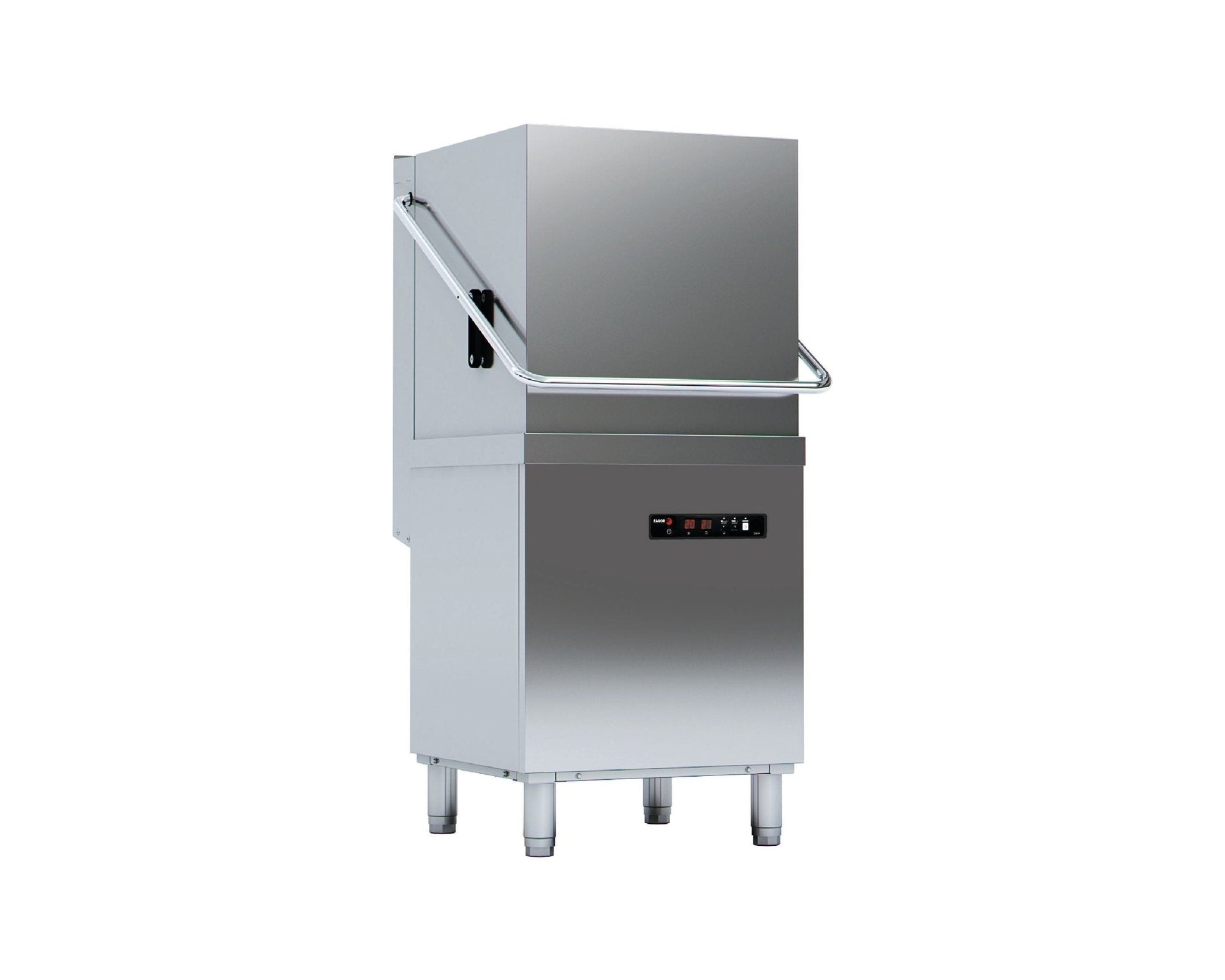

Fagor CO-142BDD EVO-CONCEPT Pass-Through Dishwasher

The Fagor CO-142BDD is a hood-type pass-through dishwasher from the EVO Generation Concept range, engineered for high-volume commercial kitchens that demand consistent, hygienic warewashing results. With a throughput of up to 65 baskets or 1,170 dishes per hour and three selectable wash cycles, it adapts to varying service demands without compromising on clean results.

Built entirely in stainless steel and featuring a counterbalanced hood, electronic controls, and thermostatic temperature management for both wash and rinse stages, the CO-142BDD is a Watermark certified product ready for Australian commercial kitchen installation. It operates on three-phase power but can be converted to single-phase 415V/50Hz, giving operators flexibility across different site configurations.

Key Benefits

• Throughput of 65 baskets or up to 1,170 dishes per hour keeps clean ware flowing even during peak service periods.
• Three wash cycle options of 55, 75, and 120 seconds allow operators to match cycle time to soil load, balancing speed with cleaning performance.
• Thermostatic control maintains wash water at 60°C and rinse water at 90°C, ensuring consistent hygiene standards across every cycle.
• Built-in automatic rinse aid dispenser and detergent doser remove the guesswork from chemical dosing, reducing waste and ensuring correct concentration every cycle.
• The Thermostop safety feature and dual safety thermostats protect both the machine and operator, reducing the risk of downtime caused by overheating.
• A counterbalanced hood and safety magnetic switch prevent accidental operation while the hood is open, supporting safe and efficient workflow.
• Convertible from three-phase to single-phase 415V/50Hz operation, making the unit suitable for a wider range of commercial premises.
• Supplied ready to use with a base basket, plate basket, and two cutlery containers, minimising additional setup costs at installation.
• Adjustable legs allow the machine to be levelled on uneven floors, ensuring stable and reliable operation in real-world kitchen environments.

Key Features

• Hood-type pass-through dishwasher from the Fagor EVO Generation, Concept range.
• Hourly production capacity of 65 baskets per hour and 1,170 dishes per hour.

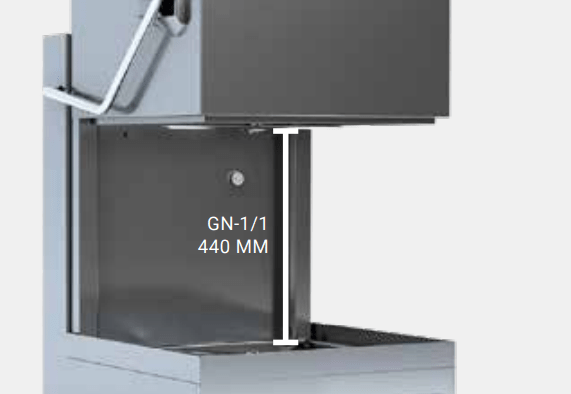

• Maximum ware clearance height of 440mm accommodates a wide variety of crockery and cookware.
• Electronic control panel with selectable wash cycles of 55, 75, and 120 seconds.

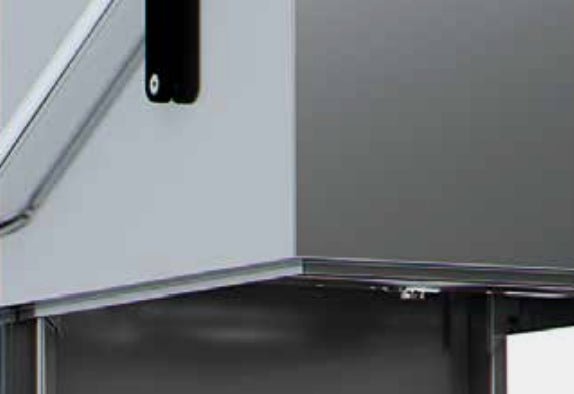

• Counterbalanced hood for smooth, effortless lifting and lowering during operation.
• Double rotating wash and rinse arm systems manufactured from AISI-304 stainless steel.
• Wash pump rated at 600W per pump.
• Drain pump rated at 70W for efficient drainage at the end of each cycle.
• Stainless steel wash tank with a 33-litre capacity.
• Boiler heating power of 6kW with a 9-litre boiler capacity for rapid and sustained hot rinse delivery.
• Water consumption of 2.4 litres per rinse cycle.
• Thermostatic temperature control maintaining wash temperature at 60°C and rinse temperature at 90°C.
• Thermostop function for enhanced operational safety.
• Dual safety thermostats providing additional overheat protection.
• Built-in automatic rinse aid dispenser and detergent doser for precise, consistent chemical delivery.
• Built-in non-return valve to prevent backflow contamination.
• Safety magnetic switch that disables operation when the hood is open.
• Adjustable feet for levelling on uneven surfaces.
• Fully stainless steel construction throughout.
• Supplied with one base basket, one plate basket, and two cutlery containers.
• Watermark certified product.
• Can be converted to single-phase operation at 415V/50Hz.
• Standard electrical supply: 415V/50Hz/3-phase.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 630
• Depth (mm): 750
• Height (mm): 1465
• Weight (kg): 321
• Packed Width (mm): 905
• Packed Depth (mm): 825
• Packed Height (mm): 1720
• Shipping Weight: 92
• Power Delivery: 11.1/3~N kW/A
• Power (kW): 11.1
• Warranty (months): 2 Years Parts and Labour
