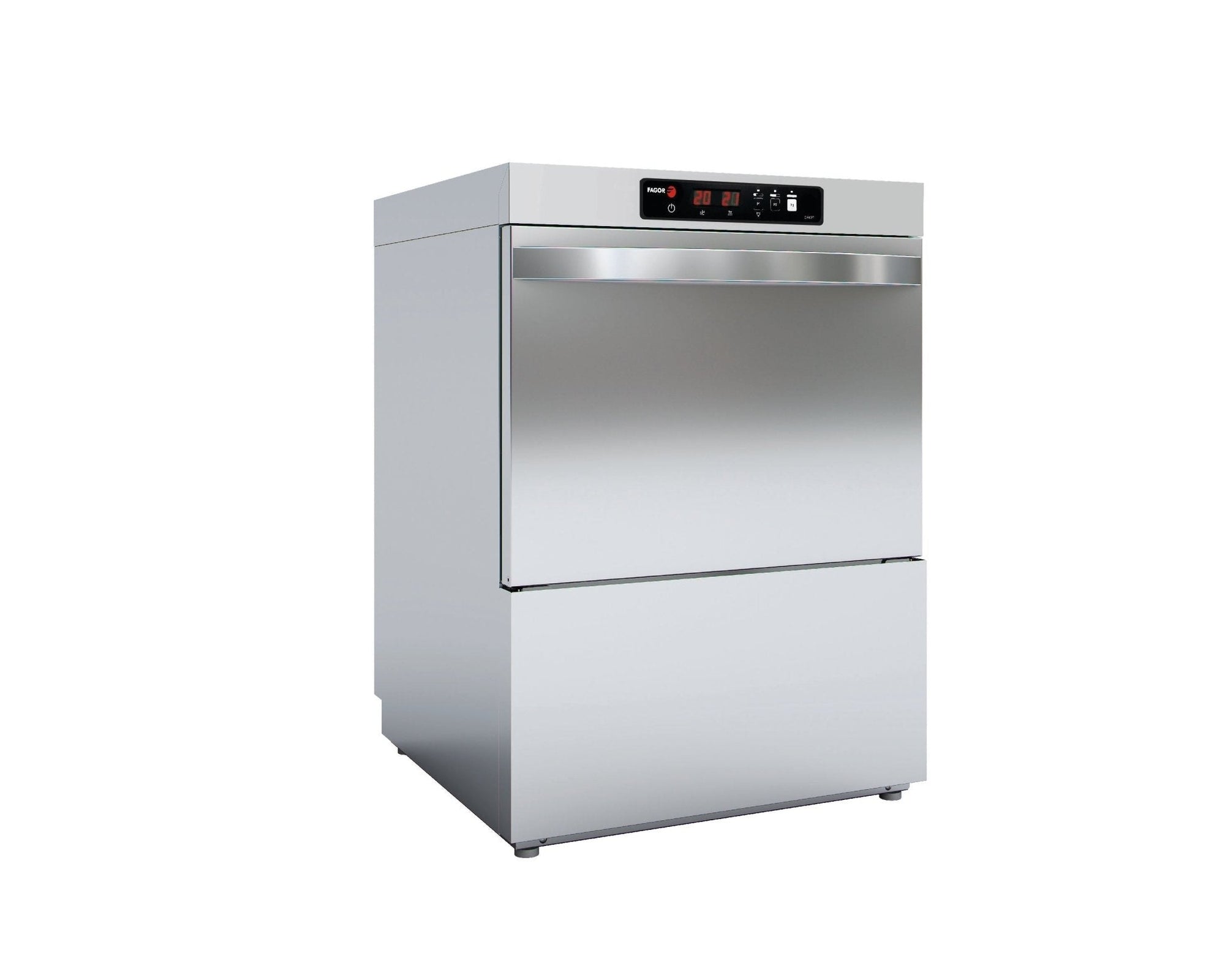

Fagor CO-502BDD EVO-CONCEPT Undercounter Dishwasher with Drain Pump

The Fagor CO-502BDD is a front-loading undercounter dishwasher from the EVO Generation Concept range, engineered for high-throughput warewashing in busy commercial kitchens. Built around the EFFI-SILENT double-wall door and body construction, the machine significantly reduces operational noise while retaining heat inside the cabinet. The EFFI-WASH hydraulic system with a 0.6 kW wash pump delivers a balanced, effective clean by optimising the Sinner circle principles across every cycle. Designed for practical undercounter installation, the CO-502BDD fits beneath surfaces as low as 850 mm and accepts full GN-1/1 trays with a maximum ware clearance of 380 mm.

Wash cycles are operator-selectable between 90 and 180 seconds, multipower boiler heating elements are available in four output ratings, and each rinse cycle draws a fixed 2.4 litres of water, making this an efficient and flexible choice for a range of venues. WaterMark approved and backed by a 2-year parts and labour warranty, the CO-502BDD arrives with a rinse aid dispenser and a detergent doser already installed, and is supplied complete with a dish rack, glass rack, and two cutlery containers.

Key Benefits

• Produces up to 40 baskets or 720 dishes per hour, keeping clean ware flowing consistently during peak service periods.
• EFFI-SILENT double-wall door and body construction dampens machine noise and retains heat, creating a more comfortable working environment.
• Each rinse cycle uses a fixed volume of 2.4 litres of water, reducing water and energy costs without compromising wash quality.
• Selectable 90 to 180 second wash cycles allow operators to balance speed and thoroughness depending on soil load.
• Four multipower boiler heating configurations let the machine be matched to the available electrical supply, providing installation flexibility across different venues.
• A rinse aid dispenser and detergent doser come pre-installed before leaving the factory, and a built-in non-return valve simplifies setup and protects the water supply.
• Recessed basket guides and a recessed wash tank, combined with AISI-304 stainless steel tank filters, make the interior straightforward to clean and maintain.
• Adjustable feet enable precise levelling on uneven floors, and the 3-position counterbalanced door with a double-spring stainless steel hinge system makes loading and unloading comfortable and safe.
• WaterMark approved and supported by a 2-year parts and labour warranty, giving operators confidence in compliance and long-term reliability.

Key Features

• Front-loading undercounter dishwasher from the EVO Generation Concept range (model CO-502BDD).
• EFFI-SILENT technology: full double-wall body and double-skin door with special pressed insulation material and stamped finish to isolate noise and retain heat.
• EFFI-WASH optimised hydraulic system with stainless steel wash arms and a single 0.6 kW (600 W) wash pump delivering an optimum Sinner circle wash balance.
• Upper and lower wash and rinse spray systems that rotate independently above and below the basket, constructed entirely from AISI-304 stainless steel.

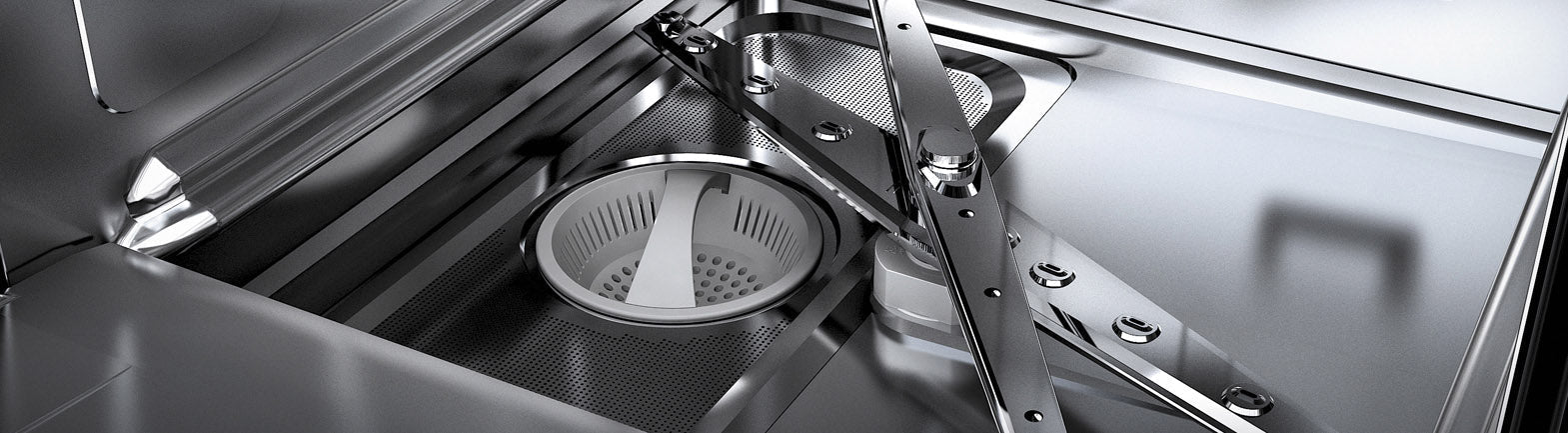

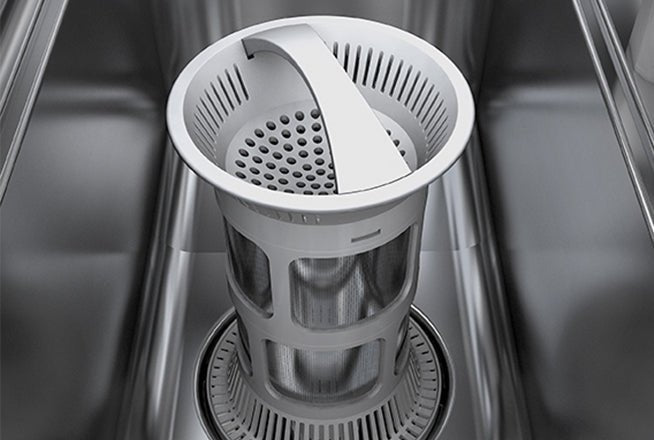

• AISI-304 stainless steel filters seated in the tank floor for straightforward removal and cleaning.
• Hourly production capacity: 40 baskets per hour or 720 dishes per hour.
• Maximum ware clearance: 380 mm.
• Compatible with GN-1/1 trays.
• 500 x 500 mm stainless steel basket.
• Wash cycles selectable between 90 and 180 seconds.
• Electromechanical control panel for straightforward day-to-day operation.
• Thermostatic temperature control: wash at 60°C and rinse at 90°C.
• Thermostop function and independent security thermostats for safe operation.
• Water consumption of precisely 2.4 litres for every rinse cycle at a mains pressure of 2 bar.
• Wash tank capacity: 20 litres with a 2.8 kW heating element.
• Boiler capacity: 7 litres; the boiler heating element is available in four selectable output levels: 1.8 kW, 2.8 kW, 3.7 kW, and 5.6 kW (15 Amp).
• Corresponding total multipower ratings across all configurations: 2.4 kW, 3.4 kW, 4.3 kW, and 6.2 kW.
• Drain pump: 30 W, with dedicated drainage cycle.
• Rinse aid dispenser factory-installed as standard.
• Detergent doser factory-installed as standard, also available separately as a kit.
• Built-in non-return valve to protect the water supply.
• Recessed basket guides and recessed wash tank for ease of cleaning.
• Adjustable feet for levelling on uneven floors.
• 3-position counterbalanced door with a double-spring stainless steel hinge system.
• Fits beneath surfaces as low as 850 mm.
• WaterMark approved.
• 2-year parts and labour warranty.
• Supplied with a dish rack, glass rack, and two cutlery containers.

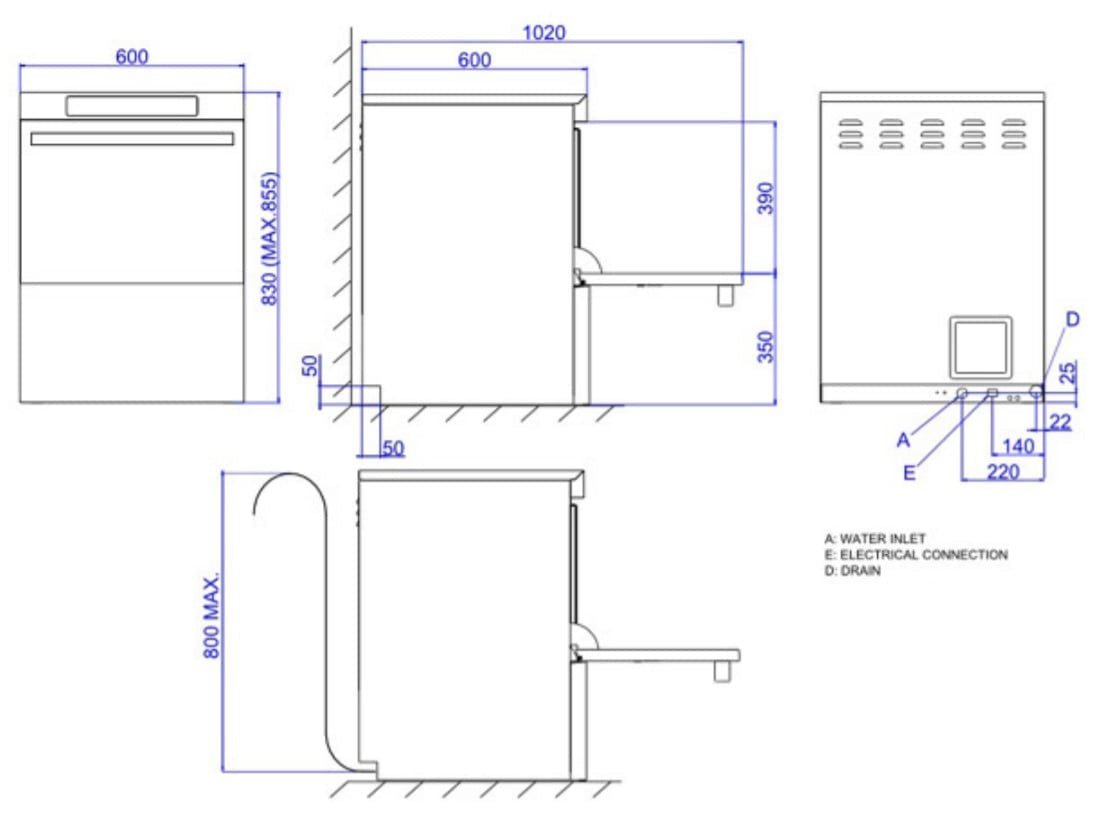

Specifications

• Width (mm): 600
• Depth (mm): 600
• Height (mm): 830
• Weight (kg): 126.5
• Packed Width (mm): 690
• Packed Depth (mm): 775
• Packed Height (mm): 1105
• Shipping Weight: 60
• Power Delivery: Multipower 2,4 / 3,4 / 4,3 / 22.32 MJ; 15Amp
• Power (kW): 24
• Warranty (months): 2 Years Parts and Labour
