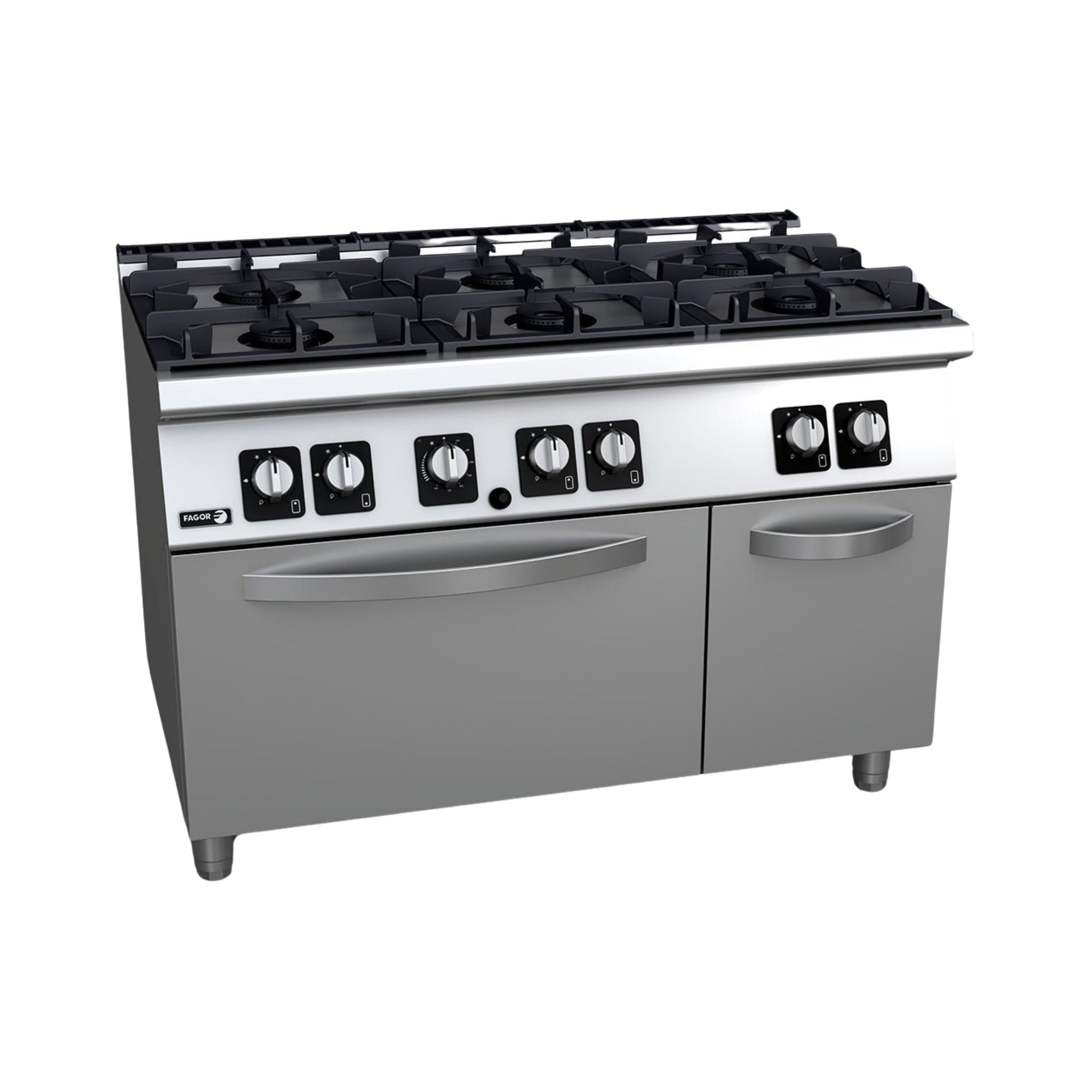

Fagor C-G761H Kore 700 Series 6 Burner Gas Range with Gas Oven

The Fagor C-G761H is a heavy-duty commercial gas range from the Kore 700 Series, combining six high-output burners with a GN 2/1 static gas oven in a 1200 mm wide unit designed for demanding professional kitchen environments. Built from AISI-304 stainless steel with laser-cut joints, automatic welding and hidden screws throughout, the range delivers the structural integrity and hygienic finish required for continuous high-volume service.

Every design detail on the C-G761H supports practical, efficient cooking. The double-crown nickel-plated cast iron burners distribute heat evenly across even the largest cookware, while RAAF enamelled cast iron grates resist the harshest kitchen conditions. Below the cooktop, the stainless steel oven chamber offers three rail height levels, sideways tray insertion and a cast iron floor for uniform baking and roasting performance across a temperature range of 125 to 310 °C.

Key Benefits

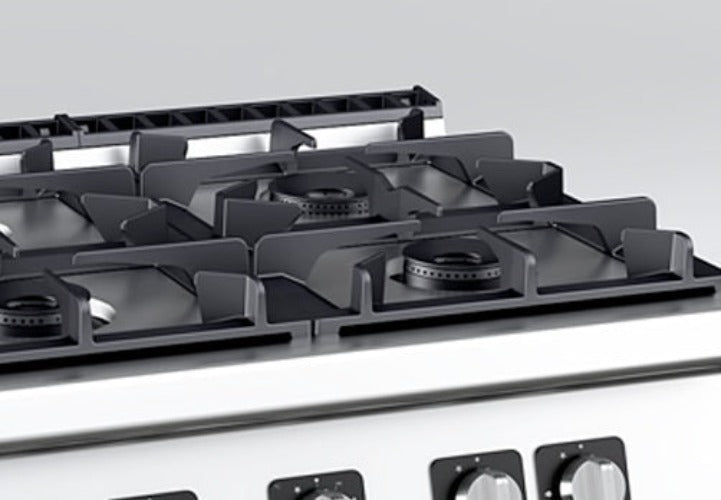

• Six powerful double-crown burners with nickel-plated cast iron diffusers ensure even heat distribution across the full base of large pans, eliminating hot spots and improving energy transfer to the product.
• RAAF enamelled cast iron grates resist alkaline and acid cleaning products, fire and high temperatures, extending service life in a busy kitchen with minimal maintenance.
• Reduced 75 mm spacing between central grate bars allows pots as small as 8 cm in diameter to sit stably, preventing smaller vessels from tipping and expanding menu flexibility.
• The GN 2/1 static gas oven with sideways tray insertion and three rail height levels provides versatile cooking configurations to handle a wide variety of baking and roasting tasks simultaneously.
• A cast iron oven floor and fibreglass closing seal combine to deliver uniform heat distribution and improved thermal efficiency, reducing energy use and achieving consistent results.
• Front-accessible components, flexible stainless steel internal gas pipes and a detachable oven door all reduce downtime during maintenance and make servicing faster and more straightforward.
• Controls are positioned on the upper panel for ergonomic access and feature a protective support base with a water infiltration prevention system, improving durability and operator safety.
• Stainless steel adjustable feet allow the unit to be levelled on uneven floors, supporting safe and stable operation in any kitchen layout.
• A comprehensive warranty of 2 years parts and labour plus 2 years parts only (for units registered within 14 days of invoice) provides long-term protection and peace of mind.

Key Features

• Deep-drawn surface tops constructed from 1.5 mm thick AISI-304 stainless steel for durability and hygiene.
• Laser-cut joints with automatic welding and hidden screws throughout for a clean, robust build.
• Six double-crown burners, each rated at 8.0 kW (Ø 120 mm), delivering a total cooktop output as part of the unit's overall power of 208.9 MJ/h (56.6 kW).
• Double-crown burner diffusers made from nickel-plated cast iron, promoting even heat distribution from flame to pan base and preventing localised heat build-up.
• Burners are easy to position and remove for cleaning or replacement.
• 397 x 580 mm double grates per pair (397 x 290 mm per individual burner), accommodating large pots and pans across the full cooktop surface.
• 75 mm reduced spacing between central grate bars supports cookware with a minimum diameter of 8 cm without risk of tipping.
• Grates manufactured from RAAF enamelled cast iron, resistant to alkaline and acid products, fire and sustained high temperatures.
• High-temperature enamelled cast iron flue protector, flush with the grates, improving maneuverability, supporting larger containers and maximising usable cooktop surface area.
• Low-consumption pilot light and thermocouple recessed within the burner body for enhanced protection against damage.
• Flexible stainless steel internal gas pipes to simplify component access and facilitate repairs.
• Controls on the upper panel with a protective support base and water infiltration prevention system for operator safety and longevity.
• All components accessible from the front of the unit for efficient servicing.
• Static gas oven with GN 2/1 capacity, controls positioned on the upper panel for ergonomic operation.
• Oven cooking chamber constructed entirely from stainless steel for straightforward cleaning and high hygiene standards.
• Tubular stainless steel oven burner with pilot light, thermocouple and piezoelectric ignition.
• Oven heating power of 8.60 kW.
• Thermostatic valve providing oven temperature control from 125 to 310 °C.
• Trays inserted sideways into the oven for improved maneuverability within the cooking chamber.
• Rails on three height levels inside the oven to accommodate different cooking configurations.
• Anti-tipping rail system prevents oven trays from overturning during use.
• Cast iron oven floor for enhanced heat retention and uniform distribution throughout the cooking chamber.
• Fibreglass closing seal on the oven door to maximise thermal efficiency and ensure long-term durability.
• Deep-drawn oven frame and inner door construction for a secure, tight closure.
• Detachable oven door to simplify access for maintenance and repairs.
• Stainless steel feet with adjustable height for stable, level installation.
• Optional frying plate accessory available for placement over burners.

Specifications

• Width (mm): 1200
• Depth (mm): 730
• Height (mm): 850
• Weight (kg): 160
• Packed Width (mm): 1240
• Packed Depth (mm): 822
• Packed Height (mm): 1255
• Shipping Weight: 138
• Power Delivery: 208.9mj/h; 56.6 kW
• Power (kW): 208.9
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
