Overview

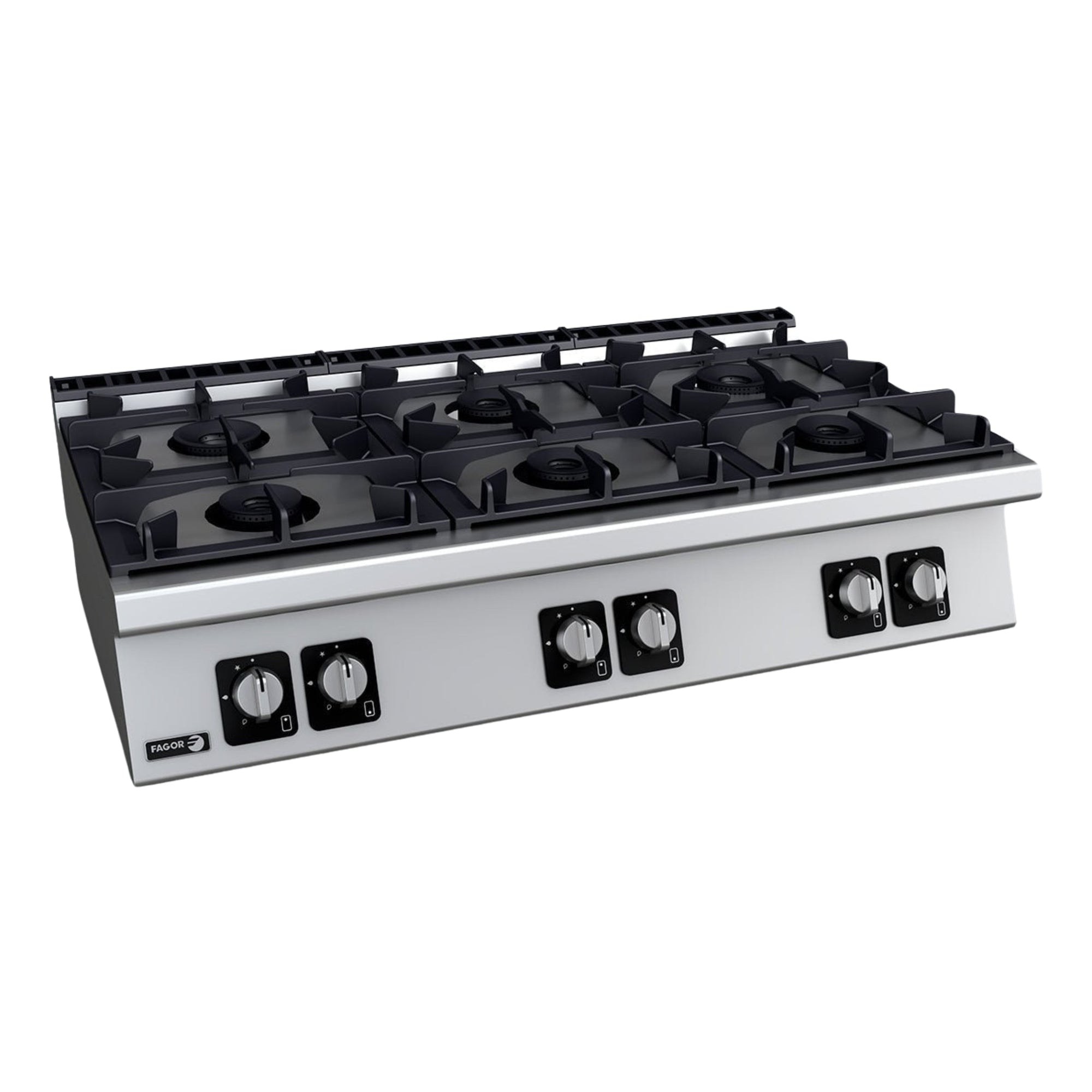

Fagor CG7-60H 700 Series Natural Gas 6 Burner Stainless Steel Boiling Top

The Fagor CG7-60H is a heavy-duty natural gas boiling top from the 700 Series, designed for high-volume commercial kitchens that demand consistent cooking power and durability. Constructed from austenitic AISI-304 stainless steel with laser-cut joints and automatic welding, it features six open burners delivering a total output of approximately 174 MJ/h (48.84 kW), with each burner rated at 6.9 kW. The tilted control panel provides easy front access to all controls, while built-in handles and integrated grease collection trays contribute to a practical, operator-friendly design.

The 700 Series platform is engineered for versatility and compatibility, supporting a wide range of cooking modules including ovens, fry-tops, hotplates, pasta cookers, barbecues, bain-maries, Bratt pans, fryers, and cooking pots that can be combined to suit specific kitchen requirements. Double-crown burners and diffusers made of nickel-plated cast iron ensure even heat distribution across the base of cookware, including large-diameter pots and pans, optimising energy transfer and preventing hotspots. Access to internal components is available from the front, simplifying servicing and routine maintenance.

Key Benefits

• Six independently controlled open burners allow simultaneous cooking of different dishes at varying temperatures, increasing kitchen throughput and flexibility.
• Even heat distribution from double-crown nickel-plated cast iron burners and diffusers prevents hotspots and optimises energy transfer to cookware of all sizes.
• RAAF-enamelled cast iron grates resist alkaline and acidic products, fire, and high temperatures, ensuring long-term durability under continuous commercial use.
• Reduced 75 mm spacing between central grate bars supports pots as small as 8 cm in diameter, preventing small cookware from tipping and broadening usable vessel range.
• Integrated grease collection trays under the grates simplify cleaning and reduce the risk of flare-ups during service.
• Thermocouples and safety valves on each burner provide automatic gas shut-off if a flame is extinguished, improving kitchen safety.
• Front access to all components reduces downtime during servicing without requiring the unit to be moved or disassembled from the rear.
• Flexible stainless steel internal gas pipes make repairs and internal manipulations more straightforward for technicians.
• Controls feature a protective support base with a water-infiltration prevention system, safeguarding against damage from spills and cleaning in a busy kitchen environment.

Key Features

• Constructed from austenitic AISI-304 stainless steel; deep-drawn surface tops manufactured in 1.5 mm thick sheet.
• Laser-cut joints and automatic welding for precision construction; hidden screws for a clean finish.
• Six open burners, each rated at 6.9 kW; total output 174 MJ/h (48.84 kW).
• Double-crown burners and diffusers made of nickel-plated cast iron for uniform heat distribution.
• RAAF-enamelled cast iron grates resistant to alkaline and acid products, fire, and high temperatures.
• Grid dimensions: 347 x 310 mm per burner position; double grates span 397 x 580 mm, accommodating large pots and pans.
• 75 mm reduced spacing between central grate bars supports cookware from 8 cm diameter upward.
• Safety valves and thermocouples on each burner for automatic gas cut-off if flame is lost.
• Low-consumption pilot lights for ignition; thermocouple located within the burner body for added protection.
• Integrated grease/fat collection tray beneath the grates for easy cleaning.
• Tilted control panel for improved front-of-unit access to buttons and controls.
• Built-in handles for safe handling and manoeuvring.
• High-temperature enamelled cast iron flue protector flush with the grates, increasing usable surface area and supporting larger containers.
• Controls fitted with a protective support base and water-infiltration prevention system.
• Flexible stainless steel internal gas pipes for easier access and repair.
• Front access to all internal components for simplified servicing.
• Compatible with the broader 700 Series modular lineup including ovens, fry-tops, hotplates, pasta cookers, barbecues, bain-maries, Bratt pans, and fryers.
• Optional frying plate available for placement over burners.
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when product is registered within 14 days of invoice.

Specifications

• Width (mm): 1050
• Depth (mm): 775
• Height (mm): 290
• Weight (kg): 100
• Packed Width (mm): 1200
• Packed Depth (mm): 845
• Packed Height (mm): 515
• Power Delivery: 175.82 MJ
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
