Overview

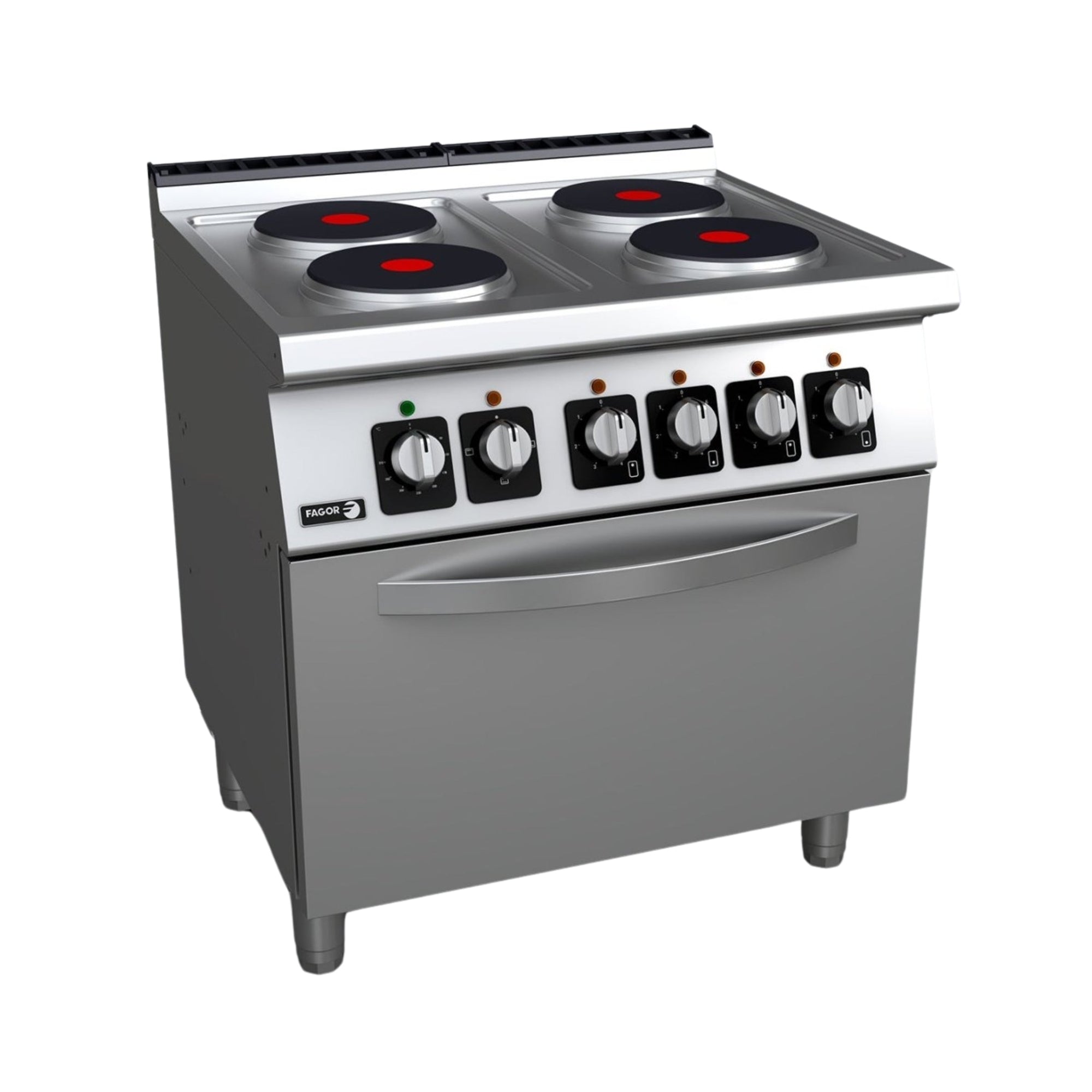

Fagor C-E741 Kore 700 Series Electric 4 Burner Cooktop with Static Oven

The Fagor C-E741 is a heavy-duty commercial range from the Kore 700 Series, combining four cast iron electric hot plates with a full-size GN 2/1 static electric oven in a single 800 mm wide unit. Constructed from 1.5 mm thick AISI-304 stainless steel with laser-cut joints and automatic welding, it is engineered for the demands of high-volume professional kitchens, offering IPX5 water protection and straightforward front-access servicing.

The integrated static oven features an all-stainless cooking chamber, a cast iron floor for uniform heat distribution, and a wide temperature range of 125 to 310°C, making it equally suited to baking, roasting and holding. Thoughtful design details throughout, from anti-tipping tray rails and a detachable door to a fibreglass thermal seal and adjustable stainless steel feet, reduce downtime and simplify both daily cleaning and ongoing maintenance.

Key Benefits

• Four independently controlled hot plates with 7-position power selectors and per-plate overheating protection give precise, reliable heat management across simultaneous cooking tasks.
• The GN 2/1 oven accommodates full gastronorm trays loaded sideways for easier manoeuvring in tight kitchen conditions, boosting throughput without sacrificing ergonomics.
• A cast iron oven floor and stainless steel heating elements with selectable upper and/or inner operation deliver consistent, uniform heat for reliable baking and roasting results.
• IPX5-rated water protection means the unit can withstand the rigorous wash-down routines typical of commercial kitchens without risk of damage to internal components.
• Rounded cooktop edges and a deep-drawn surface top with rounded corners contain spills and prevent liquid from entering the oven cavity, reducing cleaning time and hygiene risk.
• Front-access component layout simplifies routine servicing and repairs, minimising kitchen downtime and reducing the cost of callouts.
• A detachable oven door and fibreglass closing seal make deep cleaning straightforward while maintaining long-term thermal efficiency.
• Adjustable-height stainless steel feet allow the unit to be levelled precisely on uneven floors, ensuring stable operation and correct door alignment.
• A 2-year parts and labour warranty, extendable to a further 2 years parts only upon registration within 14 days of invoice, provides strong long-term cost-of-ownership assurance.

Key Features

• Surface tops manufactured from 1.5 mm thick AISI-304 stainless steel with rounded edges, preventing spilt liquids from entering the oven interior.
• Deep-drawn surface top with rounded corners for fast, thorough cleaning.
• Laser-cut joints with automatic welding and hidden screws for a smooth, hygienic exterior finish.
• Four round cast iron hot plates, each 223 mm in diameter and rated at 2.6 kW, hermetically fixed to the deep-drawn surface top.
• Seven-position power regulation selector on each hot plate for precise heat control.
• Individual overheating protection for each hot plate.
• High-temperature enamelled cast iron flue protector.
• IPX5 grade water protection across the entire unit.
• Front-access design for straightforward connection and servicing in compliance with health standards.
• GN 2/1 static electric oven with controls positioned on the upper panel for improved ergonomics.
• Oven cooking chamber constructed entirely of stainless steel for ease of cleaning and enhanced hygiene.
• Trays inserted sideways into the oven cavity to improve manoeuvrability during loading and unloading.
• Stainless steel heating elements with a selector switch for independent operation of upper and/or inner heating zones.
• Oven heating power of 6 kW.
• Thermostatic temperature control ranging from 125°C to 310°C.
• Three-level rail system inside the oven to accommodate different tray heights and cooking configurations.
• Anti-tipping rail system to prevent trays from overturning during insertion or removal.
• Cast iron oven floor for superior heat retention and uniform heat distribution.
• Fibreglass closing seal on the oven door to maximise thermal efficiency and ensure long-term durability.
• Deep-drawn oven frame and inner door for a secure, well-sealed oven closure.
• Detachable oven door to facilitate cleaning and simplify repairs.
• Adjustable-height stainless steel feet for stable, level installation.
• Operates on 415V three-phase power (3~N) with a total connected load of 16.4 kW.
• 2-year parts and labour warranty plus an additional 2-year parts only warranty when the product is registered within 14 days of invoice.

Specifications

• Width (mm): 800
• Depth (mm): 730
• Height (mm): 850
• Weight (kg): 108
• Packed Width (mm): 840
• Packed Depth (mm): 822
• Packed Height (mm): 1255
• Shipping Weight: 90
• Power Delivery: 415V, 16.4kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
