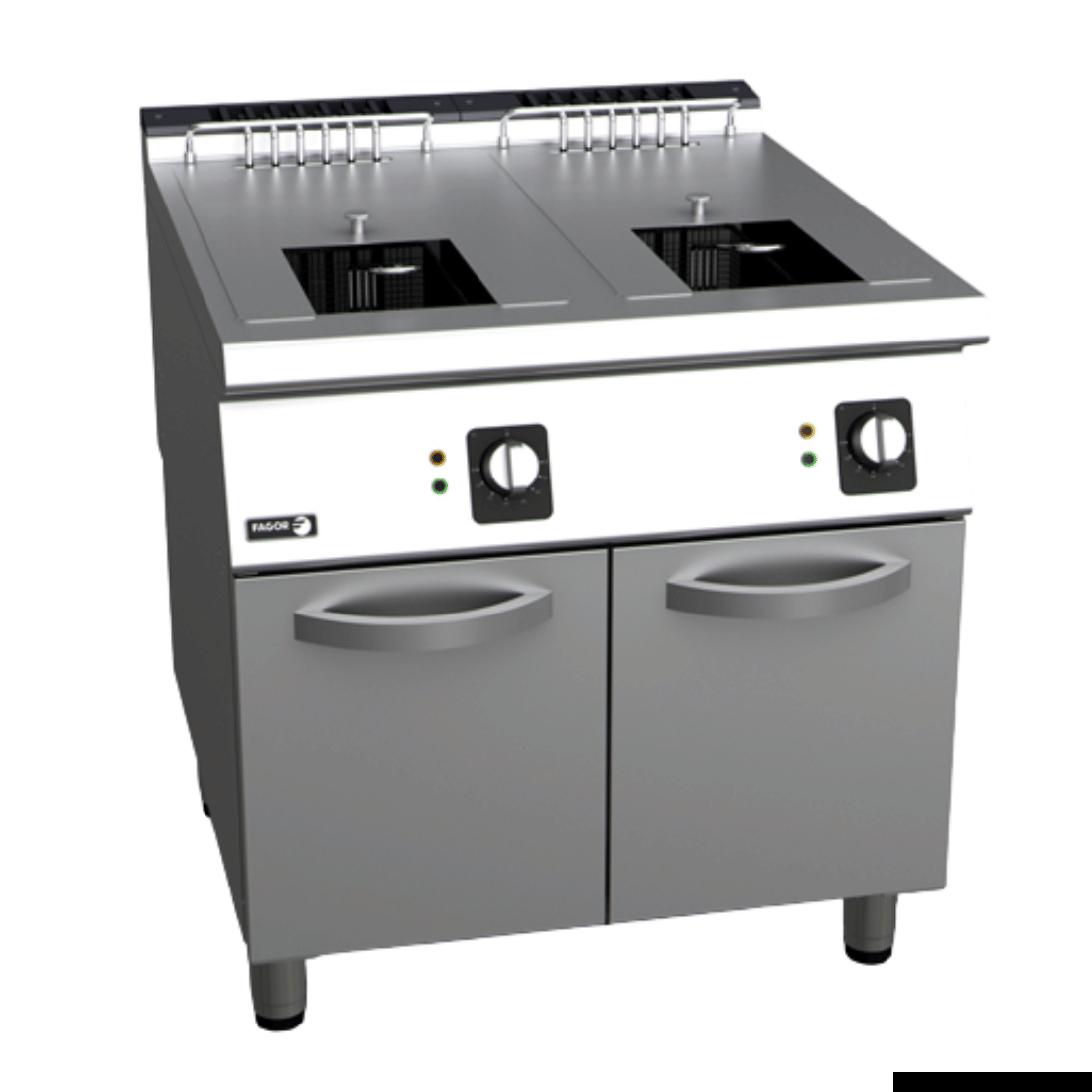

Fagor F-E9221 Kore 900 Electric Fryer with 2x21L Tank and 4 Baskets

The Fagor F-E9221 is a heavy-duty floor-standing electric fryer from the Kore 900 series, designed to meet the high-volume demands of busy commercial kitchens. With two independent 21-litre wells and four baskets, it delivers a combined 42 litres of frying capacity, backed by 36kW of power on a 415V three-phase connection for rapid heat-up and outstanding recovery times between batches.

Built to exacting commercial standards, the F-E9221 features 2mm thick AISI-304 stainless steel construction throughout, robotised welds, laser-cut joints and IPX5-rated water protection for straightforward cleaning and long service life. A cold zone at the base of each well protects oil quality and extends oil life, while swivelling heating elements, front-access components and individual well lids make daily operation and maintenance practical and efficient.

Key Benefits

• Twin 21-litre wells with four baskets allow simultaneous frying of different products, increasing throughput and menu flexibility during peak service.
• High-power 36kW output delivers fast heat-up and rapid temperature recovery between loads, keeping output consistent when demand is at its highest.
• The cold zone at the base of each well traps food debris away from the active frying area, slowing oil degradation and reducing oil consumption costs.
• AISI-304 stainless steel heating elements swivel more than 90 degrees, giving unobstructed access to the full interior of the well for thorough, time-saving cleaning.
• Individual lids for each well retain heat when a tank is idle, improving energy efficiency and protecting oil quality during quieter periods.
• A high-temperature-resistant ball valve on each well allows safe, controlled oil drainage without the need for additional equipment or excessive downtime.
• IPX5-rated water protection means the unit can be cleaned down with a hose or pressure water, streamlining end-of-service cleaning routines.
• Thermostatic temperature control adjustable between 60 and 200°C, combined with a safety thermostat on every model, ensures precise frying results and an added layer of protection against overheating.
• All components are accessible from the front of the unit, simplifying routine servicing and reducing the space required for maintenance.

Key Features

• Dual independent frying wells, each with 21-litre capacity, supplied with four baskets
• Surface tops constructed from 2mm thick AISI-304 stainless steel
• Laser-cut joints with automatic welding and polished finish; all screws hidden from view for a clean aesthetic
• Tank stamped directly into the surface top using robotised welding and polishing for a seamless, hygienic construction
• Cold zone in the lower portion of each well to collect food particles away from the frying area, preserving oil quality and extending oil life
• AISI-304 stainless steel heating elements positioned inside each well, swivelling more than 90 degrees for thorough cleaning access
• Thermostatic temperature control with a range of 60-200°C
• Safety thermostat fitted as standard on every model
• High-temperature-resistant ball valve on each well for reliable, safe oil unloading
• Individual lid supplied for each well
• High-temperature enamelled cast iron flue protector
• IPX5 grade water protection rating
• Front-access design for straightforward component servicing
• Power supply: 415V, 36kW, three-phase (3~N)
• 2-year parts and labour warranty plus a further 2-year parts-only warranty when the product is registered within 14 days of invoice

Specifications

• Width (mm): 800
• Depth (mm): 930
• Height (mm): 850
• Weight (kg): 160
• Packed Width (mm): 1022
• Packed Depth (mm): 840
• Packed Height (mm): 1255
• Power Delivery: 415V, 36kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
