Overview

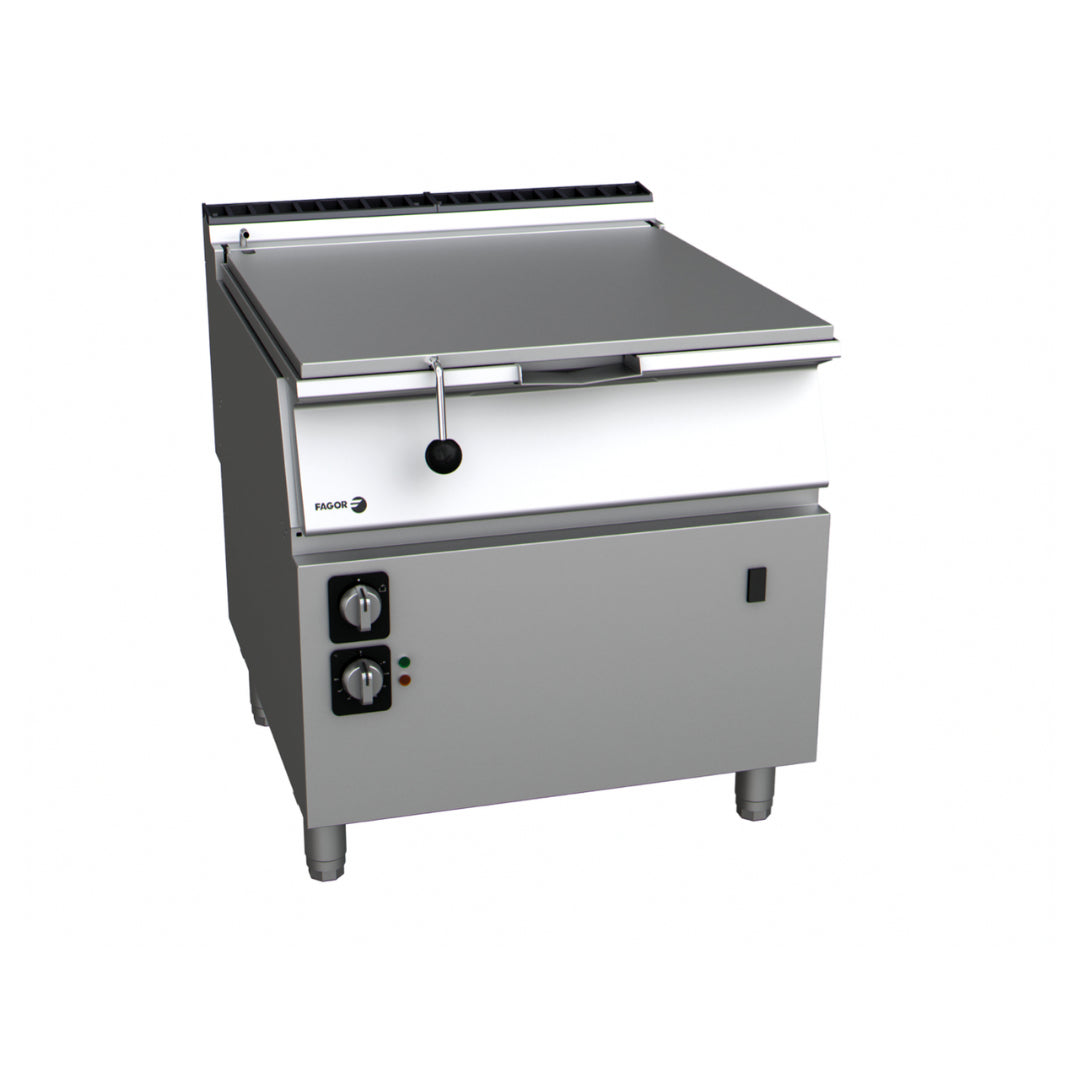

Fagor SB-G910IM Kore 900 Series Gas Tilting Bratt Pan

The Fagor SB-G910IM is a natural gas tilting bratt pan from the Kore 900 Series, purpose-built for medium to large commercial kitchens. With a generous 90-litre stainless steel tank and motorised tilting action, it handles the full spectrum of cooking techniques including boiling, steaming, stewing, simmering, roasting, poaching, braising, shallow frying, and deep frying, making it one of the most versatile pieces of equipment a professional kitchen can invest in.

Engineered for durability and ease of use, the SB-G910IM features laser-cut joints, automatic welding, and a polished finish with concealed screws for a clean, hygienic appearance. An extra-thick pan base ensures uniform heat distribution, while thoughtful design details such as rounded corners, a perimeter flange, a spring-balanced double-walled lid, and IPX5-rated water protection all contribute to safer, more efficient daily operation.

Key Benefits

• Handles nine distinct cooking methods in a single unit, reducing equipment footprint and capital expenditure in busy kitchens.
• Motorised pan elevation raises the vessel to a fully vertical position for effortless, controlled emptying with minimal manual effort.
• Extra-thick pan base combined with branched gas burners located directly beneath the pan delivers highly uniform heat across the entire cooking surface, reducing hotspots and improving batch consistency.
• Thermostat-controlled temperature range of 50 to 310 °C gives chefs precise control across delicate poaching and high-heat searing applications alike.
• Front-accessible electric valve water filling and front-accessible components mean staff can operate and service the unit without moving it, saving time during busy service periods.
• IPX5 water protection rating allows confident washdown cleaning without risk of damage to electrical components.
• Spring-compensated lid balance system prevents sudden heavy falls, protecting both staff and the equipment during daily use.
• Micro-breaking switch automatically halts heating whenever the pan is raised, preventing energy waste and reducing burn risk during emptying.
• Concealed screws, rounded interior corners, and a perimeter condensation flange simplify cleaning and support compliance with food hygiene standards.

Key Features

• Natural gas tilting bratt pan, 50 Hz, motorised, with a 90-litre stainless steel tank; part of the Fagor Kore 900 Series.
• Stainless steel pan construction with an extra-thick base (10 mm for stainless steel models) for superior heat retention and even distribution.
• Branched gas burners positioned directly in the base of the pan ensure maximum temperature uniformity across the entire cooking surface.
• Thermostat controls pan base temperature between 50 °C and 310 °C.
• Motorised elevation system raises the pan to a fully vertical position for complete emptying; crank-operated elevation also available across the range.
• Micro-breaking switch cuts heating automatically when the pan is raised.
• Double-walled lid with a rear drainer that redirects condensation back into the well rather than onto the floor or worksurface.
• Spring-based lid balance system with adjustable compensation to prevent heavy falls; consistent mechanism across all modules in the range.
• Front-mounted lid handle for safe and convenient operation.
• Perimeter flange around the pan rim prevents condensed water from spilling over the edge during cooking.
• Pan filled via an electrically operated valve controlled by a front-panel switch; filling pipe located at the rear of the unit.
• Rounded interior corners and no sharp edges throughout the pan interior, combined with a wide unloading opening, make both cooking and cleaning straightforward.
• Laser-cut joints and automatic welding throughout; all screws are hidden from view for a clean, hygienic finish.
• High-temperature enamelled cast iron flue protector.
• All components accessible from the front of the unit for easier servicing and maintenance.
• IPX5 grade water protection rating.
• Backed by a 2-year parts and labour warranty plus a further 2-year parts-only warranty for products registered within 14 days of invoice.

Specifications

• Width (mm): 800
• Depth (mm): 930
• Height (mm): 850
• Weight (kg): 235
• Gas Type: Natural Gas
• Packed Width (mm): 840
• Packed Depth (mm): 1022
• Packed Height (mm): 1255
• Shipping Weight: 211
• Power Delivery: 230V - 1N; 0.7A; 50Hz
• Power (kW): 230
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
