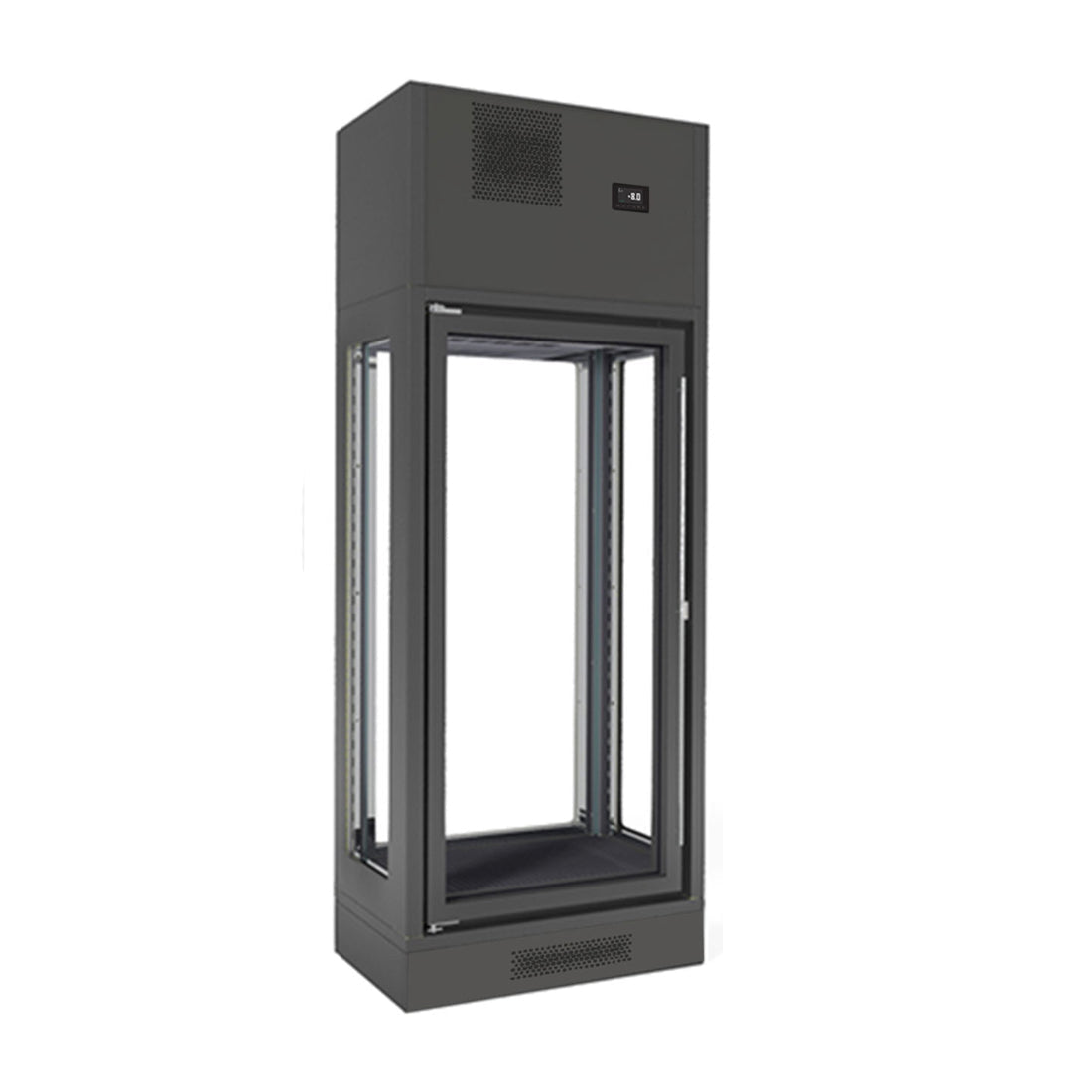

Fagor FWC-2301-1CB Single Zone 1 Door Black Central Wine Cellar

The Fagor FWC-2301-1CB is a full-height, single-zone wine cellar designed to display and preserve your wine collection in a commercial hospitality environment. With a capacity of 63 bottles across nine shelves, a temperature range of 4°C to 18°C, and an ambient operating tolerance of up to 40°C, this unit is engineered to perform reliably on the floor of a busy restaurant, bar or venue. The sleek black Colorbond body and perimeter LED lighting make it as much a display piece as a functional storage solution.

Fagor has loaded the FWC-2301-1CB with features that protect wine quality over the long term, including double-layered glass walls with an insulating air chamber, heated door frames and glass panels to eliminate condensation, and an independent digital thermostat for precise temperature management. Automatic defrost with a self-evaporating drain tray means there is no plumbing connection required, keeping installation straightforward. A decorative plinth is included as standard, and the unit is backed by Fagor's commercial warranty when registered within 14 days of invoice.

Key Benefits

• Precise single-zone temperature control between 4°C and 18°C protects wine quality and suits a wide range of varietals from sparkling to full-bodied reds.
• Double-layered glass walls with an air chamber provide superior insulation, reducing temperature fluctuation and energy consumption during service.
• Heated glass panels and door frames actively prevent condensation build-up, keeping bottles visible and the unit looking professional on the floor.
• Optional humidity control creates an ideal conservation environment, preventing corks from drying out and wine from oxidising prematurely.
• Perimeter LED lighting is adjustable via remote control, allowing you to set the right ambience for your venue without disrupting cellar temperature.
• Self-evaporating defrost tray eliminates the need for a floor drain connection, simplifying installation and reducing maintenance obligations.
• Swing doors are designed to optimise spatial efficiency, making the unit practical even in tighter floor layouts.
• The decorative plinth is included as standard, giving the unit a finished, premium appearance straight out of the box.
• Registered units are covered by a 2-year parts and labour warranty followed by a further 2-year parts-only warranty, providing strong long-term protection for a high-value asset.

Key Features

• Single-zone configuration with one hinged swing door
• Bottle capacity: 7 bottles per shelf across 9 shelves (63 bottles total)
• Temperature range: 4°C to 18°C
• Rated for ambient operating temperatures up to 40°C at 40% relative humidity
• Side and central walls constructed with double-layered glass and an insulating air chamber between panes
• Heated glass panels and door frames to prevent condensation
• Independent digital thermostat for precise temperature management
• Ventilated refrigeration system for even, consistent cooling throughout the cabinet
• Optional humidity control module for enhanced wine conservation
• Automatic defrost with a water collection tray and self-evaporating system; no drain connection required
• LED lighting installed across all perimeters, adjustable via remote control
• Decorative plinth included as standard; shelves and hooks available as separate requests
• Black Colorbond body construction
• Fixed installation on legs; no castors
• 240V / 10A single-phase power supply
• Warranty: 2 years parts and labour plus 2 years parts only, valid when the product is registered within 14 days of invoice date

Specifications

• Width (mm): 862
• Depth (mm): 632
• Height (mm): 2300
• Weight (kg): 539.75
• Packed Width (mm): 800
• Packed Depth (mm): 2685
• Packed Height (mm): 1005
• No. of Doors: 1
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Defrost Type: Auto
• Power Delivery: 240V; 1.33W; 10A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
