Overview

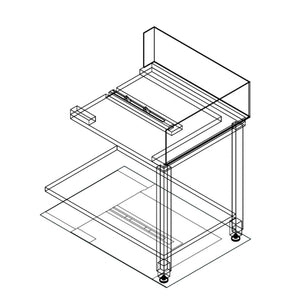

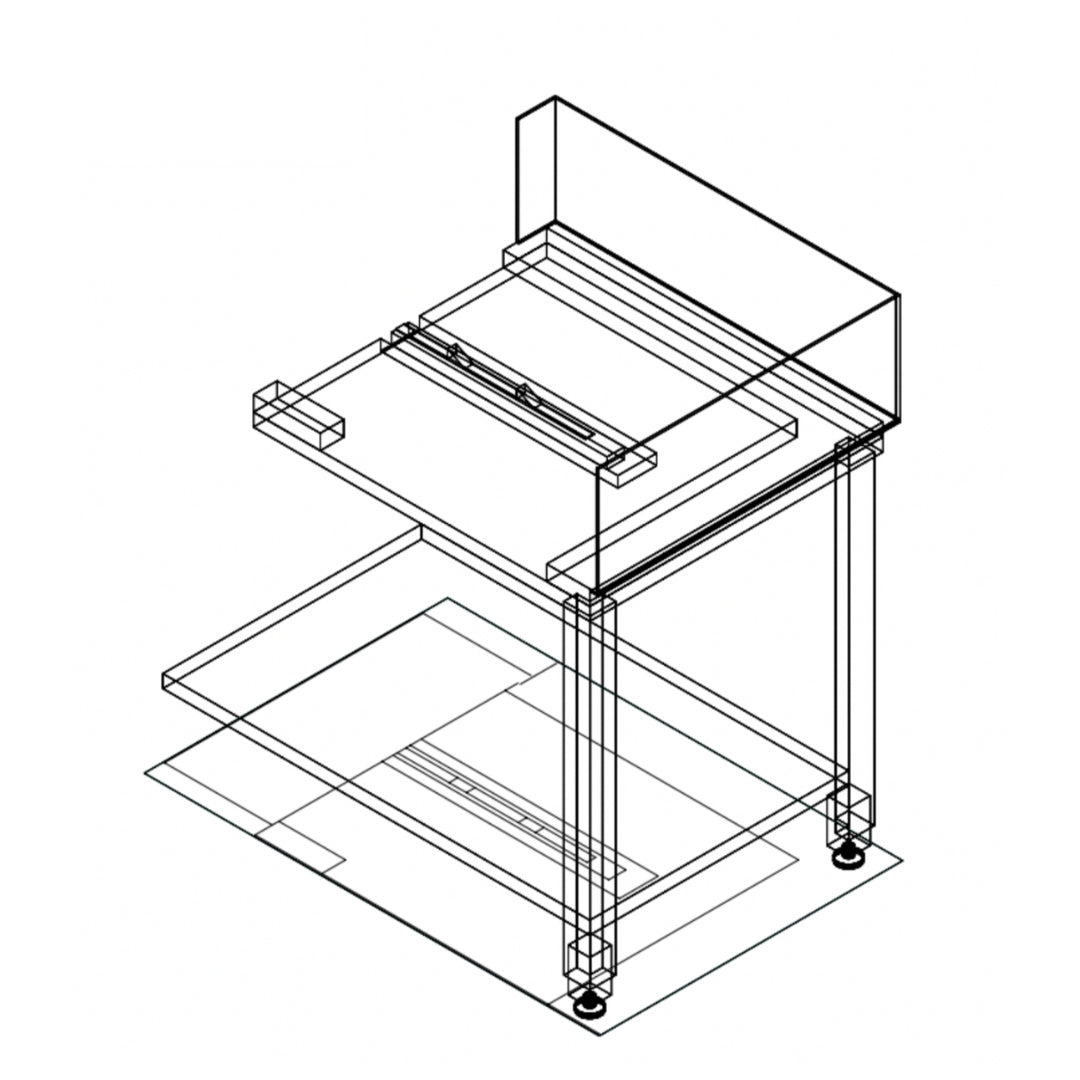

Fagor E-90D Stainless Steel Corner Bench with Right-Side Basket Introduction

The Fagor E-90D is a purpose-built stainless steel corner bench designed to integrate seamlessly with conveyor dishwashers in medium to large commercial kitchens. Configured for right-side basket introduction at a 90-degree angle, it feeds 500mm x 500mm dishwashing baskets automatically into the dishwasher's drag mechanism, streamlining warewashing throughput and reducing manual handling during busy service periods.

Constructed from AISI-304 (18/10) stainless steel throughout, the E-90D is built for durability and hygiene in demanding foodservice environments. Its anti-splash entry, deep anti-drip profiles, hole-free surface and lower storage shelf make it a practical, easy-to-clean addition to any dishwashing line, with quick installation and straightforward connection to the dishwasher.

Key Benefits

• Automatic basket advancement via the dishwasher's own drag mechanism reduces manual labour and keeps the warewashing line moving efficiently during peak service.
• Right-side 90-degree corner configuration maximises use of available kitchen space while maintaining a logical, ergonomic workflow for kitchen staff.
• Anti-splash guard at the basket entry point minimises water spray and mess around the loading area, contributing to a safer and cleaner work environment.
• Hole-free surface prevents food debris and water from collecting, making routine cleaning faster and more thorough.
• Deep anti-drip profiles with fully folded lower edges contain runoff and simplify cleaning, reducing the risk of slips and cross-contamination.
• Adjustable tubular legs allow the bench height to be fine-tuned to suit different dishwasher models and kitchen floor conditions.
• Integrated lower shelf provides convenient storage for spare baskets or cleaning supplies, making better use of the space beneath the bench.
• Quick installation and easy dishwasher connection minimise downtime during kitchen fit-out or equipment upgrades.
• Compatible with a wide range of entry, exit and prewashing tables, allowing flexible configuration of the full dishwashing line.

Key Features

• Right-side 90-degree basket introduction with anti-splash guard at the entry point.
• Advancement conveyor system introduces baskets automatically into the dishwasher.
• Coupling element angles the bench to the dishwasher inlet so baskets are inserted automatically by the drag mechanism.
• Drag nails activated directly by the dishwasher's own drag mechanism, requiring no separate drive.
• Designed to accommodate standard 500mm x 500mm dishwashing baskets.
• Manufactured from AISI-304 (18/10) stainless steel throughout for durability and corrosion resistance.
• 40mm x 40mm square tubular legs in AISI-304 stainless steel with adjustable feet for levelling.
• Deep anti-drip profiles completely folded with a lower edge for safe, easy cleaning.
• Hole-free work surface prevents water and debris accumulation.
• Supplied with a lower shelf for additional storage.
• Compatible with a wide range of Fagor entry, exit and prewashing tables for full conveyor line configuration.
• Quick installation with straightforward connection to the dishwasher.
• Backed by a 2-year parts and labour warranty.

Specifications

• Width (mm): 790
• Depth (mm): 690
• Height (mm): 850
• Weight (kg): 63
• Packed Width (mm): 2150
• Packed Depth (mm): 1465
• Packed Height (mm): 800
• Warranty (months): 2 Years Parts and Labour
