Overview

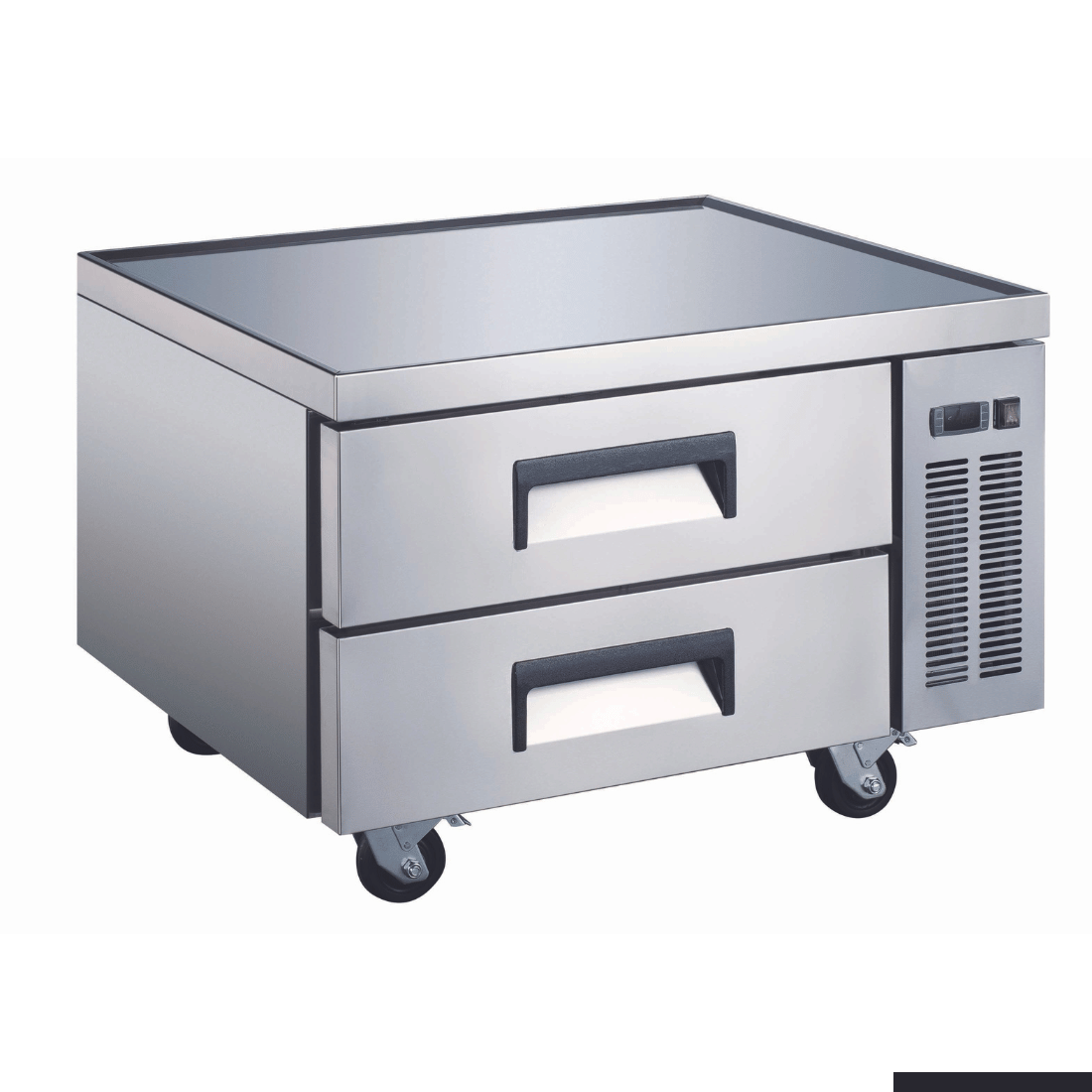

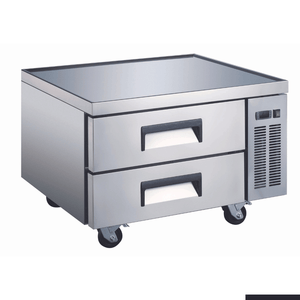

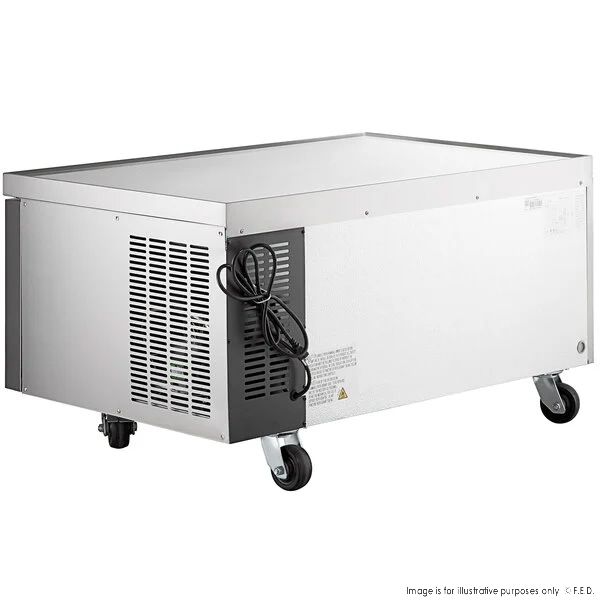

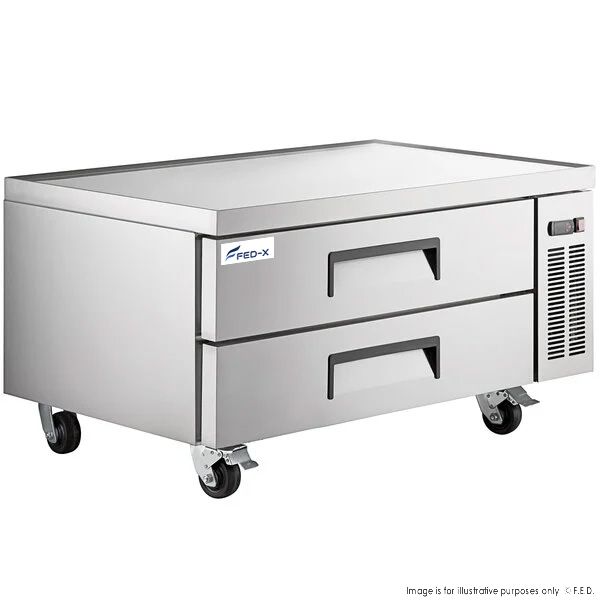

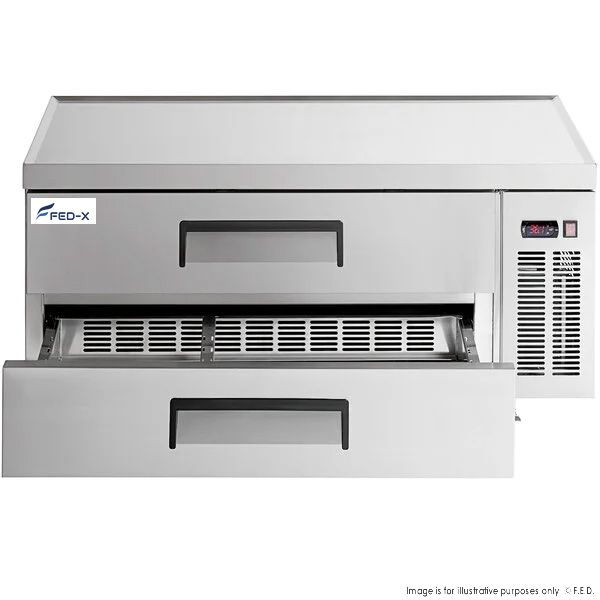

FED-X XCB-48 Chef Base Refrigerated Drawer Bench 263L

The FED-X XCB-48 is a 263-litre refrigerated chef base designed to sit directly beneath countertop cooking equipment, keeping cold ingredients right at the cook's fingertips during service. Tropicalised for Australian conditions and rated to operate in ambient temperatures up to 32°C at 65% relative humidity, this unit is purpose-built for the demands of busy commercial kitchens, restaurants, cafes, hotels and catering venues.

Constructed with a full stainless steel interior and exterior, the XCB-48 features a reinforced raised-edge top capable of supporting heavy cooking equipment such as griddles, chargrills or fryers. Two gastronomy-pan-compatible refrigerated drawers with removable magnetic gaskets and Austrian Fulterer drawer runners provide smooth, reliable access to chilled ingredients, while fan-forced evaporator cooling and 60mm HFC- and CFC-free foam insulation ensure consistent, even refrigeration throughout service.

Key Benefits

• Positions cold storage directly under the cook's station, reducing movement and keeping ingredients within arm's reach for faster, more efficient service.
• Reinforced stainless steel top doubles as a heavy-duty prep surface or a stable platform for countertop cooking equipment, maximising use of limited kitchen floor space.
• Fan-forced evaporator cooling delivers rapid temperature recovery and even refrigeration, protecting ingredient freshness and food safety throughout a busy shift.
• Tropicalised design and 32°C/65%RH ambient rating ensure reliable performance in the hot, humid conditions typical of Australian commercial kitchens.
• Austrian Fulterer drawer runners provide smooth, consistent drawer operation under heavy daily use, reducing wear and maintenance requirements over time.
• Removable magnetic drawer gaskets simplify cleaning and maintenance, helping kitchens maintain hygiene standards with minimal downtime.
• Heavy-duty castors with front-wheel brakes allow easy repositioning for cleaning or reconfiguration, while keeping the unit securely in place during service.
• GN-pan-compatible drawers support efficient organisation of prepped ingredients, streamlining mise en place and speeding up plating on the line.
• Registered warranty of 2 years parts and labour plus an additional 2 years parts only provides long-term peace of mind for commercial operators.

Key Features

• 263-litre gross capacity across two refrigerated drawers
• Temperature range of -1°C to +5°C with a maximum ambient operating condition of 32°C at 65% relative humidity
• Tropicalised refrigeration system engineered for Australian climate conditions
• Fan-forced evaporator cooling with rapid temperature recovery rate
• Full stainless steel interior and exterior construction with rounded internal corners for easy cleaning
• 60mm HFC- and CFC-free foam body insulation for energy-efficient thermal retention
• Raised-edge stainless steel top designed to support heavy countertop cooking equipment
• Two drawers compatible with gastronomy (GN) pans in various configurations (GN pans sold separately)
• Austrian Fulterer drawer runners for smooth, durable and reliable drawer operation
• Removable magnetic drawer gaskets on each drawer for straightforward cleaning and maintenance
• User-friendly digital controls for precise temperature management
• Automatic defrost function for low-maintenance operation
• Heavy-duty castors with front-wheel brakes for mobility and stability
• 240V / 396W / 10A power supply
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when the product is registered within 14 days of invoice

Specifications

• Width (mm): 1228
• Depth (mm): 816
• Height (mm): 655
• Weight (kg): 102
• Packed Width (mm): 1294
• Packed Depth (mm): 886
• Packed Height (mm): 725
• Shipping Weight: 92
• No. of Doors: 2
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Drawers: 2
• Cooling Type: Fan Forced
• Power Delivery: 240V, 396W/10A
• Power (kW): 240
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
