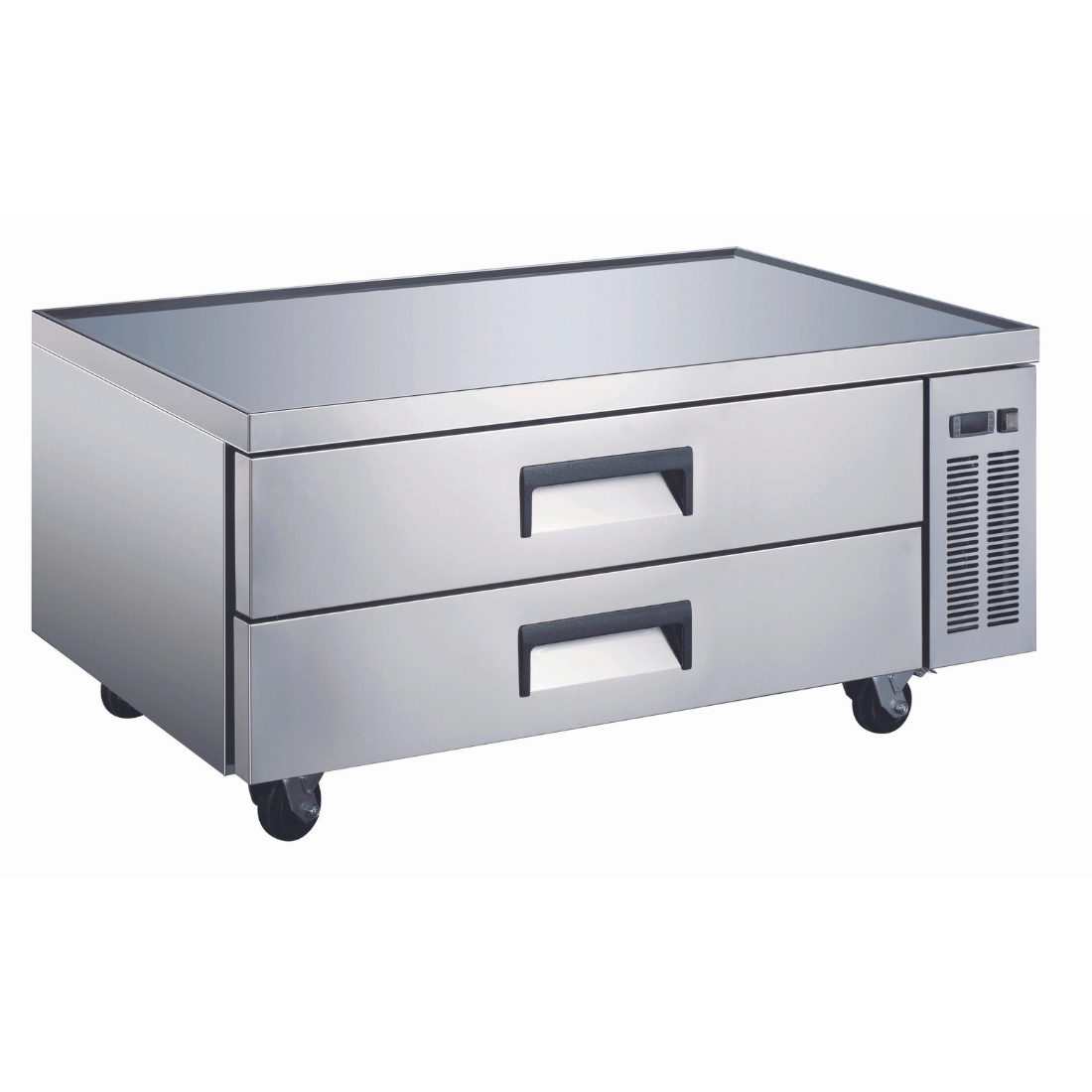

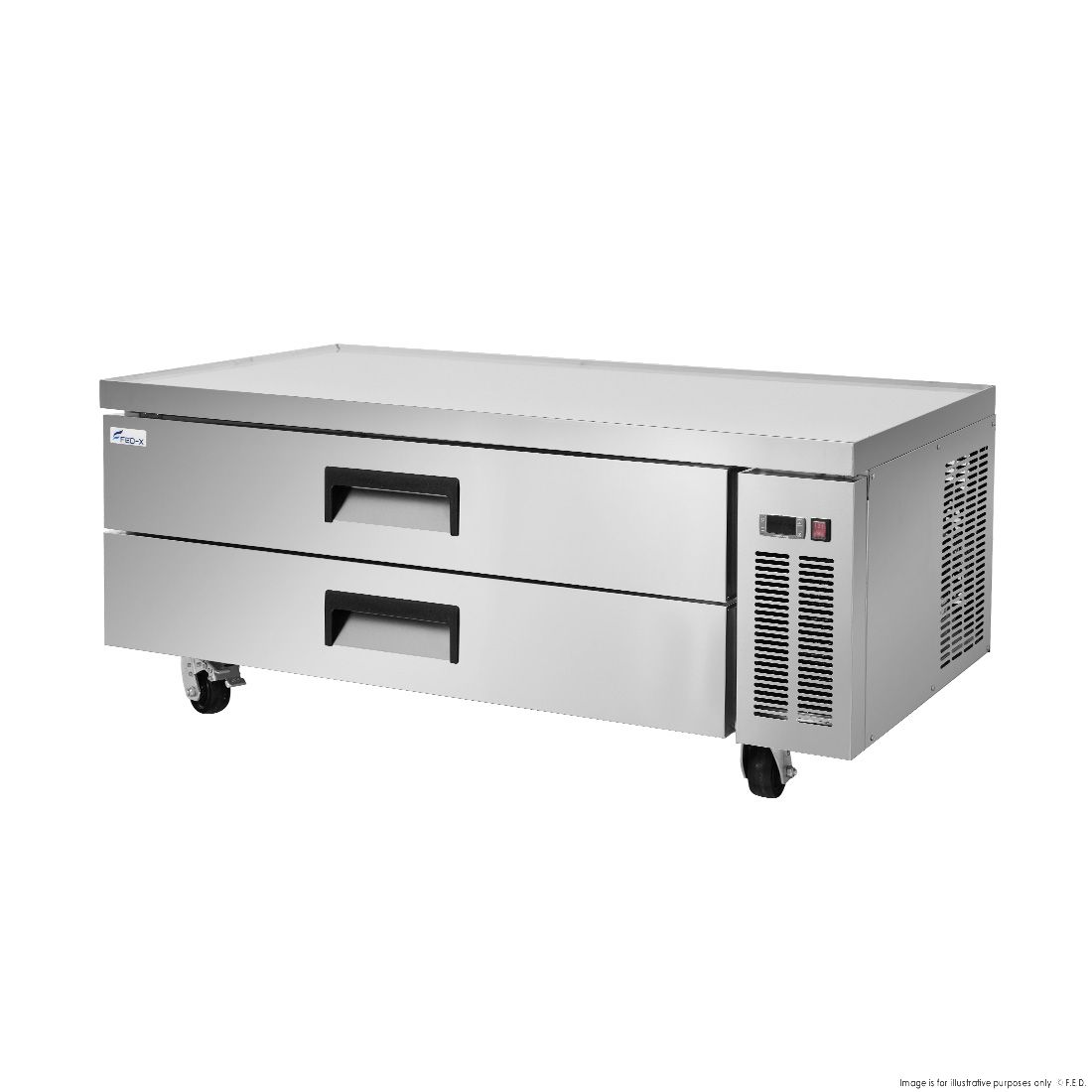

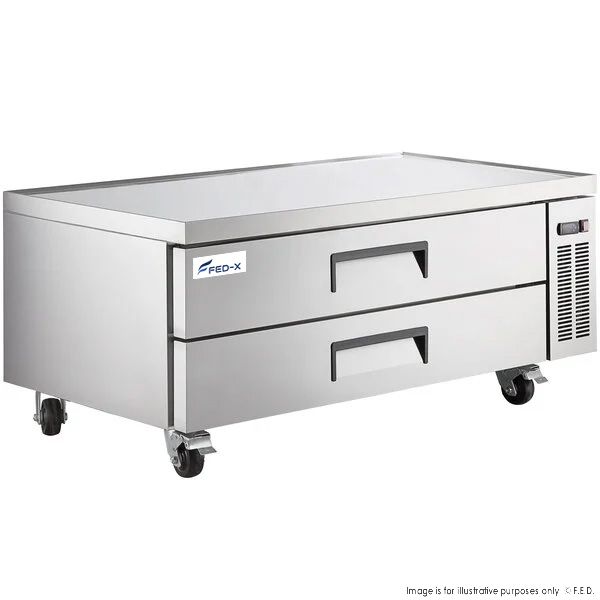

FED-X XCB-60 Chef Base Refrigerated Drawer Bench 360L

The FED-X XCB-60 is a 360-litre refrigerated chef base designed to sit beneath cooking equipment such as griddles, fryers and chargrills, placing chilled ingredients directly at the cook's fingertips during service. Specifically engineered to support Gaxmax cooking equipment, it combines a heavy-duty stainless steel bench top with two GN pan-compatible refrigerated drawers, consolidating cold storage and a work surface into a single space-efficient unit suited to restaurants, cafes, hotels and catering operations.

Built to handle the demands of Australian commercial kitchens, the XCB-60 is tropicalised for operation in ambient conditions up to 32°C at 65% relative humidity. Its environmentally responsible HFC and CFC-free foam insulation, fan-forced evaporator cooling, rapid temperature recovery and user-friendly digital controls ensure consistent food-safe temperatures are maintained throughout even the busiest service periods.

Key Benefits

• Two large refrigerated drawers deliver immediate access to cold ingredients without ever leaving the cooking station, reducing steps and improving service speed.
• GN pan-compatible drawer interiors allow standardised gastronomy pans to slot straight in, streamlining ingredient organisation and batch prep.

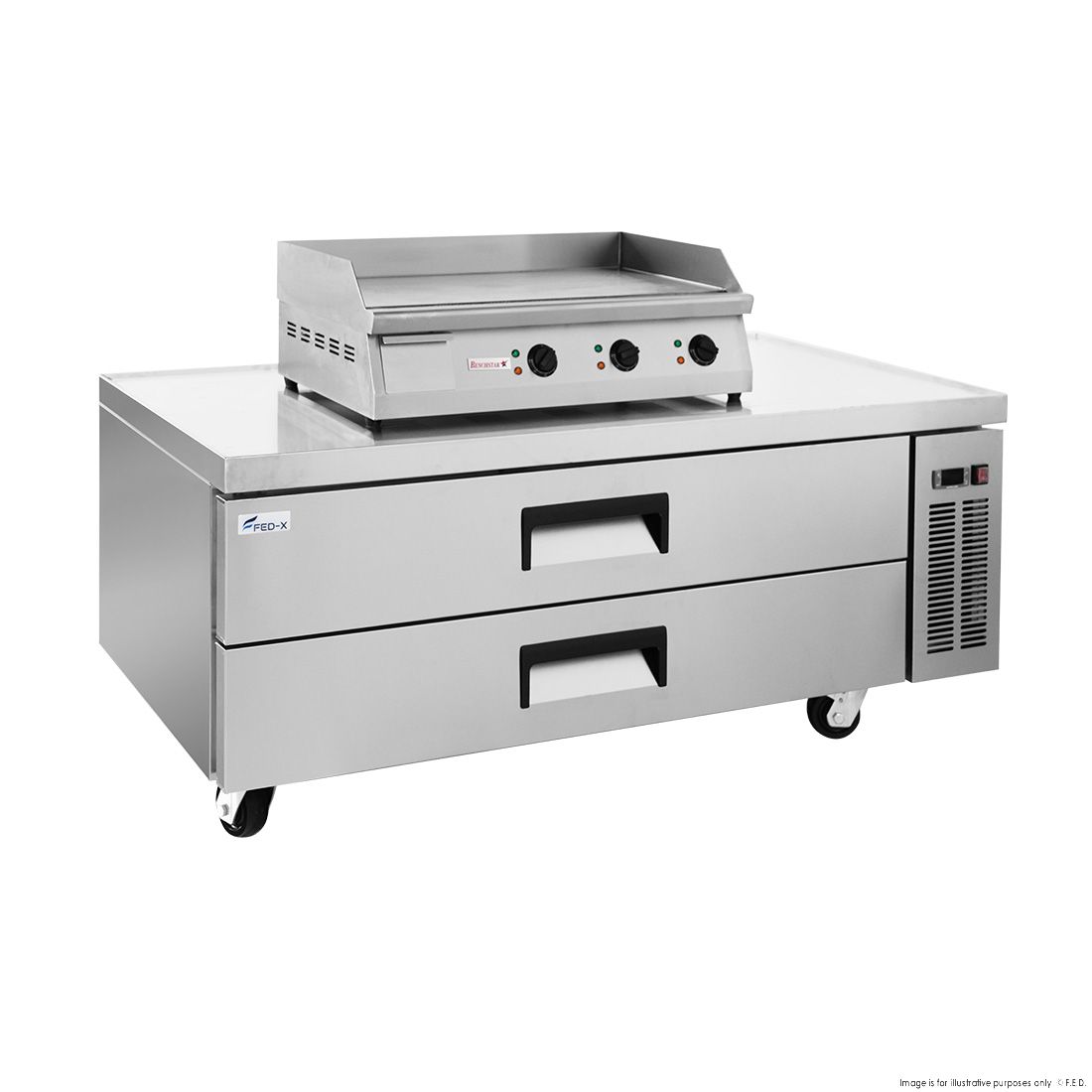

• The raised-edge stainless steel bench top provides a robust, hygienic platform for heavy cooking appliances, effectively replacing a separate equipment stand.
• Fan-forced evaporator cooling combined with a rapid recovery rate maintains stable temperatures even when drawers are opened frequently during peak service.
• Austrian Fulterer drawer runners deliver smooth, reliable operation under the rigours of daily commercial use, reducing long-term wear and maintenance costs.
• Removable magnetic drawer gaskets and rounded interior corners simplify cleaning and sanitisation, supporting food safety compliance.
• HFC and CFC-free foam insulation reduces environmental impact while the tropicalised design ensures dependable performance in warm Australian kitchen environments.

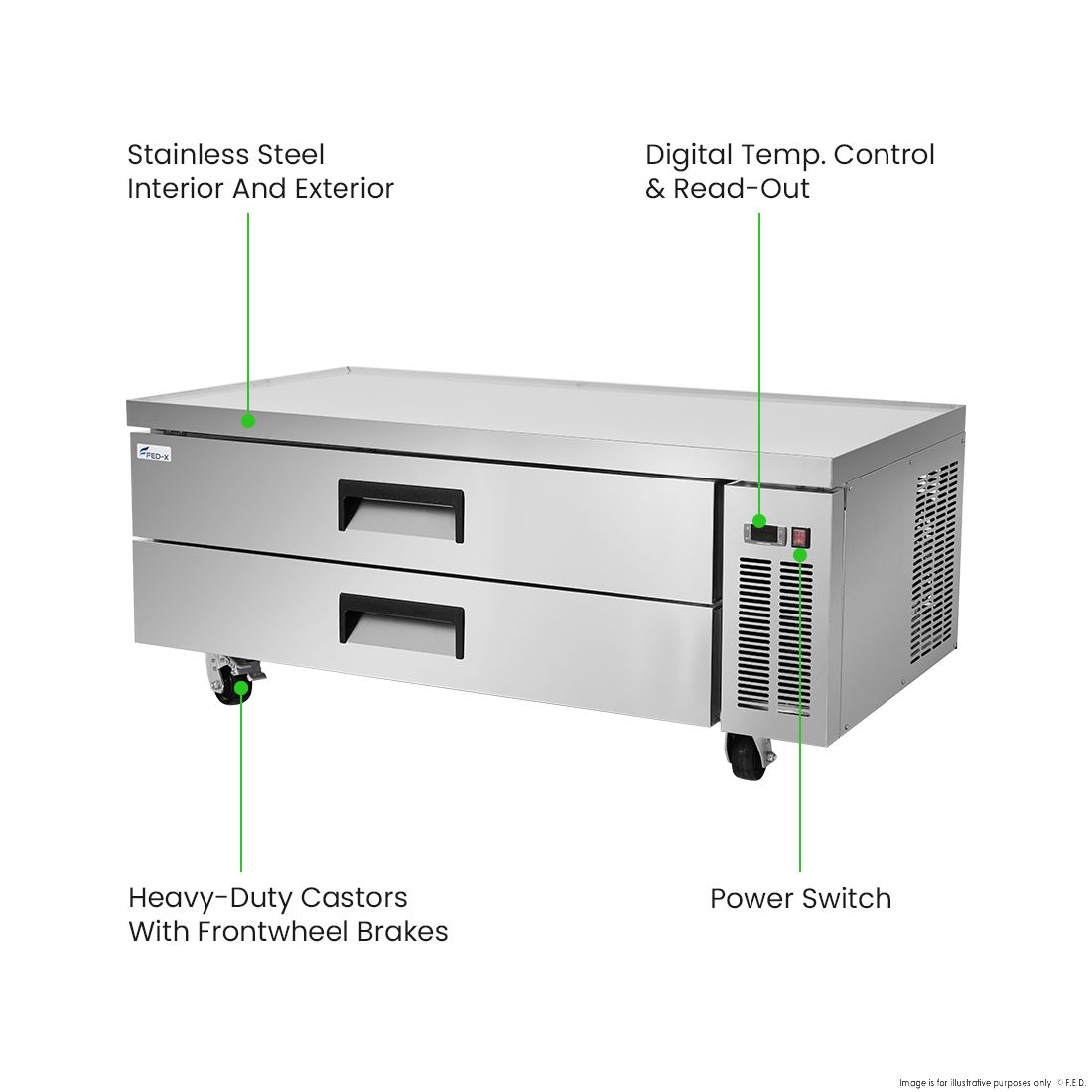

• Heavy-duty castors with front-wheel brakes make repositioning straightforward while keeping the unit safely stationary during operation.
• The comprehensive warranty — two years parts and labour plus a further two years parts only when registered within 14 days of invoice — provides long-term peace of mind.

Key Features

• 360L gross capacity with 310L net usable volume across two refrigerated drawers
• Temperature range of -1°C to +5°C; rated for ambient conditions up to 32°C at 65% relative humidity
• Fan-forced evaporator cooling system with rapid temperature recovery rate

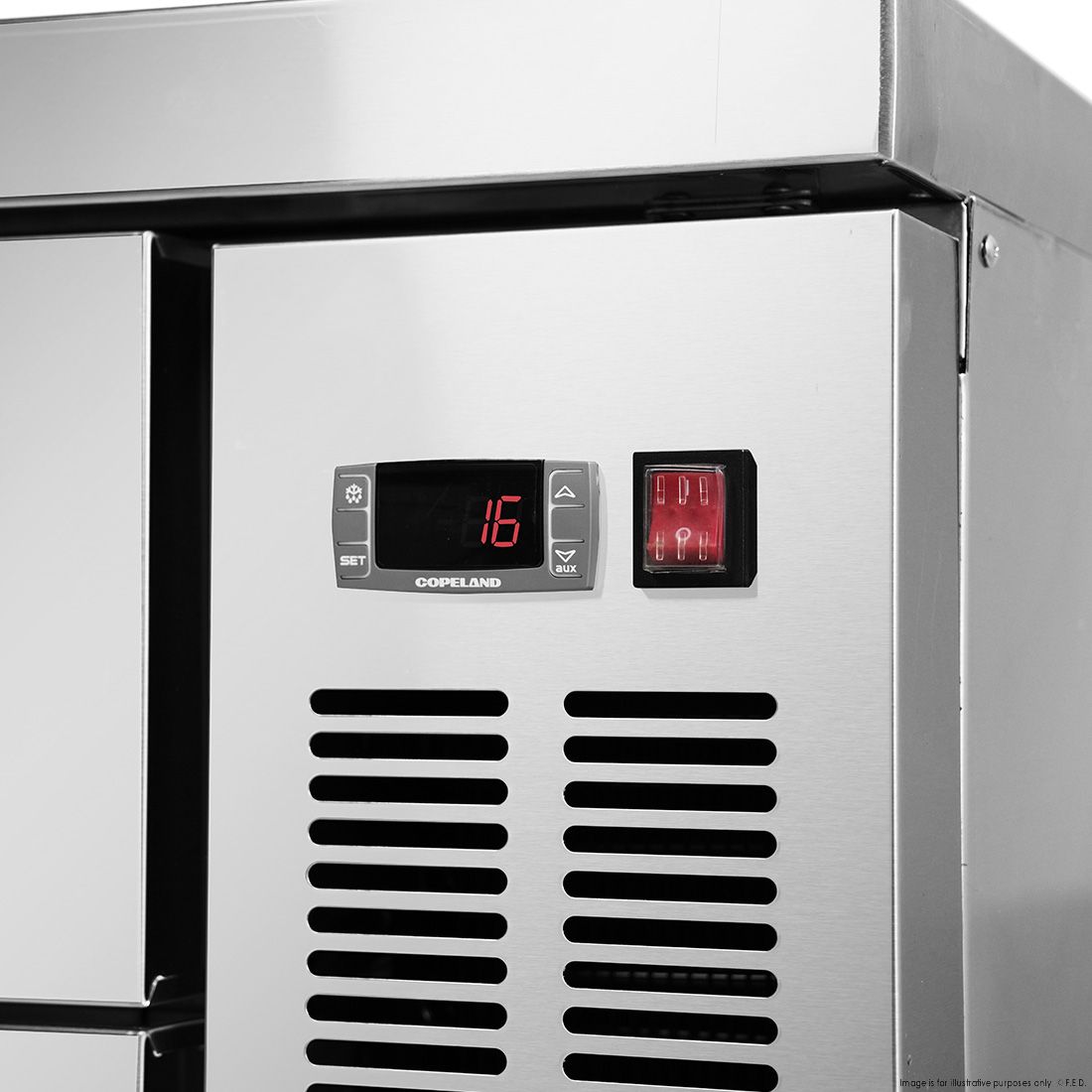

• User-friendly digital temperature controller for precise, consistent operation
• Automatic defrost system for low-maintenance operation
• Stainless steel interior and exterior construction with rounded corners for easy cleaning and long-term durability
• 60mm HFC and CFC-free foam body insulation for energy-efficient temperature retention
• Tropicalised refrigeration system engineered for Australian commercial kitchen conditions
• Two drawers compatible with gastronomy (GN) pans in various configurations; GN pans sold separately
• Drawer depth of 530mm; compatible GN pan height of 100mm
• Raised-edge bench top to secure cooking equipment and contain spills

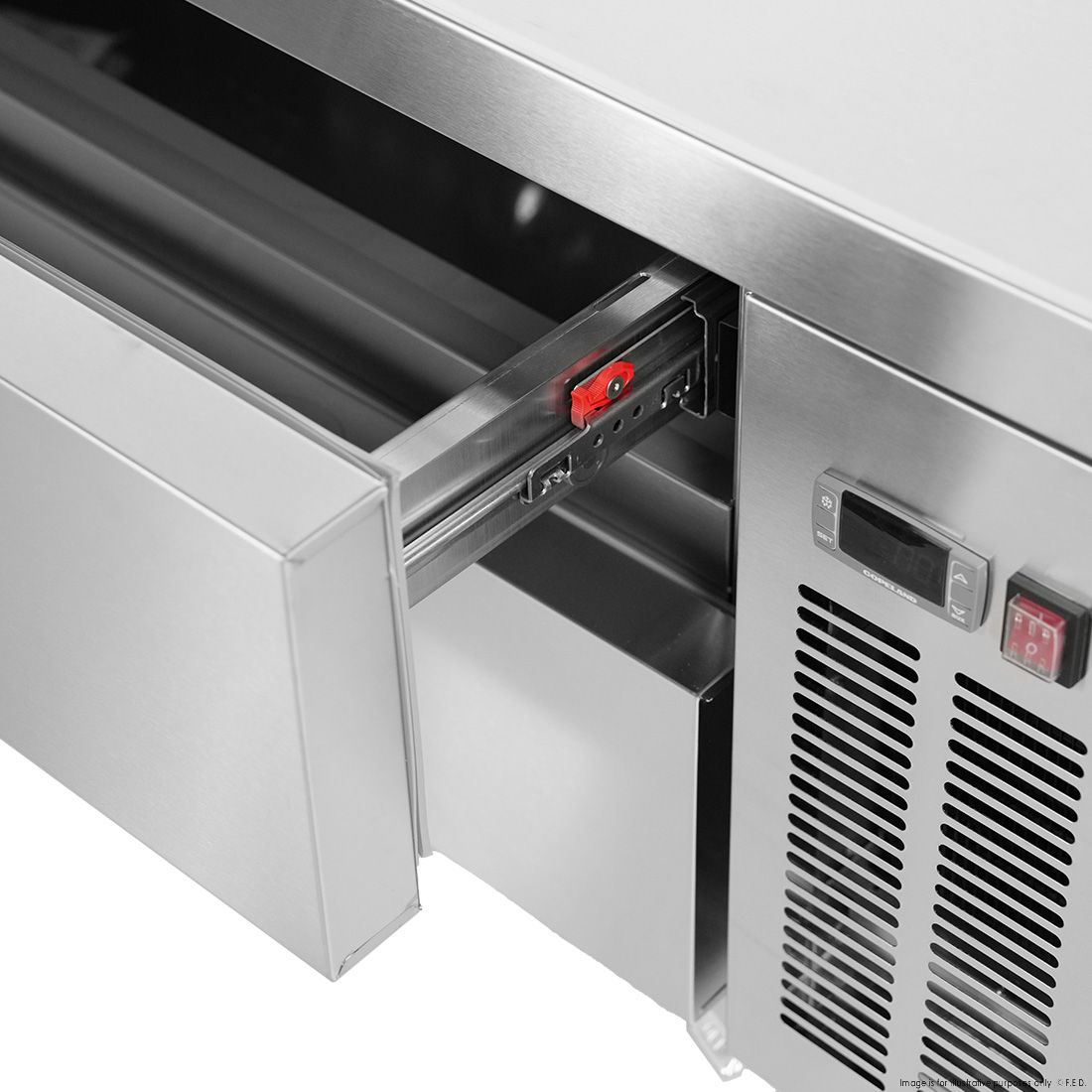

• Austrian Fulterer drawer runners for smooth, durable drawer operation
• Removable magnetic drawer gaskets for straightforward cleaning and maintenance
• Heavy-duty castors with front-wheel brakes for mobility and stability
• 240V, 500W/10A power supply
• Foaming thickness of 40mm

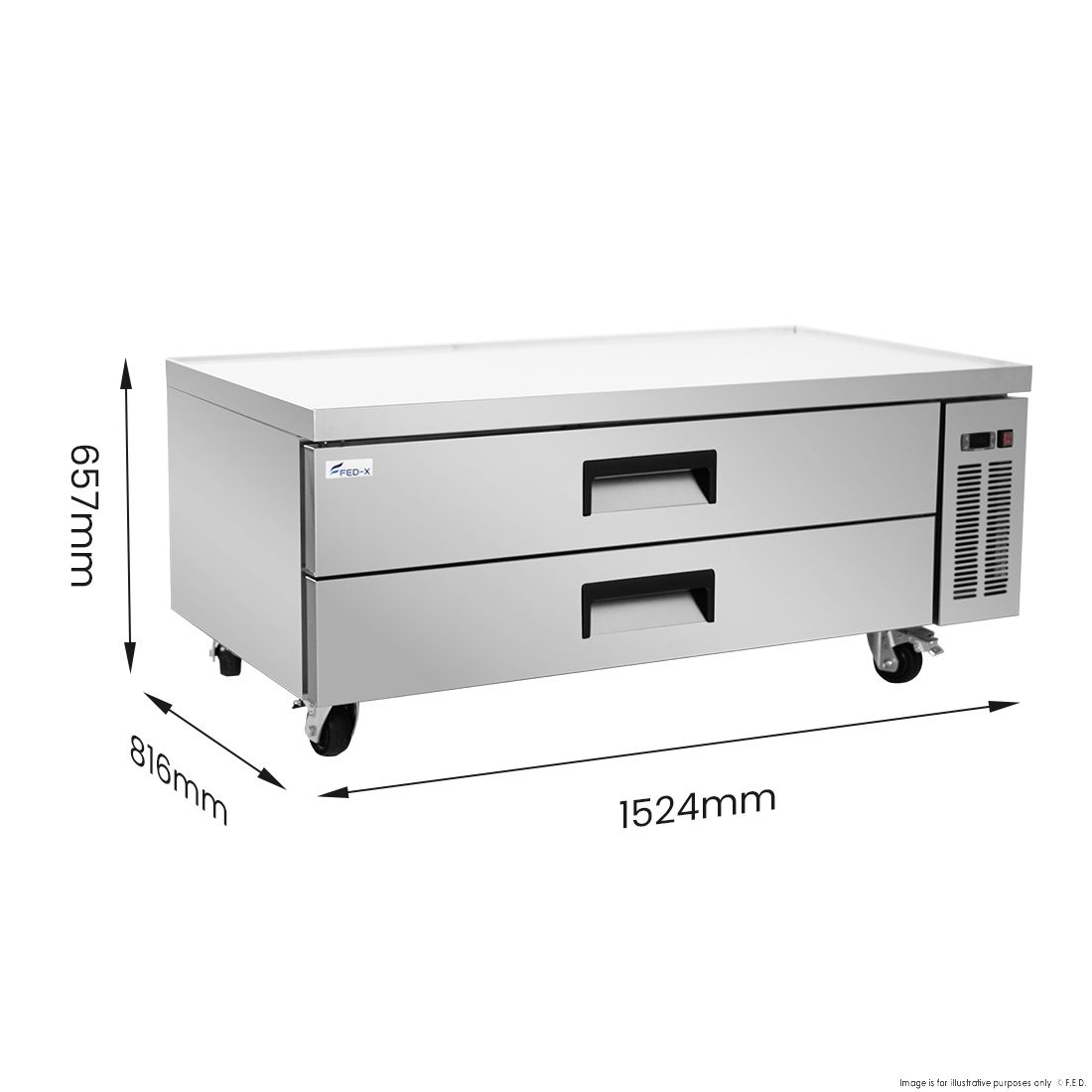

• Overall dimensions: 1524W x 816D x 658H mm
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 1524
• Depth (mm): 816
• Height (mm): 658
• Weight (kg): 256.0
• Packed Width (mm): 1590
• Packed Depth (mm): 886
• Packed Height (mm): 725
• Shipping Weight: 105
• No. of Doors: 2
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Cooling Type: Fan Forced
• Power Delivery: 240V, 500W/10A
• Power (kW): 240
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
