Overview

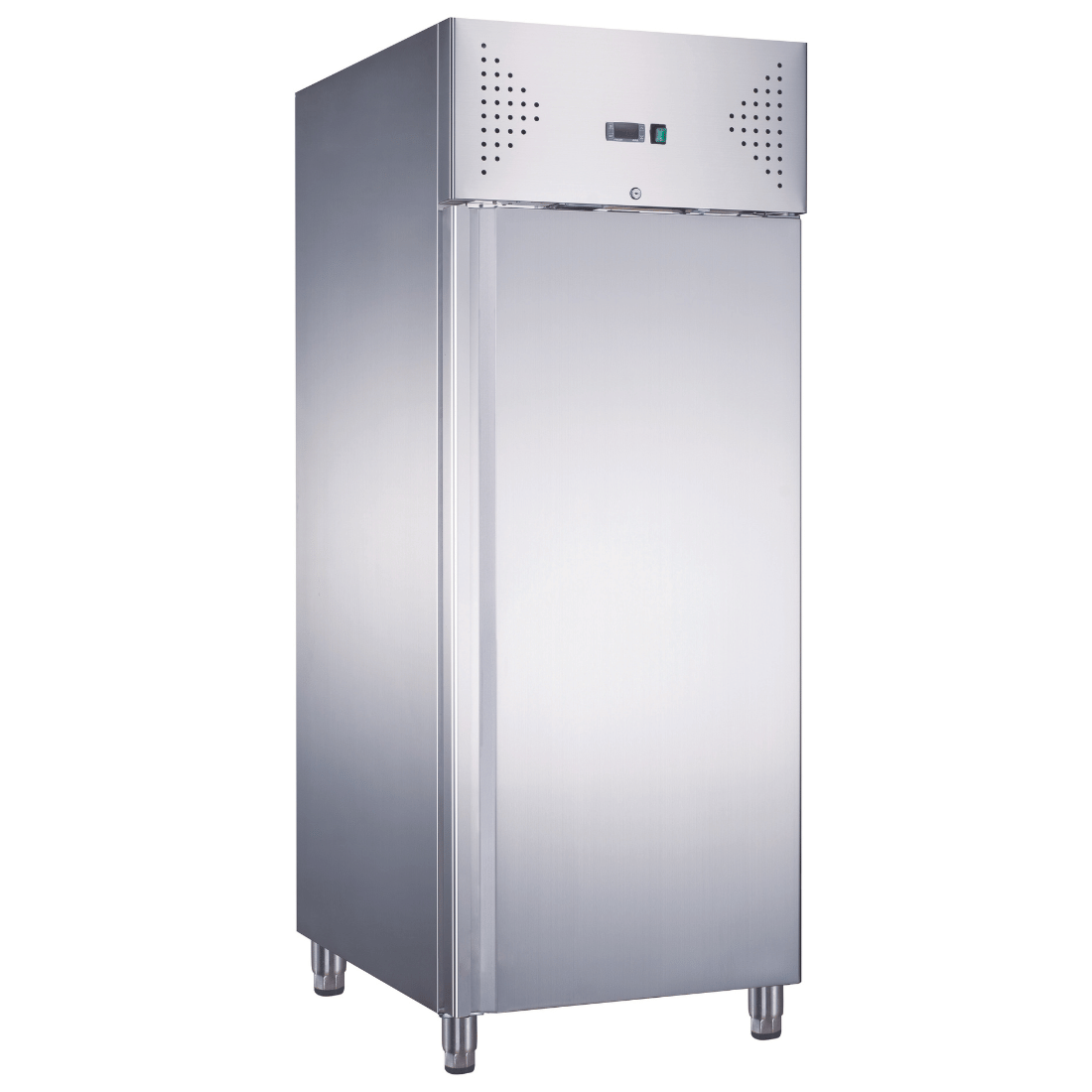

FED-X XPA800BT Bakery Freezer Cabinet

The FED-X XPA800BT is a purpose-built upright bakery freezer cabinet designed to meet the demands of high-volume bakeries, patisseries, and commercial production kitchens. With a gross capacity of 737 litres and a net usable volume of 612 litres, it accommodates up to 10 adjustable 600mm x 800mm bakery pans, making the organisation and storage of dough, pastry, and pre-prepared bakery products straightforward and efficient. Fan-forced cooling combined with automatic defrost maintains a consistent temperature range of -18 to -22°C, even in ambient conditions up to 43°C at 70% relative humidity.

Constructed entirely from stainless steel inside and out, the XPA800BT offers excellent hygiene and long-term durability in demanding kitchen environments. Rounded interior bottom corners simplify cleaning, while 60mm CFC-free insulation maximises cold retention and energy efficiency. A Dixell digital controller provides precise temperature monitoring, and the R290 natural refrigerant ensures an environmentally responsible refrigeration solution. The reversible, self-closing door features a replaceable magnetic seal and an integrated door lock, delivering reliable performance and security during every service.

Key Benefits

• Holds up to 10 adjustable 600mm x 800mm bakery pans, enabling efficient organisation of large batches of dough and pastry products
• Fan-forced cooling distributes temperature evenly throughout the cabinet, protecting product quality during busy service periods
• Automatic defrost reduces manual maintenance requirements and keeps the unit operating at peak efficiency
• Dixell digital temperature controls allow precise monitoring and quick adjustments, giving kitchen staff full visibility over frozen storage conditions
• 60mm CFC-free insulation combined with a self-closing, magnetically sealed door minimises temperature fluctuations and supports energy efficiency
• Stainless steel interior and exterior with rounded bottom corners make cleaning faster and help maintain a hygienic storage environment
• R290 natural refrigerant offers an eco-friendly alternative with a low global warming potential, supporting sustainable kitchen operations
• Reversible door and lockable castors provide installation flexibility and allow the cabinet to be repositioned or secured as needed
• Backed by a 2-year parts and labour warranty plus a further 2-year parts-only warranty when registered within 14 days of invoice, providing long-term peace of mind

Key Features

• Gross volume: 737L; net volume: 612L
• Temperature range: -18 to -22°C
• Maximum ambient operating temperature: 43°C at 70% relative humidity
• Compatible with 10 adjustable 600mm x 800mm bakery pans
• Fan-forced cooling system for even temperature distribution
• Automatic defrost function
• Dixell digital temperature controls and LED readout
• Internal LED lighting
• Stainless steel interior and exterior construction
• Rounded bottom interior corners for easy cleaning
• 60mm CFC-free insulation
• R290 natural refrigerant
• Reversible, self-closing door
• Replaceable magnetic door seal
• Door-mounted fan and light switch
• Integrated door lock
• Lockable castors for mobility and secure positioning
• Power supply: 240V, 520W / 10A
• Dimensions: 740mm (W) x 990mm (D) x 2000mm (H)
• Weight: 203kg
• 2-year parts and labour warranty plus 2-year parts-only warranty when registered within 14 days of invoice

Specifications

• Width (mm): 740
• Depth (mm): 990
• Height (mm): 2000
• Weight (kg): 203
• Packed Width (mm): 1015
• Packed Depth (mm): 765
• Packed Height (mm): 2070
• Shipping Weight: 148
• Power Delivery: 240V, 520W/10A
• Power (kW): 240
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
