Overview

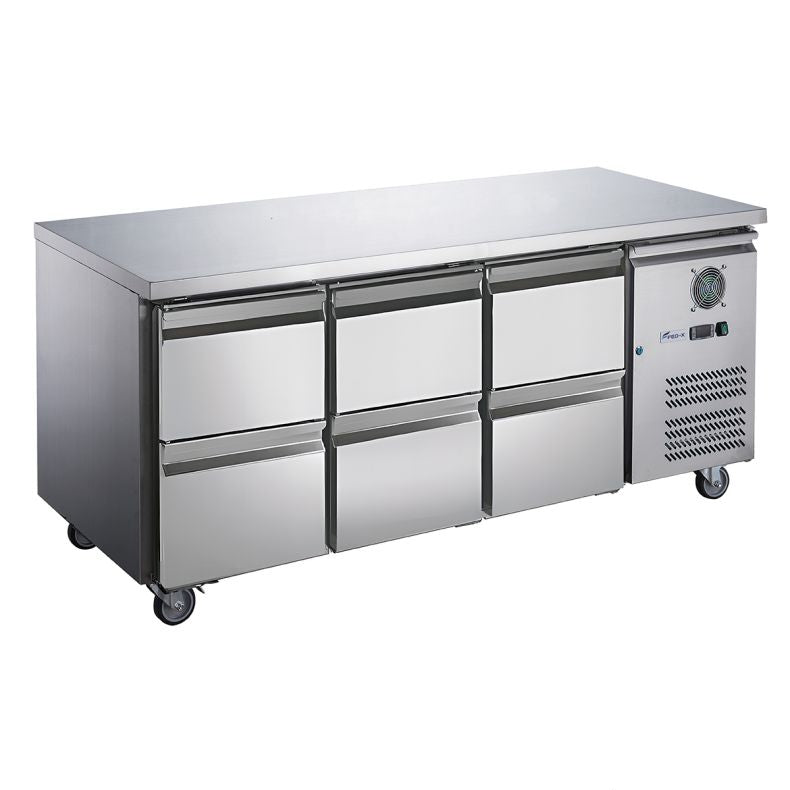

FED-X XUB7C18S3D Stainless Steel Six-Door Bench Fridge with Drawers

The FED-X XUB7C18S3D is a heavy-duty under-bench refrigerator purpose-built for high-volume commercial kitchens. Spanning 1795 mm wide, it features six compartments each fitted with two GN 1/2 drawers, giving kitchen teams fast, organised access to chilled ingredients without disrupting workflow. The stainless steel worktop doubles as usable prep surface, maximising output from every square metre of floor space.

Tropicalised for Australian conditions and rated to perform in ambient temperatures up to 43°C, this unit is engineered for reliability through the longest service periods. Fan-forced cooling, an Embraco or Secop compressor, Ebm-papst evaporator and condenser fans, and a Dixell digital controller work together to maintain a precise temperature range of -2°C to +8°C with a rapid recovery rate. R290 refrigerant and HFC- and CFC-free foam insulation reflect a commitment to environmentally responsible refrigeration.

Key Benefits

• Twelve GN 1/2 drawers arranged across six compartments keep ingredients logically sorted and within arm's reach during busy service, reducing movement and saving time.
• Fan-forced cooling circulates air evenly throughout the cabinet so every drawer holds a consistent temperature, protecting food safety and ingredient quality.
• A robust stainless steel worktop adds valuable prep area directly above the unit, helping kitchens get more from limited floor space.
• Tropicalised components and a 43°C maximum ambient temperature rating ensure dependable performance in hot Australian commercial kitchen environments.
• The Dixell digital controller with user-friendly controls allows chefs to set and monitor temperature precisely without guesswork.
• Heavy-duty castors with front-wheel brakes make repositioning straightforward while keeping the unit securely in place during operation; the design also allows placement flush against a wall.
• HFC- and CFC-free 60 mm foam body insulation combined with R290 refrigerant minimises environmental impact and reduces energy running costs.
• Stainless steel interior and exterior with rounded internal corners simplify cleaning and support strict hygiene standards.
• A four-year warranty structure (2 years parts and labour plus 2 years parts only, with registration within 14 days of invoice) provides long-term peace of mind for commercial operators.

Key Features

• Gross volume: 417 litres
• Six compartments, each fitted with two heavy-duty GN 1/2 drawers (12 drawers total)
• Temperature range: -2°C to +8°C
• Fan-forced cooling system for even temperature distribution
• Compressor: Embraco or Secop
• Controller: Dixell digital controller with user-friendly digital display
• Evaporator and condenser fans: Ebm-papst
• Refrigerant: R290 (environmentally friendly)
• 60 mm HFC- and CFC-free foam body insulation
• Stainless steel interior and exterior construction
• Rounded internal corners for easier cleaning and hygiene
• Heavy-duty stainless steel worktop surface
• Tropicalised for Australian conditions; rated to 43°C maximum ambient temperature
• Rapid temperature recovery rate after door or drawer opening
• Heavy-duty castors with front-wheel brakes for mobility and secure positioning
• Designed to be placed flush against a wall
• Internal dimensions: 1234 mm W x 580 mm D x 564 mm H
• Power supply: 240 V, 230 W / 1.3 A
• Automatic defrost system
• 2 years parts and labour plus 2 years parts only warranty (product registration required within 14 days of invoice)

Specifications

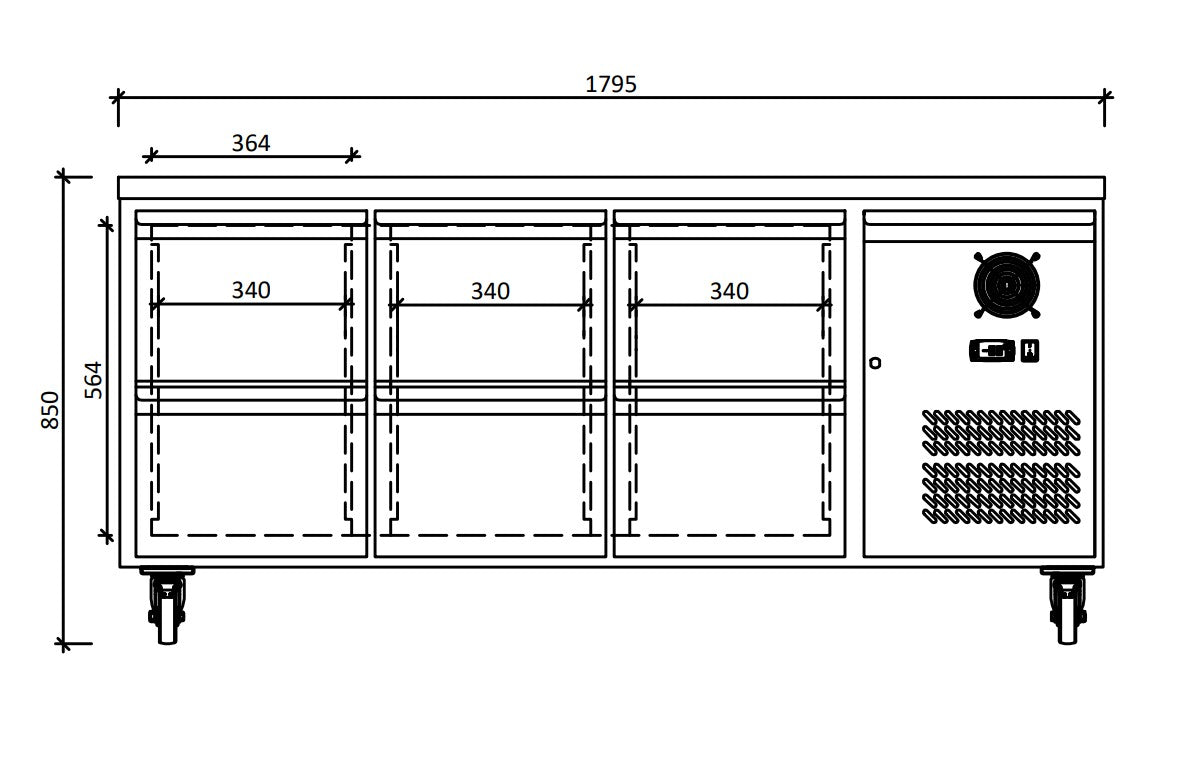

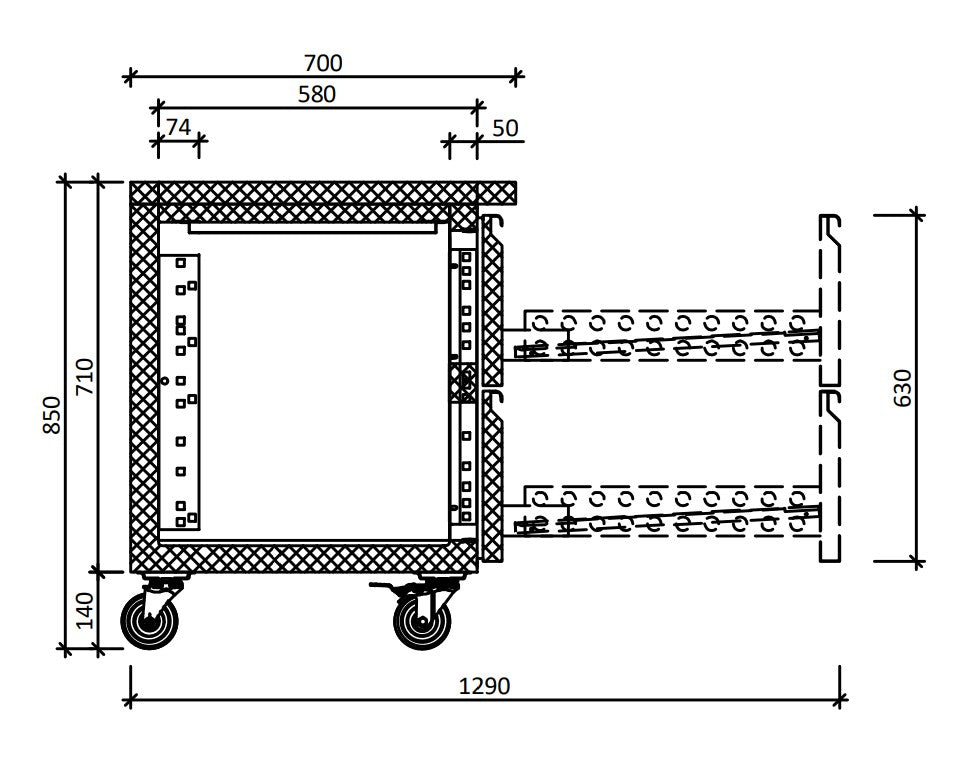

• Width (mm): 1795
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 303
• Packed Width (mm): 1825
• Packed Depth (mm): 730
• Packed Height (mm): 910
• No. of Doors: 6
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• Cooling Type: Fan Forced
• Power Delivery: 240V; 230W/1.3A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
