Overview

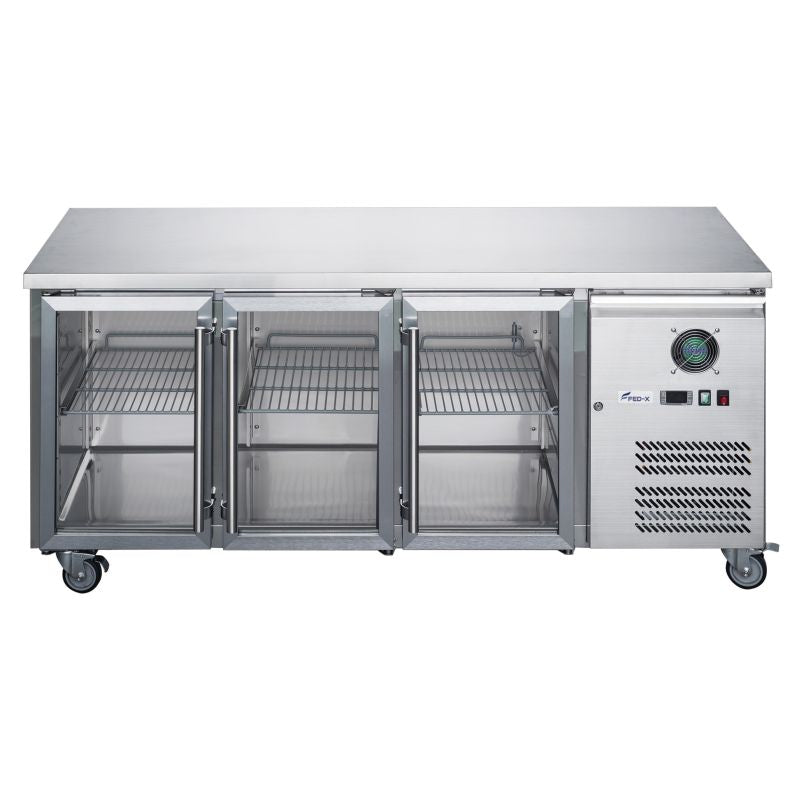

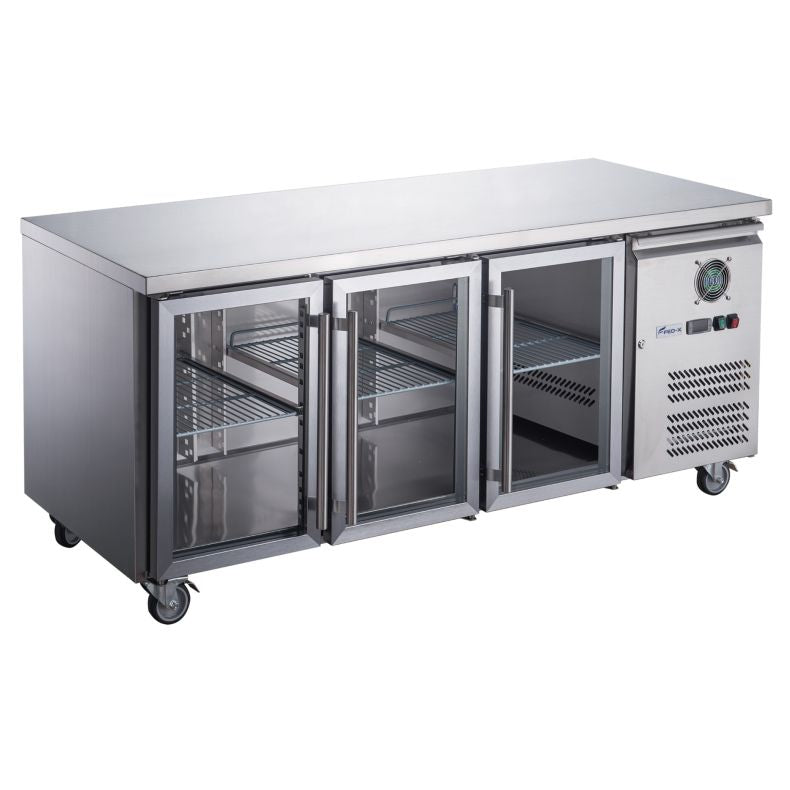

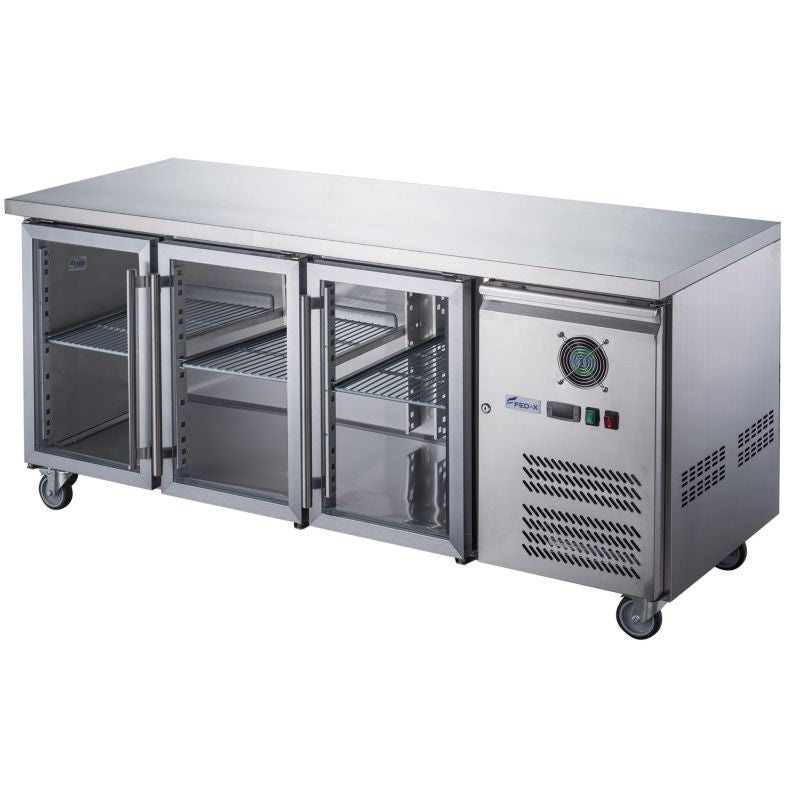

FED-X XUB7C18G3V Three Glass Door Bench Fridge Stainless Steel 417L

The FED-X XUB7C18G3V is a 417-litre three glass door underbench fridge built for the demands of busy commercial kitchens, cafes, restaurants, fast food operations, butcheries and convenience stores. Tropicalised for Australian conditions with a maximum ambient operating temperature of 43°C, it combines fan-forced even cooling, a digital Dixell controller and a stainless steel interior and exterior to deliver consistent food-safe refrigeration across the full temperature range of -2°C to +8°C.

Designed to slot under existing counters or sit flush against a wall, the XUB7C18G3V maximises usable floor and bench space without compromising workflow. The stainless steel benchtop doubles as a practical prep surface, while heavy-duty front-brake castors allow the unit to be rolled out quickly for cleaning or servicing. Self-closing glass doors with heavy-duty magnetic seals, internal LED lighting, GN1/1 compatible shelving and R290 refrigerant make this an efficient, environmentally responsible choice for both back-of-house and customer-facing settings.

Key Benefits

• Three glass doors with internal LED lighting give instant product visibility, reducing door-open time and supporting faster service and easier stock inventory.
• Fan-forced cooling with Ebm-papst evaporator and condenser fans circulates air evenly throughout the cabinet, eliminating warm spots and protecting food safety.
• Digital Dixell controller allows precise one-degree temperature adjustments, helping staff maintain consistent refrigeration without guesswork.
• Underbench footprint with rear-flush wall placement capability maximises tight kitchen layouts, and the stainless steel top provides bonus prep workspace.
• Heavy-duty castors with front-wheel brakes make repositioning straightforward for routine cleaning and maintenance access.
• Auto defrost and self-evaporating drainage reduce labour and downtime, keeping the unit running with minimal manual intervention.
• R290 refrigerant combined with 60mm HFC- and HCFC-free foam insulation supports environmental compliance and energy-efficient operation.
• Splashback tops and optional two- or three-drawer configurations are available upon request, allowing the unit to be tailored to specific service needs.
• Tropicalised for Australian conditions and backed by a two-year parts and labour warranty plus an additional two years parts-only cover when registered within 14 days of invoice.

Key Features

• 417-litre gross capacity (311-litre net volume) across three compartments
• Temperature range: -2°C to +8°C; maximum ambient operating temperature 43°C at 60% RH
• Fan-forced cooling system with Ebm-papst evaporator and condenser fans for uniform air distribution
• Embraco/Secop compressor for reliable, high-duty-cycle performance

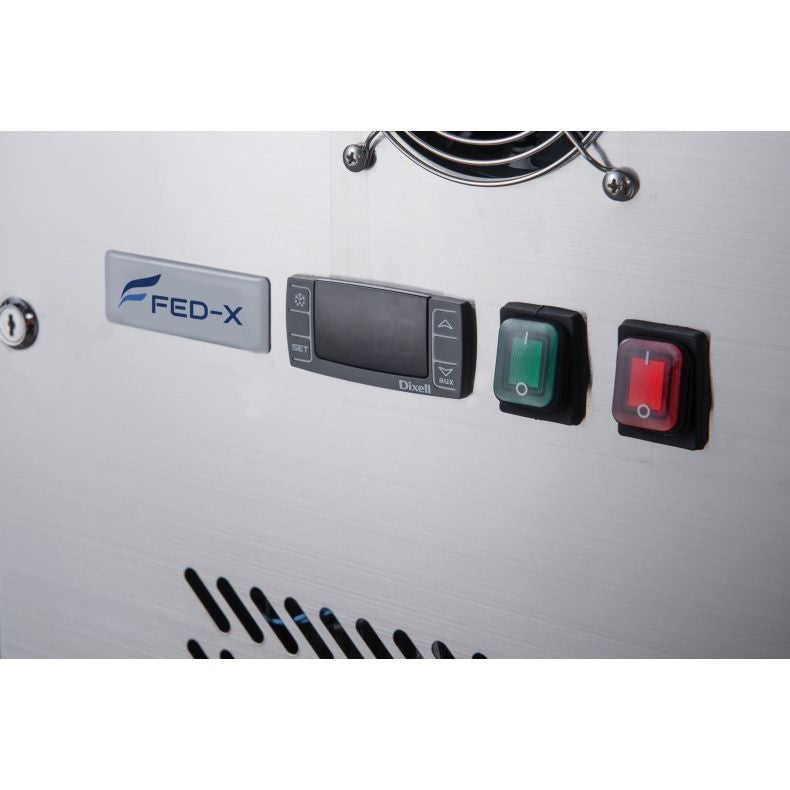

• Dixell digital controller with single-degree temperature increment adjustment
• R290 refrigerant; 60mm HFC- and HCFC-free foam body insulation
• Stainless steel interior and exterior with rounded internal corners for easy cleaning
• Internal dimensions: 1234mm W x 580mm D x 564mm H

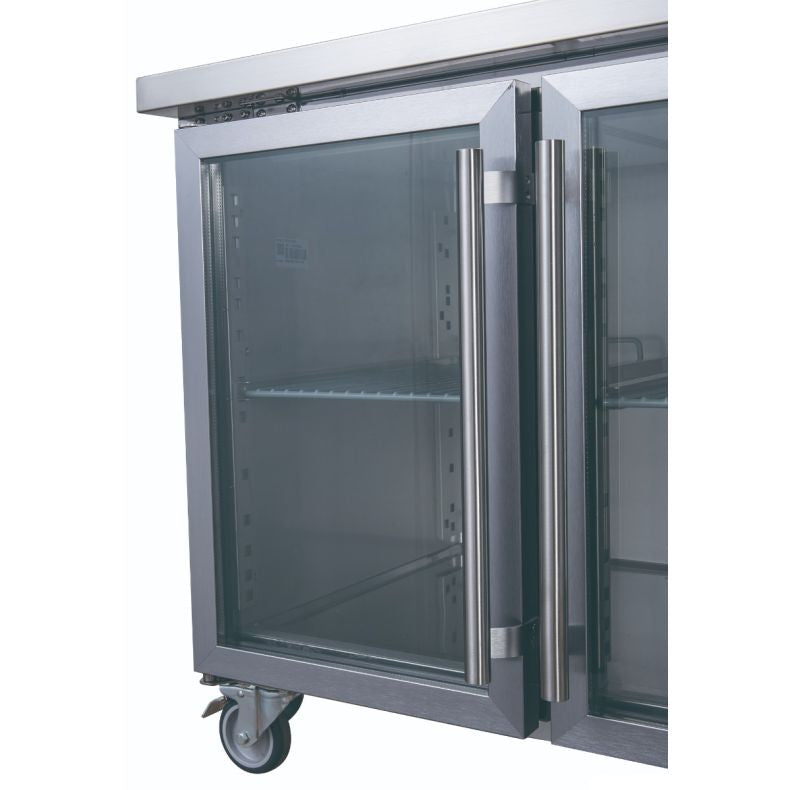

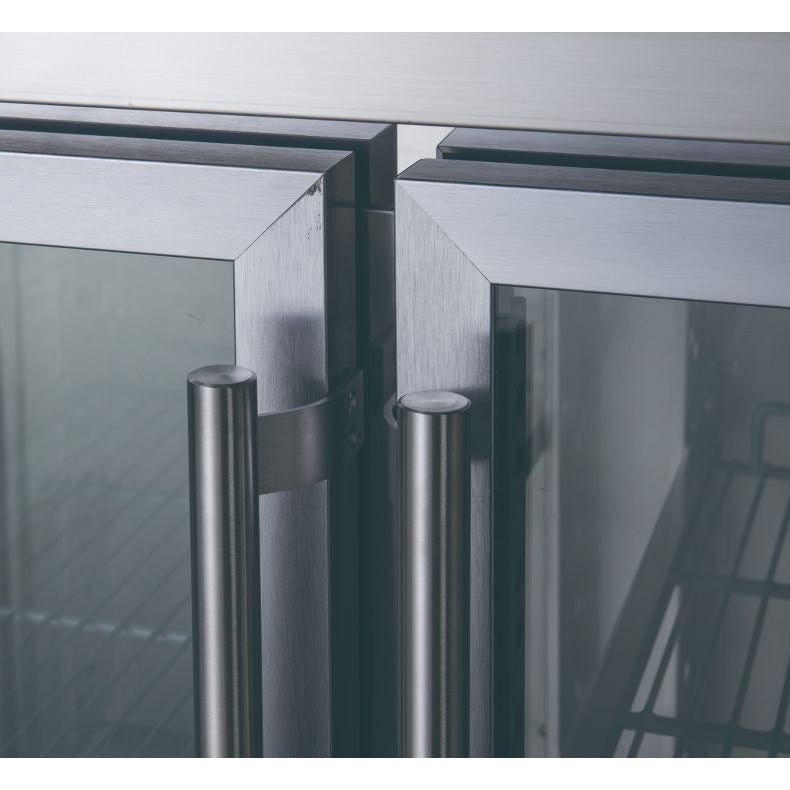

• Three self-closing glass doors fitted with heavy-duty magnetic seals to minimise cold-air loss
• LED interior lighting for clear product presentation
• One shelf per door section; GN1/1 pan compatible with 40kg weight loading per shelf
• Optional additional GN slides available so pans slide directly in and out
• Unit can be positioned against the wall due to rear-ventilation-compatible design; requires 100mm wall clearance for optimal airflow
• Stainless steel benchtop provides additional workspace
• Heavy-duty castors with front-wheel brakes for controlled repositioning
• Auto defrost and self-evaporating drainage for low-maintenance operation
• Power: 240V, 230W/1.3A, requires 10A outlet
• Rapid temperature recovery rate after door opening
• Optional splashback tops and two- or three-drawer configurations available on request
• Tropicalised for Australian climatic conditions
• Meets food, health and safety standards
• Warranty: 2 years parts and labour plus 2 years parts only when product is registered within 14 days of invoice

Specifications

• Width (mm): 1795
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 153
• Packed Width (mm): 1825
• Packed Depth (mm): 730
• Packed Height (mm): 910
• Shipping Weight: 134
• Door Type: Hinged Doors
• Body Material: Stainless Steel
• Mobility: Castors/Wheels
• No. of Doors: 5713
• Cooling Type: Fan Forced
• Power Delivery: 240V; 230W/1.3A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 417
