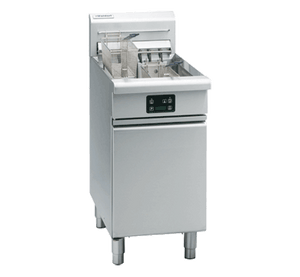

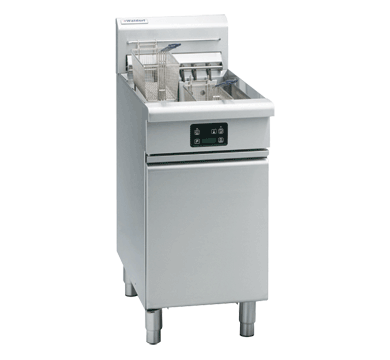

Waldorf FN8120GE 800 Series 450mm Single Pan Gas Fryer with Digital Display

The Waldorf FN8120GE is part of the renowned 800 Series, a redesigned lineup of commercial deep fryers built on a longstanding reputation for durability, speed and cost-efficiency. This 450mm single pan gas fryer delivers a 31kg per hour production rate powered by two patented 45MJ/hr infrared burners, setting a high standard for frying performance and rapid heat recovery in busy commercial kitchens. Available in both natural gas and LPG configurations, it suits a wide range of venue setups.

Precise temperature management is handled by digital electronic controls featuring a clear digital display for both time and temperature, three individual product timers with countdown display and alarms, a programmable melt cycle, and an over-temperature safety cut-out for added peace of mind. The easy-clean stainless steel open pan V-tank with a large capacity cool zone simplifies daily maintenance, while the modular 800 Series format allows flexible kitchen configurations including single or twin pan and 450mm or 600mm widths.

Key Benefits

• Patented infrared burner technology delivers rapid heat recovery, maintaining output during continuous high-volume frying service
• A 31kg per hour production rate keeps pace with peak service demand in busy commercial kitchens
• Three individual product timers with countdown display and audible alarms allow simultaneous cooking of different menu items without confusion
• Programmable melt cycle gently brings cold or solidified oil up to operating temperature, protecting the pan and extending oil life
• Large capacity cool zone at the base of the V-tank traps food debris below the active frying area, reducing oil degradation and extending oil usability
• Digital thermostat with a 145 to 195 degree Celsius range provides precise, consistent temperature control for repeatable frying results
• Easy-clean open pan design and accessible components reduce downtime during cleaning and routine servicing
• Supplied with baskets as standard, so the unit is ready for service immediately upon installation
• Constructed from 304 stainless steel with a stainless steel splashback, ensuring long-term durability and compliance with commercial kitchen hygiene standards

Key Features

• 450mm wide single pan gas fryer in the Waldorf 800 Series modular lineup
• 20 litre oil capacity in a stainless steel open pan V-tank configuration
• 31kg per hour production rate
• Two patented infrared burners, each rated at 45MJ/hr, for a combined output of 90MJ/hr
• Digital electronic controls with a digital display showing both time and temperature simultaneously
• Three individual product timers with countdown display and audible alarms
• Heating indicator and basket drop display for operational visibility
• Programmable melt cycle for safe, controlled oil warm-up from cold
• Thermostat temperature range of 145 to 195 degrees Celsius
• Over-temperature safety cut-out for operator and equipment protection
• Large capacity cool zone to capture sediment below the frying zone and extend oil life
• Supplied standard with two large baskets or three standard baskets, plus a stainless steel lid
• 304 stainless steel construction throughout
• Stainless steel splashback included
• 150mm legs for elevated bench clearance and ease of cleaning beneath the unit
• Compatible with natural gas and LPG; 3/4 inch BSP male gas connection
• Electrical requirement: 0.5A, 3-pin 10A cordset fitted, 230 to 240V AC, 50Hz
• Modular 800 Series format supports flexible kitchen configurations including 450mm or 600mm, single or twin pan options
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Shipping Weight: 122
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 20
• Temperature Range: 145-195°C
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Power Rating: 0.5A 3 pin 10A cordset fitted|1P+N+E|230-240 Vac|50Hz
• Temperature Control: Digital Electronic
• Display Type: Digital
