Overview

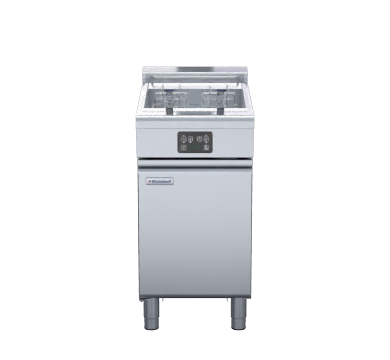

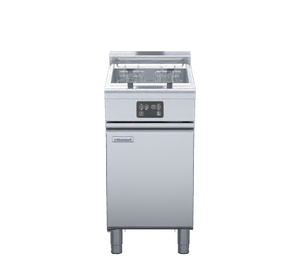

Waldorf FNL8127EE 800 Series 450mm Single Pan Electric Fryer Low Back Version

The Waldorf FNL8127EE is a 450mm single pan electric fryer from the 800 Series, designed for high-volume commercial kitchens that demand consistent, reliable frying output. Running on a 17kW three-phase power supply across three 5.66kW stainless steel heating elements, the unit delivers a production rate of 31kg per hour from a 27-litre oil capacity pan, making it well suited to busy service environments where speed and recovery time are critical.

Constructed throughout in 304 stainless steel, the FNL8127EE features a bull nose welded 1.5mm pan, 1.5mm splashback, 1.2mm side panels, and a double-skin door with 0.9mm stainless exterior. The low back (FNL) configuration suits kitchen layouts with height restrictions or canopy clearance requirements. A 32mm drain valve, hinge-out counterbalanced heating elements, and fully modular construction simplify cleaning, servicing, and installation.

Key Benefits

• 31kg per hour production rate supports continuous high-volume frying during peak service periods
• Fast heat recovery from three independent 5.66kW elements minimises downtime between batches
• Digital display electronic controls with two basket timers allow precise, repeatable cooking results across different menu items
• Hinge-out counterbalanced heating elements provide unobstructed access to the pan for thorough, efficient cleaning
• 32mm drain valve speeds up oil changes and reduces labour during kitchen clean-downs
• Fully modular design simplifies installation, service, and future reconfiguration of the cooking suite
• Low back version accommodates kitchens with limited overhead clearance or specific canopy configurations
• Heavy-duty 150mm legs with adjustable feet allow levelling on uneven floors and facilitate cleaning underneath
• Supplied with two standard fry baskets and a stainless steel lid, ready to operate straight from delivery

Key Features

• 450mm wide single pan electric fryer, 800 Series low back (FNL) model
• 27-litre oil capacity pan fabricated from stainless steel
• Three x 5.66kW stainless steel heating elements, total 17kW output
• Hinge-out counterbalanced heating element assembly for easy access and cleaning
• Digital electronic display with two basket timers and temperature control
• Temperature range 145°C to 195°C
• Power supply: 400-415V AC, 3P+N+E, 50/60Hz; L1/L2/L3 each 23.6A
• 32mm (1¼ inch) drain valve for fast, controlled oil drainage
• Bull nose welded 1.5mm 304 stainless steel pan construction
• 1.5mm 304 stainless steel splashback
• 1.2mm 304 stainless steel side panels
• Double-skin door with 0.9mm 304 stainless steel exterior
• 150mm legs in 63mm diameter, 1.2mm 304 stainless steel with adjustable feet
• Fully modular construction for straightforward installation and servicing
• Supplied standard with two fry baskets and a stainless steel lid
• Stainless steel exterior throughout
• Manufactured in New Zealand
• Overall dimensions: 450mm (W) x 805mm (D) x 1085mm (H)

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 27
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Digital Electronic
• Display Type: Digital
