Overview

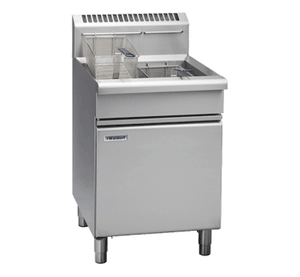

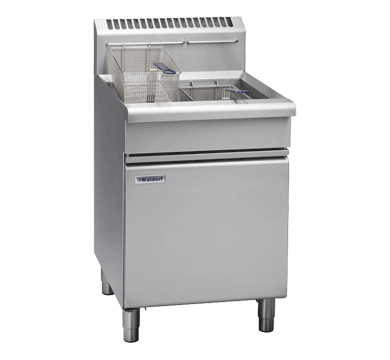

Waldorf FNL8130G 800 Series 600mm Single Pan Gas Fryer Low Back Version

The Waldorf FNL8130G is a heavy-duty commercial gas fryer from the 800 Series range, designed to deliver consistent, high-volume frying performance in busy professional kitchens. Built in New Zealand from 304 stainless steel, this 600mm wide single pan unit holds 31 litres of oil and is powered by twin 45 MJ/hr infrared burners for a combined output of 90 MJ/hr, achieving a production rate of 31 kg per hour.

Featuring mechanical thermostatic controls with an analogue display and a temperature range of 145 to 195°C, the FNL8130G offers straightforward operation and reliable temperature consistency. The low back configuration suits venues where hood clearance or installation space requires a reduced profile, and the unit ships ready to accept two large baskets or three standard baskets, compatible with both natural gas and LPG connections.

Key Benefits

• Twin infrared burners deliver rapid heat recovery, maintaining output during consecutive frying loads in high-demand service periods.
• A 31 kg per hour production rate supports large-volume service without compromising food quality or throughput.
• Mechanical controls and an analogue display keep operation intuitive, reducing training time for kitchen staff.
• Thermostatic temperature control across 145 to 195°C ensures consistent cooking results across different menu items.
• Compatibility with both natural gas and LPG via an R 3/4 BSP male connection provides flexibility for different site configurations.
• The low back design accommodates venues with height restrictions or specific canopy and exhaust requirements.
• 304 stainless steel construction throughout provides durability, corrosion resistance and straightforward cleaning.
• Supplied with baskets (two large or three standard) so the unit is ready for immediate use without additional accessory purchases.
• A 24-month warranty and New Zealand manufacture back the unit with assured after-sales support.

Key Features

• 600mm wide single pan gas fryer from the Waldorf 800 Series
• 31-litre oil capacity pan
• Production rate of 31 kg per hour
• Two 45 MJ/hr infrared burners, combined output 90 MJ/hr (25 kW)
• Low back version for reduced installation height at 1085mm overall
• Thermostatic temperature control, analogue display, range 145 to 195°C
• Mechanical controls for simple, reliable day-to-day operation
• Compatible with natural gas and LPG; R 3/4 BSP male gas connection
• Constructed from 304 stainless steel
• Supplied with baskets: accommodates 2 large or 3 standard baskets
• Integrated splashback included
• No undershelf fitted
• Dimensions: 600mm (W) x 805mm (D) x 1085mm (H)
• Packed weight: 143 kg
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 31
• Temperature Range: 145-195°C
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 25.0 kW
• Temperature Control: Thermostatic
• Display Type: Analog
