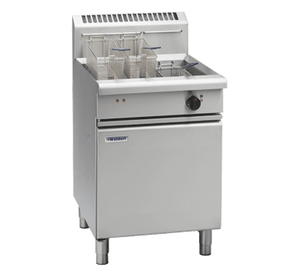

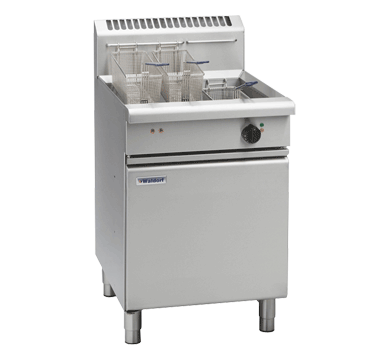

Waldorf FNL8130G-HPO 800 Series 600mm Single Pan Gas Fryer Low Back Version

The Waldorf FNL8130G-HPO is a 600mm single pan gas fryer from the 800 Series, designed for high-volume commercial kitchens that demand consistent frying output. Built from 304 stainless steel in New Zealand, it features a 31-litre oil capacity and a dual infrared burner system delivering a combined 140MJ/hr, achieving a production rate of 50kg/hr to keep pace with busy service periods.

The low back version suits kitchens where overhead clearance or bench integration is a priority without compromising performance. Mechanical controls and a thermostatic temperature range of 145–195°C make operation straightforward, while the infrared burner design supports efficient heat-up and recovery. The unit is supplied ready to work, with basket capacity for two large or three standard baskets included.

Key Benefits

• High production rate of 50kg/hr keeps up with peak service demand without slowing down the kitchen
• Dual infrared burners provide rapid heat recovery between loads, reducing wait times and maintaining oil temperature
• 31-litre oil capacity in a single pan allows large batch frying, reducing the frequency of oil top-ups during service
• Mechanical thermostatic controls deliver simple, reliable temperature management within a 145–195°C range
• Low back configuration suits tighter kitchen layouts or bench-height integration where a full splashback is not required
• Compatible with both natural gas and LPG, offering flexibility across different site connections via a standard R 3/4 BSP male fitting
• Constructed from 304 stainless steel for durability, hygiene compliance and ease of cleaning in demanding commercial environments
• Supplied with baskets included, allowing immediate operational use without additional accessory purchases

Key Features

• 600mm wide single pan gas fryer, part of the Waldorf 800 Series
• 31-litre oil capacity per pan
• Production rate of 50kg/hr
• 2 x 70MJ/hr infrared burners, totalling 140MJ/hr combined output
• Thermostatic temperature control ranging from 145°C to 195°C
• Analog display with mechanical controls for straightforward operation
• Low back version with splashback included
• Supplied with capacity for 2 large or 3 standard frying baskets
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; gas connection via R 3/4 (BSP) male fitting
• Electrical supply: 230–240V AC, 50Hz, 0.5A, 3-pin 10A cordset fitted (1P+N+E)
• No undershelf included in this configuration
• Manufactured in New Zealand
• 24-month warranty
• Dimensions: 600mm (W) x 805mm (D) x 1085mm (H); packed weight 148kg

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 127
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 31
• Temperature Range: 145-195°C
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Power Rating: 0.5A 3 pin 10A cordset fitted|1P+N+E|230-240 Vac|50Hz
• Temperature Control: Thermostatic
• Display Type: Analog
