Overview

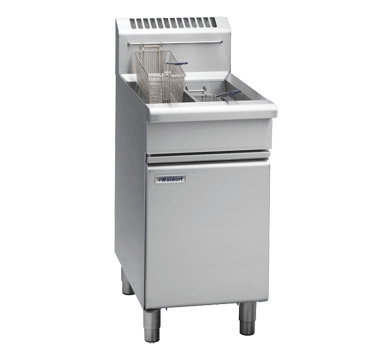

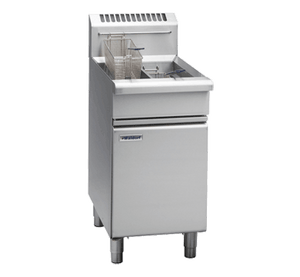

Waldorf FNL8226G 800 Series 450mm Twin Pan Gas Fryer Low Back Version

The Waldorf FNL8226G is a 450mm twin pan gas fryer from the respected 800 Series, designed and built in New Zealand for the demands of high-volume commercial kitchens. Each of the two independent pans holds 13 litres of oil, giving a combined 26-litre capacity, and the unit delivers a production rate of 31 kg/hr to keep pace during peak service periods.

Powered by two 45 MJ/hr infrared burners with thermostatic mechanical controls, the FNL8226G offers consistent, responsive temperature management across a range of 145 to 195°C. The low back configuration suits kitchens where overhead clearance or bench sightlines are a priority, and the 304 stainless steel construction throughout ensures durability and straightforward sanitation.

Key Benefits

• Twin independent 13-litre pans allow two different products to be fried simultaneously, maximising menu flexibility during busy service.
• A 31 kg/hr production rate supports high-throughput operations without compromising food quality or consistency.
• Infrared burner technology delivers rapid, even heat transfer for fast oil recovery between batches, reducing waiting time.
• Thermostatic mechanical controls maintain precise temperatures between 145 and 195°C, helping staff achieve repeatable frying results with minimal training.
• Low back design provides better sightlines across the cooking suite and suits venues with height restrictions or specific ventilation layouts.
• 304 stainless steel construction throughout resists corrosion, withstands heavy daily use, and makes cleaning and sanitising faster and more effective.
• Simple mechanical controls and an accessible design reduce downtime for cleaning, installation, and routine servicing.
• Compatible with both natural gas and LPG via a standard R 3/4 BSP male connection, providing installation flexibility across different sites.
• Supplied with two standard frying baskets, so the unit is operational straight from delivery without additional accessory purchases.

Key Features

• 450mm wide twin pan configuration with 13 litres oil capacity per pan (26 litres total)
• Two 45 MJ/hr infrared burners, totalling 90 MJ/hr burner output
• Overall power rating of 50 kW
• Production rate of 31 kg/hr
• Temperature range of 145 to 195°C with thermostatic control
• Analogue display with mechanical controls
• Low back (splashback) version for versatile suite integration
• 304 stainless steel construction throughout
• Accepts natural gas or LPG; R 3/4 BSP male gas connection
• Supplied with 2 standard frying baskets
• No undershelf included
• Manufactured in New Zealand
• 24-month warranty
• 800 Series product line

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 180
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 26
• Temperature Range: 145-195°C
• Fuel Type: Gas
• Number of Burners: 4
• Power Rating: 50.0 kW
• Temperature Control: Thermostatic
• Display Type: Analog
