Overview

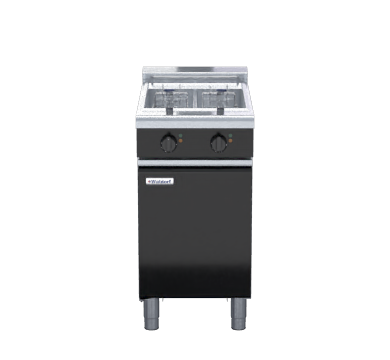

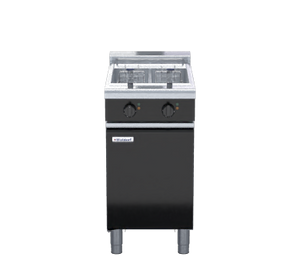

Waldorf FNLB8224E Bold 450mm Twin Pan Electric Fryer Low Back Version

The Waldorf FNLB8224E is a 450mm wide twin pan electric deep fryer from the Waldorf Bold range, purpose-built for high-volume commercial kitchen environments. Each pan holds 12 litres of oil, delivering a combined production rate of 31kg per hour, making it well suited to busy fish and chip shops, pubs, hotels and catering operations that demand consistent, rapid output.

The unit is constructed throughout from heavy-duty 304 stainless steel and features hinge-out counterbalanced heating elements for effortless cleaning and servicing, 25mm drain valves for quick oil changes, and a fully modular design for straightforward installation. Two frying baskets and a stainless steel lid are included as standard, and the front panels come in a default black vitreous enamel finish with alternative colour options also available.

Key Benefits

• A 31kg per hour production rate supports high-volume service periods without compromising throughput or product quality.
• Hinge-out counterbalanced heating elements provide full access to the pan, making routine cleaning and scheduled servicing fast and straightforward.
• A 25mm drain valve on each pan allows rapid, controlled oil drainage, reducing downtime during oil changes.
• A thermal overload safety cut-out guards against excessive temperatures, and a tilt switch immediately interrupts power to the elements whenever they are raised, protecting both equipment and kitchen staff.
• Fully modular construction simplifies installation and makes the unit easy to integrate into existing cooking suites or reconfigure as kitchen needs change.
• Mechanical thermostatic controls with a large, easy-to-read analogue scale give operators precise, repeatable temperature management without complex electronics.
• Two standard frying baskets and a stainless steel lid are included in the box, so the unit is ready for immediate use upon installation.
• Robust 304 stainless steel construction across the pan, splashback, side panels and legs ensures long-term durability and compliance with commercial hygiene standards.
• 150mm height-adjustable legs on 63mm diameter heavy-duty stainless steel tube allow the unit to be levelled precisely on uneven kitchen floors.

Key Features

• 450mm wide twin pan electric deep fryer in the Waldorf Bold series
• 12 litre oil capacity per pan (24 litres total)
• 31kg per hour combined production rate
• Three 2.83kW stainless steel heating elements per section
• Total power rating: 17kW, 3P+N+E, 400-415V AC, 50/60Hz (L1/L2/L3 each 23.6A)
• Mechanical thermostat with a control range of 90-200°C
• Large analogue control dial with easy-view graduated scale
• Thermal overload safety cut-out to protect against excessive operating temperatures
• Element tilt switch automatically cuts power to elements when lifted
• Indicator lights for power on and heating active status
• Hinge-out counterbalanced heating elements for full pan access
• 25mm (1 inch) drain valves on each pan for fast oil removal
• Stainless steel pan backed by a 10-year limited warranty; body fabricated from 1.5mm 304 stainless steel with fully welded bull-nose profile
• 1.5mm 304 stainless steel splashback (low back version)
• 1.2mm 304 stainless steel side panels
• Two-layer door construction with a 0.9mm 304 stainless steel outer skin
• Front panels finished in black vitreous enamel as standard, with additional colour options available
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel tube with adjustable feet
• Supplied standard with two frying baskets and a stainless steel lid
• Fully modular design for flexible installation and easy servicing
• Overall dimensions: 450mm W x 805mm D x 1085mm H
• Packed weight: 116kg
• Country of origin: New Zealand

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 26
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6A|L2 23.6A|L3 23.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
