Overview

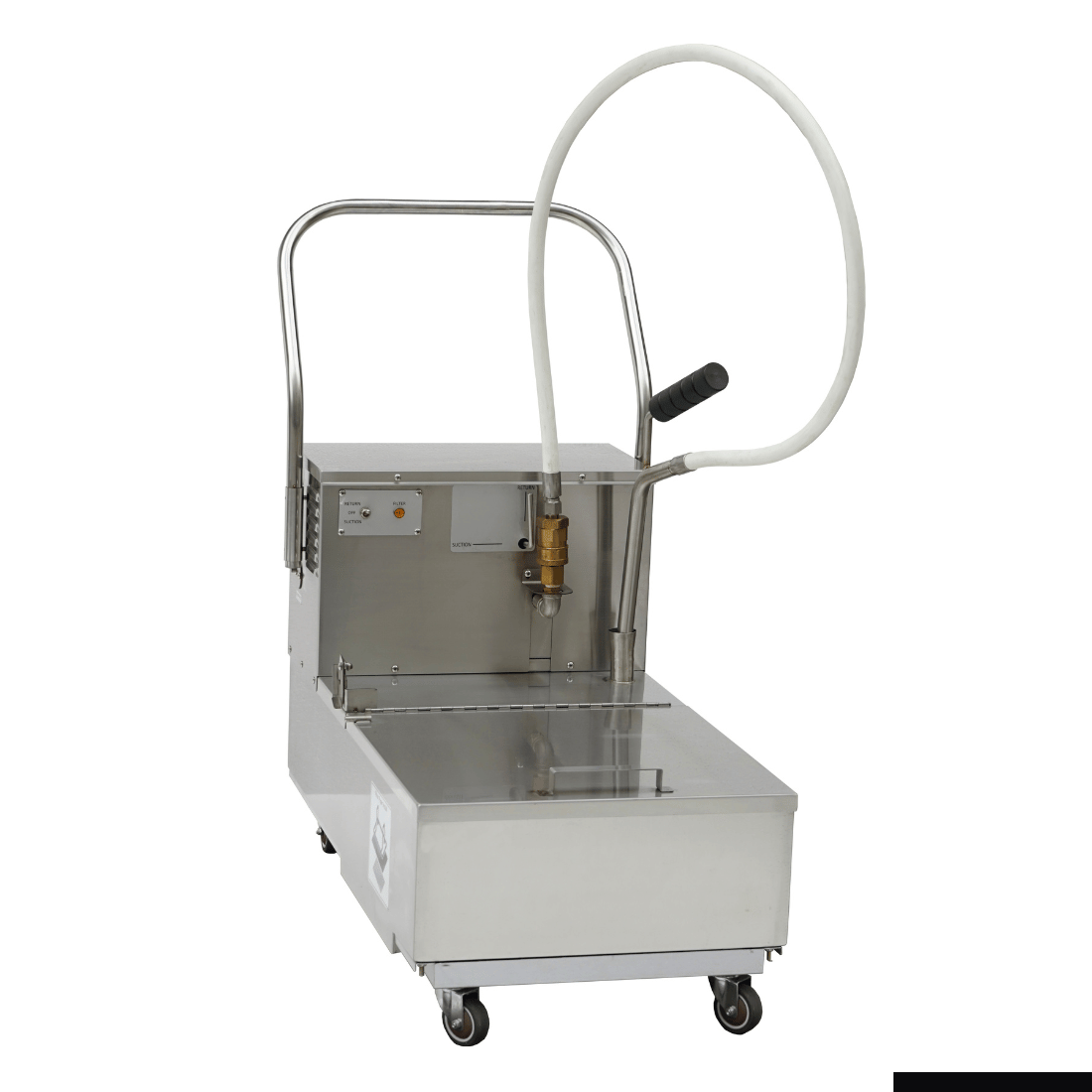

Frymax EOF-25 25L Electric Oil Filter Machine

The Frymax EOF-25 is a 25-litre electric oil filter machine designed to extend the usable life of frying oil in commercial kitchen environments. A reverse pump draws oil directly from the fryer for convenience, and a 3.5 GPM motor delivers an average flow rate of 13 litres per minute, making it practical for busy service periods.

Oil passes through a two-stage filtration process: a 300-micron pre-filter screen basket captures coarse food particles first, followed by a deeper 10-micron secondary filtration stage that removes finer contaminants. Built from stainless steel throughout and fitted with a quick-disconnect hose, the EOF-25 is straightforward to set up, clean and maintain. Please note this unit is not suitable for filtering animal fat.

Key Benefits

• Two-stage filtration removes both coarse and fine food particles, helping to preserve oil quality and reduce oil replacement costs.
• Reverse pump function draws oil directly from the fryer vat, eliminating the need for manual ladling and reducing mess and handling time.
• A 13 litre per minute average flow rate keeps filtration fast during busy service periods, minimising fryer downtime.
• 25-litre tank capacity accommodates batch filtering from large commercial fryers in a single pass.
• Quick-disconnect hose speeds up setup and breakdown between filtration sessions, supporting efficient kitchen workflow.
• Stainless steel construction throughout resists corrosion from hot oils and cleaning chemicals, supporting long-term durability.
• Compatibility with readily available 540 x 390 mm filter paper keeps ongoing consumable costs manageable.

Key Features

• 25-litre oil filter capacity suitable for commercial fryer operations
• Stainless steel construction throughout for durability and ease of cleaning
• Reverse pump for direct suction of oil from the fryer vat
• 300-micron pre-filter screen basket as the first filtration stage, capturing coarse debris
• 10-micron secondary filtration stage for removal of finer contaminants
• 3.5 GPM pump motor delivering an average flow rate of 13 litres per minute
• Quick-disconnect filtering hose for fast, tool-free setup and breakdown
• Compatible with 540 x 390 mm filter paper
• Not suitable for filtering animal fat
• 240V, 240W/10A power supply
• 1 Year Parts and Labour Warranty

Specifications

• Width (mm): 457
• Depth (mm): 727
• Height (mm): 914
• Weight (kg): 55
• Packed Width (mm): 550
• Packed Depth (mm): 840
• Packed Height (mm): 650
• Power Delivery: 240V, 240W/10A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour Warranty
