Overview

Frymax VX15E Chip Dump Heated Holding Station

The Frymax VX15E is a heated chip dump and holding station designed to sit alongside a commercial fryer and keep cooked product warm and ready to serve at the point of service. Built with a steel body, stainless steel front door and adjustable stainless steel feet, it attaches securely to the left side, right side or both sides of compatible Frymax fryers, integrating neatly into an existing fry station.

An infrared heating element maintains food temperatures between 22°C and 60°C, while a stainless steel sloped drain top with a removable grease collector simplifies both food removal and routine cleaning. The cabinet interior accommodates three 1/1 GN pan runners for organised holding, and the removable top allows thorough access for deep cleaning when required.

Key Benefits

• Infrared heating holds cooked product within a 22°C to 60°C range, keeping chips and other fried foods at consistent serving temperature without over-cooking.
• Sloped stainless steel drain top channels away excess grease and makes transferring product to service containers quick and efficient during busy service periods.
• Removable grease collector simplifies cleanup at end of service, reducing downtime between shifts.
• Mounts to the left, right or both sides of compatible Frymax fryers, allowing the station to be configured to suit the layout of any fry line.
• Three 1/1 GN pan runners inside the cabinet provide organised holding capacity and flexibility when handling multiple product types simultaneously.
• Easy-access storage area behind the front door keeps packaging, liners or small service items close at hand without cluttering the workspace.
• Separate lighting control lets operators illuminate the holding area independently of the heating element, useful for display or service visibility.
• Fully removable top provides unobstructed access to the interior for thorough cleaning and maintenance.

Key Features

• Steel body construction with stainless steel front door
• Adjustable stainless steel feet for levelling on uneven floors

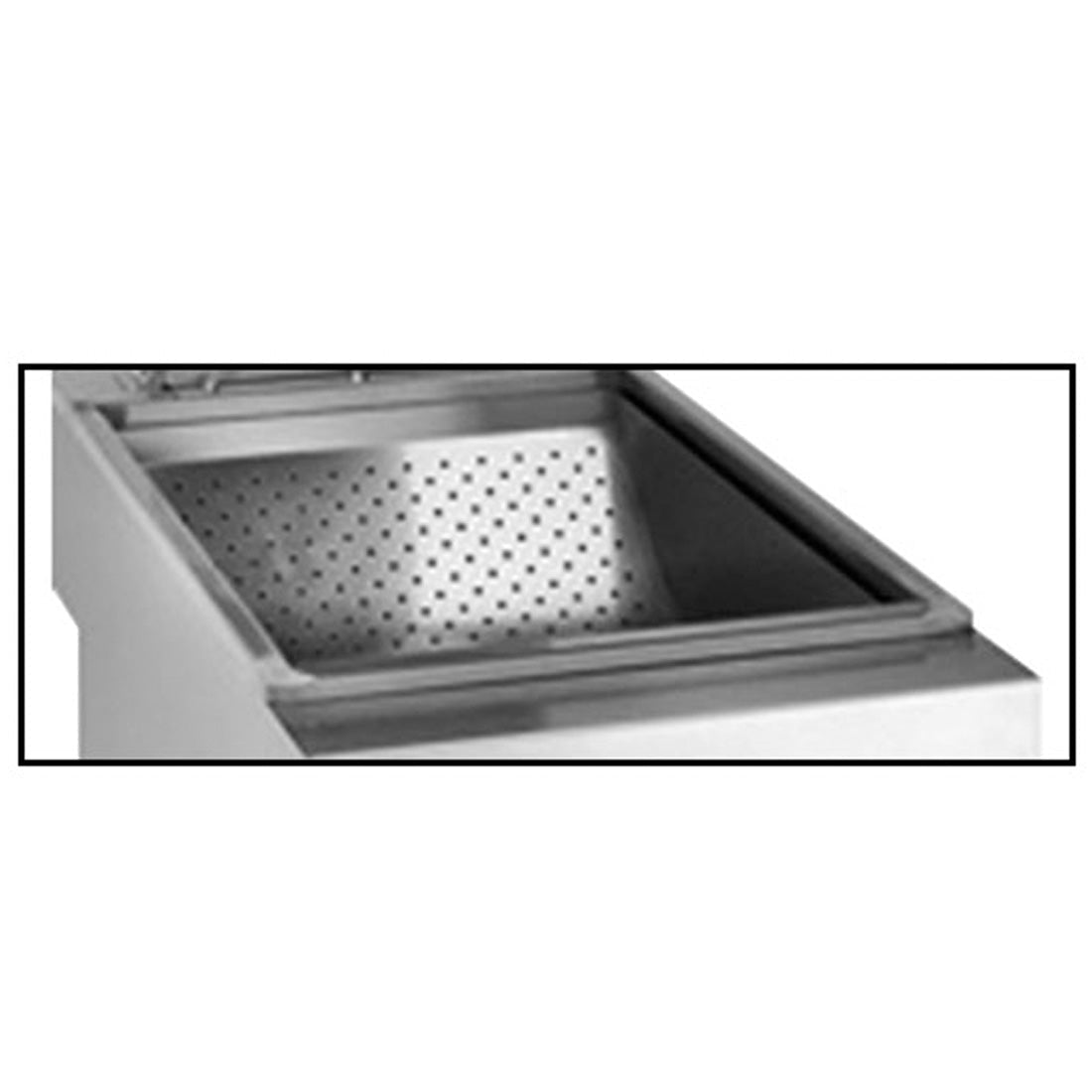

• Stainless steel sloped drain top to assist grease runoff and easy food removal
• Removable grease collector beneath the drain top for straightforward cleaning
• Infrared heating element with temperature range of 22°C to 60°C
• Three 1/1 GN pan runners inside the cabinet (pans not included)
• Easy-access storage area located behind the front door
• Separate control for internal lighting
• Removable top for thorough cleaning access
• Designed to attach securely to the left side, right side or both sides of compatible Frymax fryers
• 240V; 940W power supply
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 402
• Depth (mm): 750
• Height (mm): 1250
• Weight (kg): 80.25
• Packed Width (mm): 500
• Packed Depth (mm): 830
• Packed Height (mm): 850
• Shipping Weight: 40
• Power Delivery: 240V; 940W
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Temperature Range: 22 to 60°C. Top Features:
