Overview

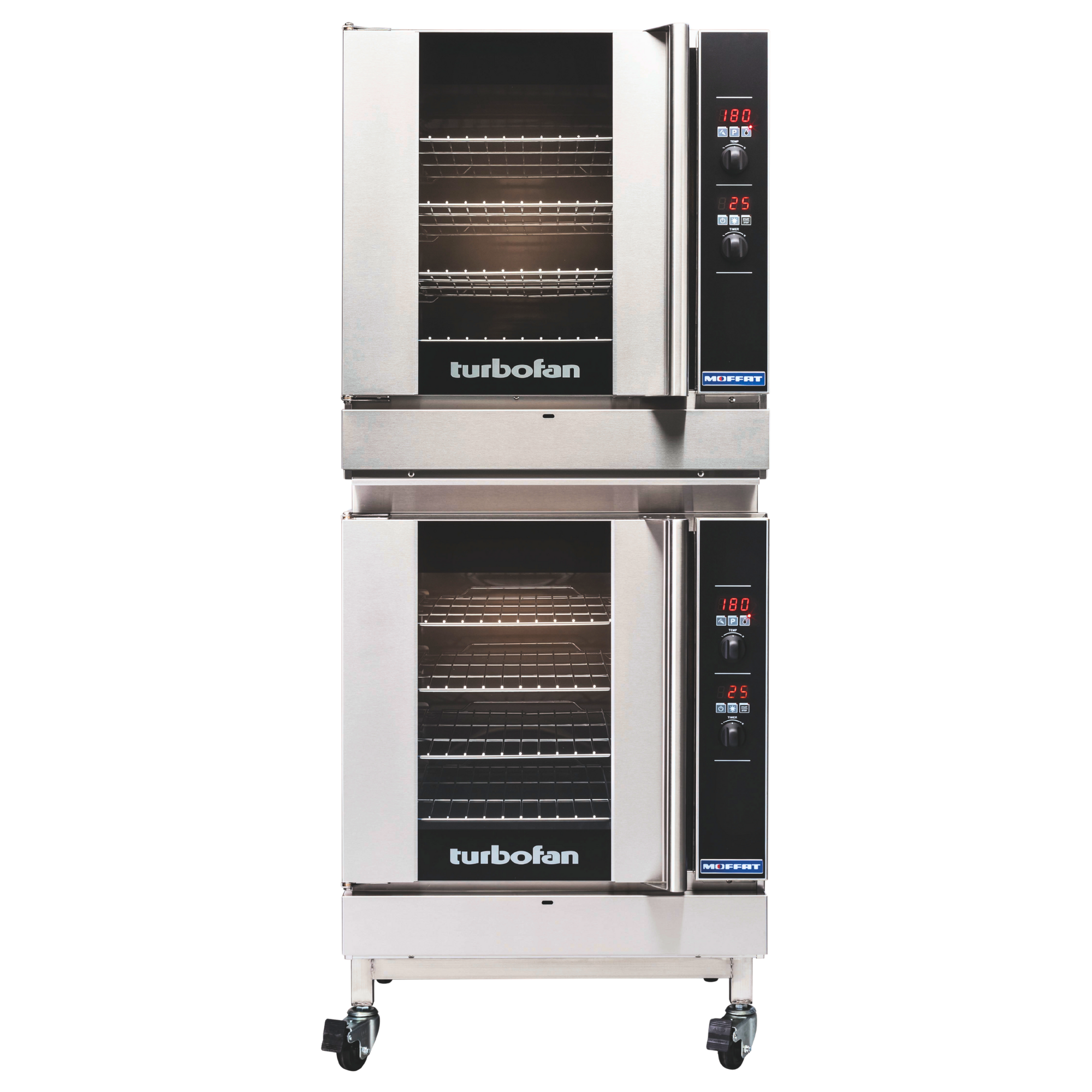

Turbofan G32D4/2 Full Size Tray Digital Gas Convection Ovens Double Stacked

The Turbofan G32D4/2 is a double-stacked full-size gas convection oven system built for high-volume commercial kitchens, bakeries, cafes, restaurants and catering operations. Combining two independent four-tray ovens on a single stand, it delivers a combined capacity of eight full-size trays within a compact footprint, making it one of the smallest double-stacked configurations available in the industry. Constructed in New Zealand from 304 stainless steel, the unit accepts both natural gas and LPG and connects to a standard 10A single-phase power supply.

Each oven cavity features a vitreous enamel chamber, a patented 35 MJ/hr infrared burner system and a bi-directional reversing fan motor that circulates heat evenly for consistent baking, roasting and reheating results. Advanced digital controls offer manual and programmed operation with up to 20 programs across three cooking stages, an electronic timer with countdown and count-up modes, five-level moisture injection, and optional core probe cooking. The safe-touch vented side-hinged door with a stay-cool handle, dual halogen cavity lamps and plug-in continuous door seal round out a design focused on operator safety, ease of cleaning and day-to-day reliability.

Key Benefits

• Double-stacked configuration provides eight-tray total capacity while occupying the same floor space as a single oven, maximising output in kitchens where space is limited.
• Bi-directional reversing fan motor ensures even heat distribution throughout each cavity, reducing hot spots and delivering consistent results across every tray.
• Up to 20 programmable recipes with three-stage cooking and stage-end alarms simplify complex baking or roasting schedules and reduce reliance on operator experience.
• Five-level moisture injection plus manual injection mode allows precise humidity control, improving crust development, moisture retention and overall product quality.
• Optional core probe kit enables accurate internal temperature monitoring for precise, repeatable results when cooking proteins or delicate baked goods.
• Patented 35 MJ/hr infrared burner system delivers efficient gas combustion, helping to reduce energy consumption during heavy production periods.
• Safe-touch vented side-hinged door with a stay-cool handle and RH hinge field-convertible option enhances operator safety and suits kitchens with varying layout requirements.
• Plug-in 10A cordset and standard gas connection simplify installation and allow the unit to be repositioned or serviced with minimal disruption.
• Vitreous enamel oven chamber and plug-in continuous door seal are easy to clean and maintain, supporting food safety and reducing downtime between service periods.

Key Features

• Double-stacked configuration comprising two independent ovens, each with 4 x 460 mm x 660 mm full-size sheet pan capacity (also accepts 4 x 600 mm x 400 mm trays)
• 110 mm tray spacing per oven cavity
• Combined total capacity of eight full-size trays
• 35 MJ/hr patented infrared burner system per oven
• Bi-directional reversing fan motor for even heat circulation
• Vitreous enamel oven chamber for durability and easy cleaning
• Digital display with large 20 mm high characters for time and temperature
• Electronic thermostat control
• Electronic burner ignition and safety control system
• Electronic timer with both countdown and count-up modes
• Manual mode and program mode operation
• 20 programs with three-stage cooking and stage-end alarms
• Moisture injection mode with five selectable levels plus manual injection
• Core probe program cooking capability (optional core probe kit required)
• Safe-touch vented side-hinged door with standard left-hand hinge; field-convertible to right-hand hinge
• Stay-cool door handle
• Plug-in continuous oven door seal for easy removal and cleaning
• Dual halogen oven lamps for clear cavity visibility
• 4 oven wire racks supplied per oven (8 racks total)
• 304 stainless steel exterior construction
• 10A plug-in cordset fitted for single-phase 230-240V connection
• Compatible with natural gas and LPG; ½" BSPT male gas connection
• Adjustable feet base stand included
• Assembly required for double stacking
• Manufactured in New Zealand
• Compatible with Turbofan P Series prover/holding cabinets

Specifications

• Width (mm): 735
• Depth (mm): 856
• Height (mm): 1810
• Weight (kg): 371.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: ½” BSPT male
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric|Gas
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
