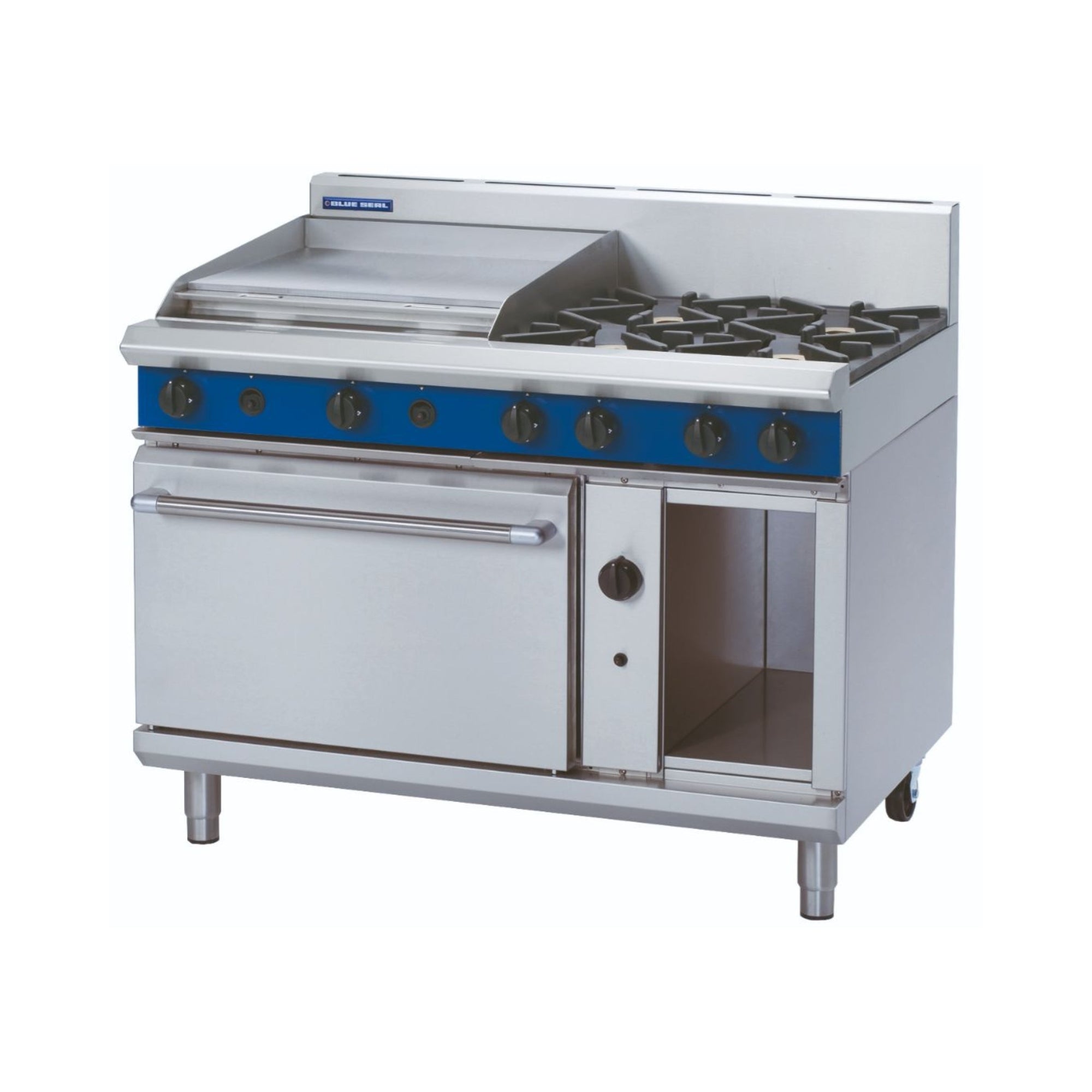

Blue Seal G508B Evolution Series 1200mm Gas Range Static Oven

The Blue Seal G508B Evolution Series is a 1200mm wide commercial gas range combining a four-burner cooktop, a 600mm smooth griddle plate, and a GN 2/1 gas static oven into a single freestanding unit. Built in New Zealand from heavy-duty 304 stainless steel, it is engineered for high-volume kitchens in restaurants, hotels, and catering operations that demand multi-zone cooking capability and long-term reliability.

The cooktop delivers four 28MJ/hr open burners alongside two 20MJ/hr griddle burners, allowing chefs to boil, sauté, grill, and bake simultaneously during busy service periods. The integrated static oven features a fully welded vitreous enamelled liner, thermostatic control across 80–300°C, and a GN 2/1 capacity, supporting consistent batch roasting and baking results. A storage cabinet on the right-hand side adds practical utility, and the unit is available in both Natural Gas and LPG configurations.

Key Benefits

• Multi-zone cooking across burners, griddle, and oven lets kitchen teams run multiple preparations concurrently, reducing service times.
• Four high-output 28MJ/hr open burners provide rapid heat response and precise flame control for sautéing, boiling, and saucing.
• The 600mm smooth griddle plate offers generous surface area for breakfast service, meat cookery, and high-throughput service dishes.
• GN 2/1 oven capacity with even heat distribution supports efficient batch cooking for roasting and baking during peak periods.
• Flame failure protection on every burner enhances kitchen safety by automatically cutting gas if the flame is extinguished.
• Adjustable feet and two rear rollers allow straightforward levelling and repositioning during cleaning or reconfiguration.
• Vitreous enamelled oven liner and removable cast iron burner components simplify daily cleaning and reduce downtime between services.
• Heavy-duty reinforced control knobs and a welded drop-down oven door frame are built to withstand the rigours of continuous commercial use.
• Available in Natural Gas or LPG, providing flexible installation options across a wide range of commercial kitchen setups.

Key Features

• 1200mm wide freestanding gas range with integrated GN 2/1 static oven
• 4 x 28MJ/hr removable heavy-duty cast iron open burners with vitreous enamel pot stands
• 2 x 20MJ/hr griddle burners powering a 600mm smooth griddle plate, positioned on the right-hand side as standard
• Total gas rating: 182MJ/hr (50.5kW)
• Thermostatic oven temperature control ranging from 80°C to 300°C
• Flame failure protection on all burners (cooktop and griddle)
• Fully welded and vitreous enamelled oven liner for easy cleaning and durability
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Storage cabinet integrated on the right-hand side
• Heavy-duty reinforced control knobs
• Adjustable feet and 2 additional rear rollers for levelling and mobility
• 165mm splashback included; overall height including splashback 1085mm
• 304 stainless steel exterior construction
• R 3/4 (BSP) male gas connection
• Compatible with Natural Gas or LPG — specify gas type at time of ordering
• Freestanding installation type
• Country of origin: New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 449
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 4
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
