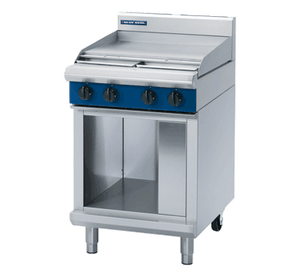

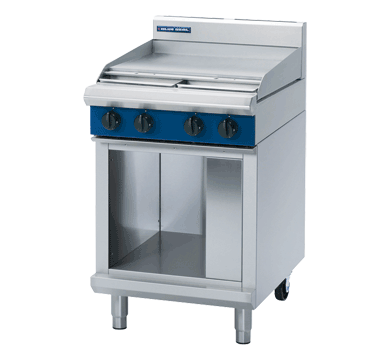

Blue Seal G514B-CB Evolution Series 600mm Gas Cooktop with Cabinet Base

The Blue Seal G514B-CB is a 600mm commercial gas cooktop from the Evolution Series, combining a full-width smooth mild steel griddle plate with 2 x 20MJ/hr dedicated griddle burners, all mounted on a fully enclosed single-door stainless steel cabinet base. Manufactured in New Zealand from 304 stainless steel, it suits cafés, restaurants, hotels, and busy hospitality kitchens that need reliable flat-top grilling alongside practical underbench storage in a compact, freestanding footprint.

Engineered for heavy daily use, the G514B-CB features flame failure protection on all burners, push-button piezo ignition, removable heavy-duty cast iron burners, vitreous enamel pot stands, and heavy-duty reinforced control knobs. Adjustable feet and two additional rollers make positioning and cleaning straightforward, while its modular Evolution Series design allows it to integrate seamlessly into a complete Blue Seal commercial kitchen suite. Available in both Natural Gas and LPG configurations.

Key Benefits

• Full-width 595 x 530mm smooth mild steel griddle surface is ideal for simultaneously cooking burgers, bacon, eggs, steaks, and seafood during high-volume service.
• Flame failure protection on every burner automatically cuts gas supply if the flame is extinguished, improving kitchen safety.
• Push-button piezo ignition allows fast, tool-free lighting so service can begin without delay.
• Enclosed single-door cabinet base provides valuable, lockable underbench storage for cookware, trays, and kitchen essentials, reducing bench clutter.
• Removable cast iron burners and vitreous enamel pot stands withstand daily commercial punishment and can be lifted out quickly for thorough cleaning.
• Heavy-duty reinforced control knobs with clear, non-fade markings allow precise heat adjustment across the full range without the need for frequent replacement.
• Adjustable feet combined with two rear rollers make it easy to level the unit on uneven floors and reposition it for cleaning or servicing.
• Modular Evolution Series design integrates with other Blue Seal 600mm suite components, enabling a scalable, matched commercial kitchen line-up.

Key Features

• 600mm wide freestanding gas cooktop with full-width griddle plate, mounted on an enclosed cabinet base
• 2 x 20MJ/hr dedicated griddle burners; total gas rating 40MJ/hr (11kW)
• 20mm thick smooth mild steel griddle plate with a cooking surface area of 595 x 530mm
• Flame failure protection on all burners for safe operation
• Push-button piezo ignition on griddle burners
• Removable heavy-duty cast iron burners with forged brass caps for consistent flame spread and non-clogging performance
• Vitreous enamel cast iron pot stands with extended finger supports for added stability with smaller pans
• Heavy-duty reinforced control knobs with strengthened shaft sleeves and clear, non-fade markings
• Thermostat temperature control with a range of 90–300°C
• Fully enclosed stainless steel cabinet base with a single hinged door
• 165mm high splashback included
• 304 stainless steel construction throughout
• Adjustable feet and 2 rear rollers for easy levelling and repositioning
• Gas connection: R 3/4 BSP male
• Compatible with Natural Gas or LPG (specify at time of ordering)
• Freestanding installation type
• Country of origin: New Zealand
• Part of the modular Blue Seal Evolution Series for integration into complete commercial kitchen suites

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 116
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 4
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
