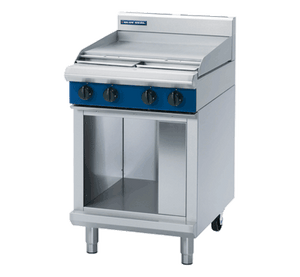

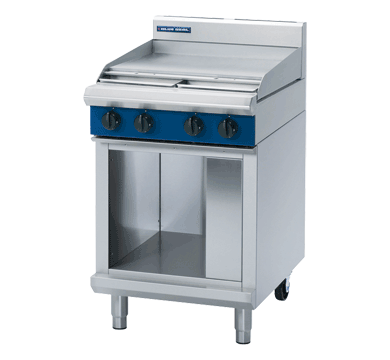

Blue Seal G514C-CB Evolution Series 600mm Gas Cooktop with Cabinet Base

The Blue Seal G514C-CB Evolution Series is a 600mm commercial gas cooktop mounted on a single-door stainless steel cabinet base, combining two 28MJ/hr open burners with a 300mm smooth mild steel griddle plate powered by a dedicated 20MJ/hr burner. Constructed from 304 stainless steel and built in New Zealand, this freestanding unit is engineered for the daily rigours of cafes, restaurants, hotels, and high-volume hospitality kitchens.

The Evolution Series design prioritises practical kitchen workflow, with the griddle positioned on the right-hand side as standard, push-button piezo ignition for fast start-up, and flame failure protection across all burners for operational safety. The enclosed cabinet base provides secure underbench storage for cookware and kitchen essentials, while adjustable feet and rear rollers make positioning and repositioning straightforward. The unit is available in both natural gas and LPG configurations.

Key Benefits

• Two 28MJ/hr open burners deliver rapid, responsive heat ideal for boiling, simmering, sautéing, and high-volume stockpot cooking.
• A 300mm smooth mild steel griddle with its own 20MJ/hr burner and push-button piezo ignition expands cooking versatility without requiring a separate appliance.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, improving kitchen safety during busy service.
• Removable cast iron burners with forged brass caps resist clogging and deliver consistent flame spread, reducing maintenance downtime.
• Thicker vitreous enamel pot stands with extended finger supports allow smaller pans to be slid safely across the cooktop without tipping, improving speed and safety.
• Heavy-duty reinforced control knobs with clear, non-fade markings allow precise heat adjustment from high output to a low simmer, reducing the need for frequent knob replacement.
• The enclosed cabinet base with hinged door adds valuable, organised underbench storage within the same 600mm footprint, improving kitchen workflow efficiency.
• Adjustable feet combined with two rear rollers make levelling and repositioning easy, even in confined kitchen layouts.
• Modular Evolution Series compatibility allows this unit to integrate seamlessly into a complete Blue Seal commercial kitchen suite.

Key Features

• 2 x 28MJ/hr heavy-duty open gas burners with removable cast iron construction and forged brass caps for consistent, non-clogging flame distribution
• 1 x 20MJ/hr griddle burner with push-button piezo ignition; griddle positioned on the right-hand side as standard
• 300mm smooth mild steel griddle plate, 20mm thick, with a cooking surface area of 295 x 530mm
• Thermostat temperature control across a range of 90-300°C for the griddle
• Flame failure protection on all burners (open burners and griddle burner)
• Vitreous enamel cast iron pot stands with extended finger supports for improved small pan stability
• Heavy-duty reinforced control knobs with strengthened shaft sleeves and non-fade markings
• Enclosed single-door hinged cabinet base constructed from 304 stainless steel for underbench storage
• 165mm rear splashback included
• Adjustable feet with 2 additional rear rollers for easy levelling and repositioning
• Total gas rating: 76MJ/hr (21kW)
• Available in natural gas or LPG; R 3/4 (BSP) male gas connection
• Freestanding installation; 304 stainless steel construction throughout
• Country of origin: New Zealand
• Part of the modular Blue Seal Evolution Series, compatible with other series components for a complete kitchen suite

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 116
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
