Overview

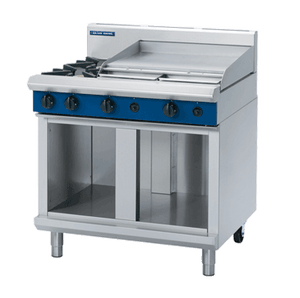

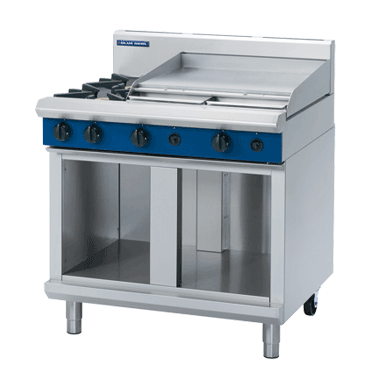

Blue Seal G516B-CB Evolution Series 900mm Gas Cooktop with Cabinet Base

The Blue Seal G516B-CB Evolution Series is a 900mm freestanding commercial gas cooktop that brings together two high-output 28MJ/hr open burners and a right-hand 600mm smooth mild steel gas griddle plate, all mounted above a fully enclosed stainless steel cabinet base. Built in New Zealand from 304 stainless steel throughout, this unit is engineered to handle the sustained demands of busy restaurants, cafés, hotels, pubs, and institutional kitchens that need both open-flame and flat-top cooking within a single, space-efficient footprint.

The open burner section uses removable cast iron burners fitted with precision-machined brass caps that resist clogging and promote consistent flame spread, supported by vitreous enamel pot stands with extended finger supports for added stability with smaller cookware. The 600mm griddle is powered by two 20MJ/hr burners and features push-button piezo ignition, while flame failure protection is standard across every burner position. A hinged-door cabinet base, adjustable feet, and two rear rollers round out a unit designed as much for practical daily use as it is for cooking performance.

Key Benefits

• Two 28MJ/hr open burners deliver rapid, high-output heat suited to boiling, simmering, sautéing, and wok-style cooking throughout peak service periods.
• The 600mm smooth mild steel griddle, rated at 20MJ/hr per burner, produces even surface heat across the entire plate, making it ideal for bacon, eggs, burgers, steaks, and full breakfast menus.
• Flame failure protection fitted to every burner automatically shuts off the gas supply if a flame goes out, minimising safety risks in fast-paced kitchen environments.
• Push-button piezo ignition on the griddle section allows quick, tool-free startup without the need for a separate ignition source.
• Pot stands with extended vitreous enamel fingers offer greater support for small pots and pans, reducing the likelihood of tip-overs during a busy service.
• The fully enclosed cabinet base with a single hinged door provides on-the-spot storage for trays, cookware, and utensils, supporting better workflow and kitchen organisation.
• Heavy-duty reinforced control knobs with strengthened shaft sleeves and clear, non-fade markings allow precise adjustment from full output down to a gentle simmer without requiring frequent replacement.
• Adjustable feet combined with two rear rollers make it straightforward to level the unit on uneven floors and to reposition it for cleaning or routine maintenance.
• Compatible with both natural gas and LPG, giving operators the flexibility to suit different site gas supply requirements.

Key Features

• 900mm wide freestanding unit combining a 2-burner open cooktop with a 600mm smooth gas griddle plate
• 2 x 28MJ/hr removable cast iron open burners with precision-machined brass caps for consistent, non-clogging flame distribution
• 2 x 20MJ/hr griddle burners; total unit gas rating of 96MJ/hr (26.6kW)
• 20mm thick smooth mild steel griddle plate positioned on the right-hand side as standard
• Push-button piezo ignition on the griddle section for fast, tool-free lighting
• Flame failure safety protection fitted to all burners
• Vitreous enamel cast iron pot stands with extended finger supports for improved small-pan stability
• Heavy-duty reinforced control knobs with strengthened shaft sleeves and clear, non-fade markings
• Fully enclosed 304 stainless steel cabinet base with single hinged door for underbench storage
• 165mm rear splashback included
• Adjustable feet plus two rear rollers for easy levelling and repositioning
• Constructed from 304 stainless steel throughout for hygiene and corrosion resistance
• Compatible with natural gas or LPG (specify at time of ordering)
• R 3/4 BSP male gas connection
• Freestanding installation type
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 245
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
