Overview

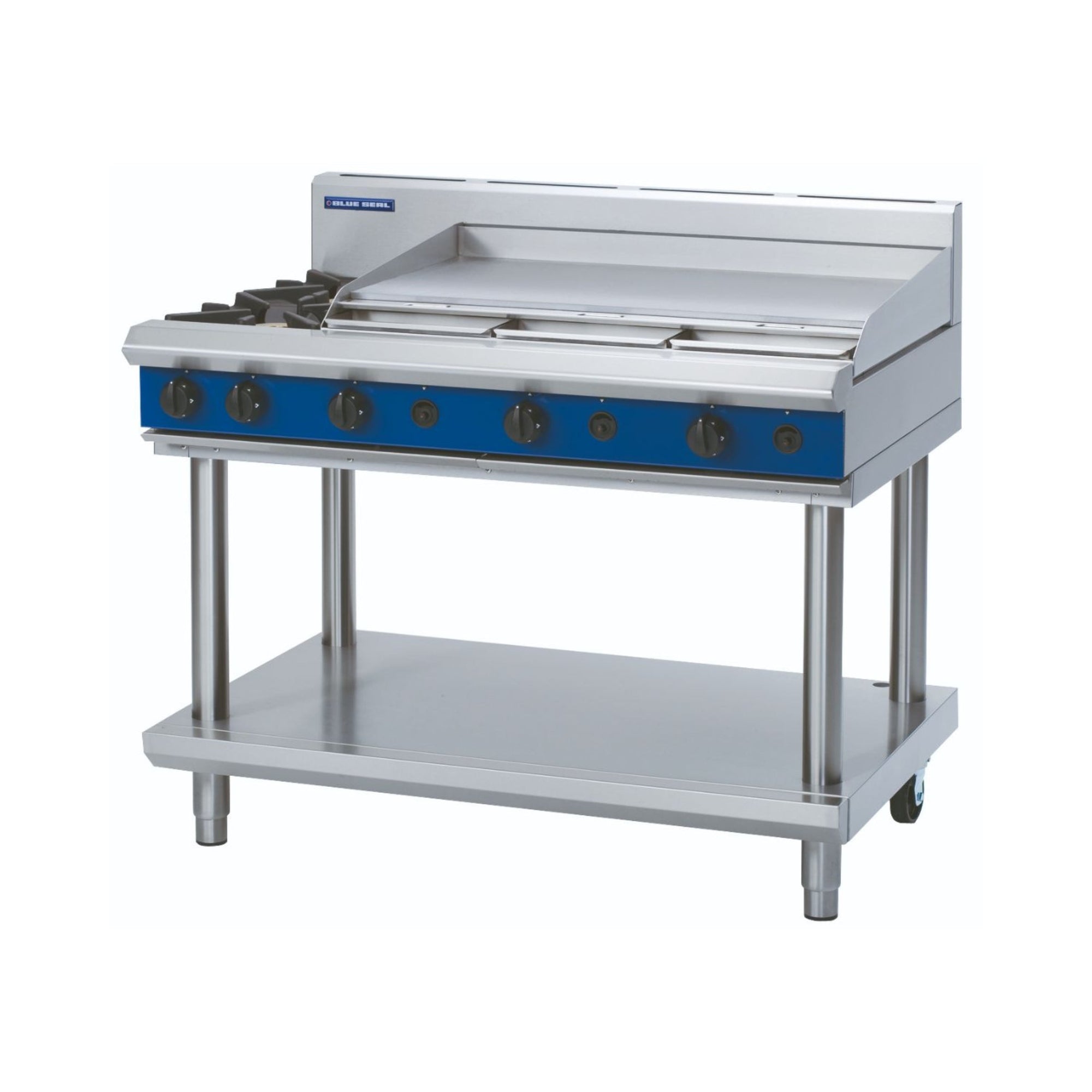

Blue Seal G518A-LS Evolution Series 1200mm Gas Cooktop with 900mm Griddle on Leg Stand

The Blue Seal G518A-LS is a heavy-duty 1200mm combination gas cooktop and 900mm griddle unit from the Evolution Series, mounted on a stainless steel leg stand for freestanding use in professional commercial kitchens. It combines two high-output 28MJ/hr open burners with three 20MJ/hr griddle burners, delivering a total gas rating of 116MJ/hr (32.2kW) across a versatile cooking surface suited to high-volume service. Available in both Natural Gas and LPG configurations, it is manufactured in New Zealand from 304 stainless steel.

Designed with operator safety and ease of maintenance at the forefront, every burner is fitted with flame failure protection, while the griddle features push-button piezo ignition for quick, reliable start-up. Removable cast iron burners, vitreous enamel pot stands, a framed top for suite connection, and a fully modular design make this unit straightforward to clean, service, and integrate into a matched cooking suite. Four stainless steel bench legs with adjustable feet and two additional rollers provide stable placement and convenient repositioning.

Key Benefits

• High total output of 116MJ/hr across five burners supports fast, simultaneous cooking across both open-flame and griddle surfaces during peak service.
• Flame failure protection on all burners automatically shuts off the gas supply if a flame is extinguished, reducing safety risk in a busy kitchen environment.
• Push-button piezo ignition on the griddle allows quick, tool-free start-up without the need for a separate lighter or match.
• Removable cast iron burners simplify deep cleaning and allow individual components to be pulled out for inspection or replacement without specialist tools.
• Vitreous enamel pot stands resist staining and corrosion while providing a smooth surface that wipes down quickly between services.
• Adjustable feet and two built-in rollers let operators level the unit on uneven floors and reposition it easily for cleaning or reconfiguration.
• Fully modular construction with a framed top allows this unit to connect flush with other Evolution Series equipment for a matched, professional suite layout.
• Heavy-duty reinforced control knobs withstand repeated, forceful use in demanding commercial conditions without loosening or degrading.
• Manufactured in New Zealand from 304 stainless steel with a 20mm smooth mild steel griddle plate, the unit is built for long-term durability and consistent performance.

Key Features

• Two 28MJ/hr open burners with variable high-to-low control for precise heat adjustment
• Three 20MJ/hr griddle burners providing even heat distribution across the 900mm griddle surface
• Total gas rating of 116MJ/hr (32.2kW)
• 20mm thick smooth mild steel griddle plate with a cooking surface area of 892 x 530mm
• Push-button piezo ignition on the griddle for fast, reliable start-up
• Flame failure protection on all five burners as a standard safety feature
• Removable heavy-duty cast iron open burners for easy cleaning and maintenance
• Vitreous enamel pot stands for durability and straightforward cleaning
• Heavy-duty reinforced control knobs rated for intensive commercial use
• Four stainless steel bench legs with adjustable feet for levelling on uneven surfaces
• Two additional rollers integrated into the leg stand for easy repositioning
• 165mm splashback included; overall height including splashback is 1085mm, bench height is 915mm
• Suite-matching undershelf included
• Framed top designed for connection to adjacent cooktop modules in a matched suite
• Fully modular Evolution Series design for flexible suite configuration
• 304 stainless steel construction throughout
• Freestanding, leg stand-mounted installation
• Compatible with both Natural Gas and LPG; gas type must be specified at time of order
• 3/4 BSP male gas connection
• Manufactured in New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 216
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
