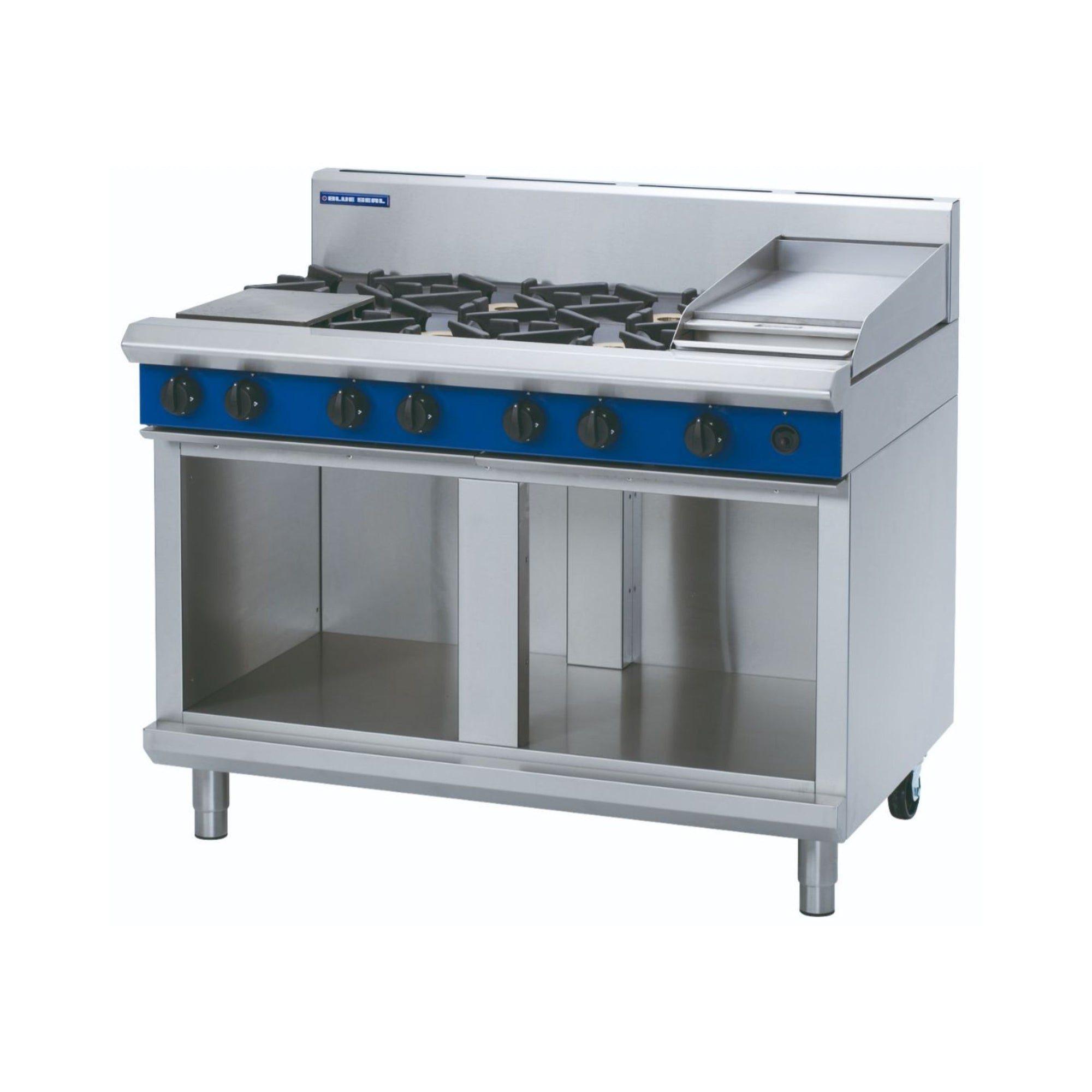

Blue Seal G518C-CB Evolution Series 1200mm Gas Cooktop with Cabinet Base

The Blue Seal G518C-CB Evolution Series combines six high-output open burners with a 300mm smooth mild steel griddle plate, all mounted on a robust stainless steel cabinet base. Manufactured in New Zealand from 304 stainless steel, this freestanding unit is built to handle the relentless demands of professional commercial kitchens, delivering a total gas rating of 188 MJ/hr (52.2 kW) across both cooking surfaces.

Designed with practical kitchen workflow in mind, the G518C-CB features flame failure protection on every burner, push-button piezo ignition on the griddle, and heavy-duty cast iron burners with vitreous enamel pot stands that resist daily punishment and clean up quickly. Adjustable feet and two additional rollers make levelling and repositioning straightforward, while a fully modular design allows the unit to be matched within a suite of Blue Seal Evolution Series equipment.

Key Benefits

• Six 28 MJ/hr open burners deliver exceptional heat output, allowing large-volume cooking tasks to be completed faster across the full high-to-low heat range.
• The 300mm smooth mild steel griddle on the right-hand side provides a versatile secondary cooking surface ideal for proteins, eggs and breakfast items alongside burner cooking.
• Flame failure protection on all burners automatically cuts gas if a flame is extinguished, reducing risk in a busy kitchen environment.
• Push-button piezo ignition on the griddle enables quick, reliable startup without needing a separate lighter or match.
• Extended pot support fingers on the heavy-duty vitreous enamel trivets allow smaller pans and pots to be slid across the cooktop surface without tipping, improving safety and speed.
• Adjustable feet combined with two additional rollers make it easy to level the unit on uneven floors and reposition it for cleaning or service without heavy lifting.
• Fully modular construction allows the G518C-CB to be matched alongside other Evolution Series equipment for a consistent, professional suite finish.
• Removable cast iron burners, vitreous enamel pot stands and a double-skin stainless steel cabinet interior simplify daily cleaning and routine maintenance.
• Compatible with both natural gas and LPG, giving operators flexibility across different site configurations.

Key Features

• Six open burners each rated at 28 MJ/hr, providing variable high-to-low heat control for versatile cooking
• One griddle burner rated at 20 MJ/hr with push-button piezo ignition
• 300mm smooth mild steel griddle plate positioned on the right-hand side as standard
• Total gas rating of 188 MJ/hr (52.2 kW)
• Griddle plate thickness: 20mm smooth mild steel
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners with forged brass caps for consistent flame spread and a non-clogging design
• Heavy-duty vitreous enamel pot stands with extended finger supports to stabilise smaller cookware
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves
• Cabinet base constructed from double-skin 0.9mm 304 stainless steel interior and exterior
• Hinged single-door cabinet base for accessible under-counter storage
• 165mm stainless steel splashback included
• Adjustable feet for precise levelling plus two additional rollers for easy mobility
• Freestanding, fully modular design for integration into a matched Evolution Series suite
• 304 stainless steel construction throughout
• Available in natural gas or LPG configurations
• Gas connection: R 3/4 (BSP) male
• Manufactured in New Zealand
• Overall dimensions: 1200mm W x 812mm D x 915mm H (1085mm H including splashback)

Specifications

• Width (mm): 1200
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 528.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 278
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 295 x 530
• Number of Burners: 6
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
