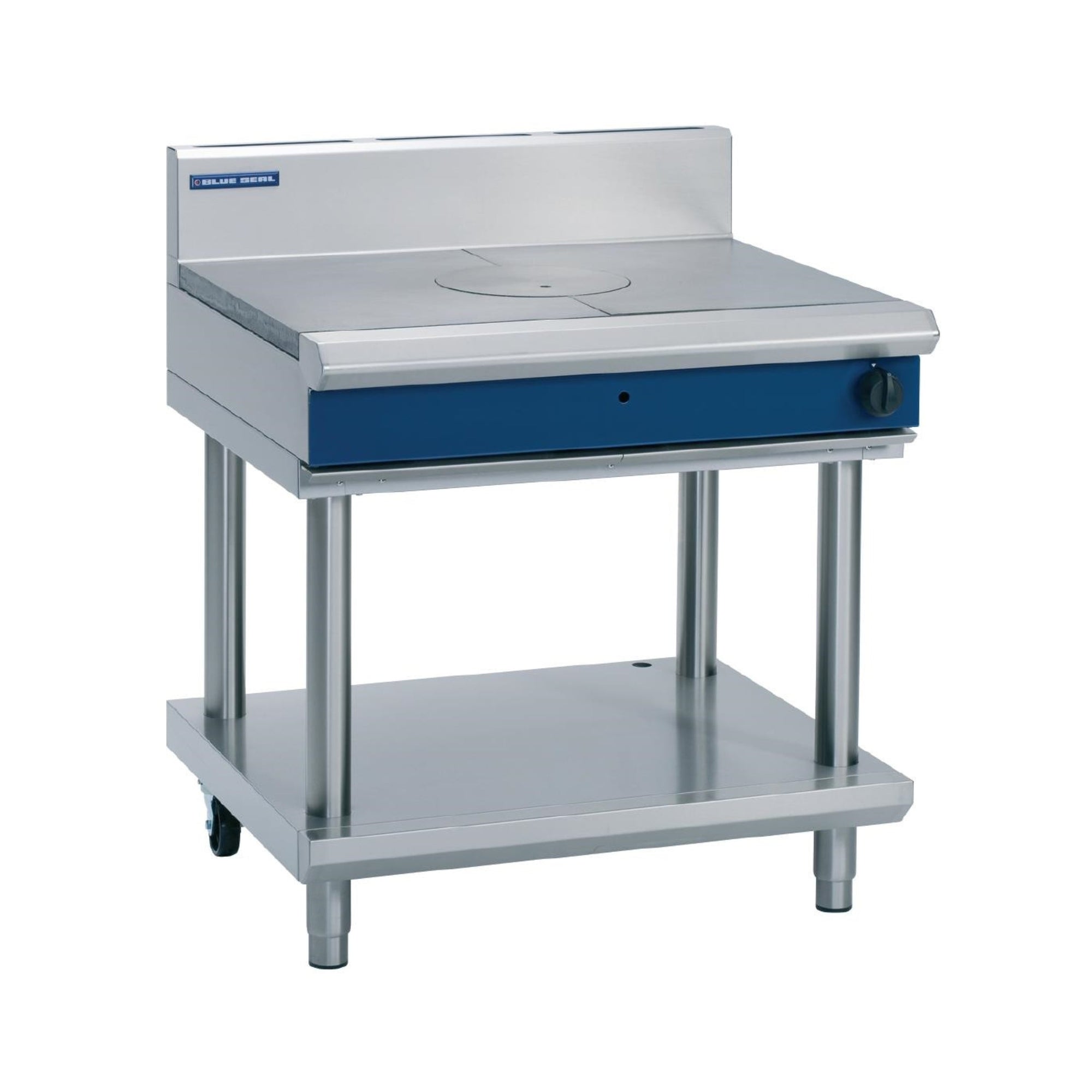

Blue Seal G57-LS Evolution Series 900mm Gas Target Top on Leg Stand

The Blue Seal G57-LS is a 900mm gas target top from the Evolution Series, built on a heavy-duty leg stand and designed for the rigours of high-volume commercial kitchen operation. The unit is constructed from 304 stainless steel and manufactured in New Zealand, and is available in either Natural Gas or LPG configurations. At the heart of the appliance sits a 45MJ/hr (12.5kW) dual ring cast iron burner housed within a burner box whose interior walls are clad in 50mm refractory ceramic blocks, delivering outstanding thermal efficiency, rapid heat recovery and reliable zone control throughout extended service periods.

The three-piece cast iron cooking surface is fully machined and incorporates raised heat fins that create clearly defined thermal zones across its width, with the left and right cooking areas operating as independent zones, each governed by its own 90–300°C thermostat. A removable centre ring and an integral spill protection layout simplify routine cleaning, while the framed top connection enables direct pairing with a matching Blue Seal griddle to extend the cooking surface without interrupting suite continuity. As part of the fully modular Evolution Series, the G57-LS combines with other suite equipment to present a uniform, professional kitchen line.

Key Benefits

• The 45MJ/hr dual ring cast iron burner delivers high-output heat with excellent recovery, keeping pace with the demands of a busy service.
• Independent left and right cooking zones, each controlled by a dedicated 90–300°C thermostat, give chefs precise temperature management across both sides of the cooking surface simultaneously.
• Fifty-millimetre refractory ceramic block cladding inside the burner box maximises thermal efficiency, helping to reduce gas consumption during long cooking runs.
• Flame failure protection combined with a continuous pilot burner automatically cuts gas flow if the flame is extinguished, safeguarding staff and the kitchen environment.
• The framed top design allows direct connection to a matching griddle, expanding the cooking surface and menu versatility without breaking suite continuity.
• Two front adjustable feet and two rear rollers allow effortless repositioning for cleaning, servicing or kitchen reconfiguration.
• Heavy-duty reinforced control knobs withstand the rigours of constant commercial use and remain reliable over the long term.
• Fully modular construction ensures a matched suite finish when combined with other Evolution Series equipment, presenting a professional, uniform kitchen line.
• Integral spill protection on the cast iron top plates and an easy-clean design minimise downtime during cleaning and routine servicing.

Key Features

• 900mm wide gas target top on leg stand configuration
• 45MJ/hr (12.5kW) dual ring cast iron burner
• Three-piece cast iron cooking surface with a fully machined, precision-ground finish
• Removable centre ring with integral spill protection design
• Cast iron top incorporating raised heat fins that establish clearly defined thermal zones across the cooking surface
• Independently controlled left and right cooking zones
• Two 90–300°C thermostats providing independent temperature control for each cooking zone
• Burner box interior clad with 50mm refractory ceramic blocks for maximised thermal efficiency
• Flame failure protection and continuous pilot burner
• Framed top designed for connection to a matching griddle
• Heavy-duty reinforced control knobs for frequent commercial use
• Leg stand constructed from 63mm diameter, 1.2mm thick 304 stainless steel tube
• Two height-adjustable feet positioned at the front and two castors at the rear
• 165mm splashback included (overall height including splashback: 1085mm)
• Suite-matching undershelf included
• Fully modular design for matched Evolution Series suite finish
• Available in Natural Gas or LPG
• R 3/4 (BSP) male gas connection
• Constructed from 304 stainless steel
• Freestanding installation type
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 287
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Single Knob Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Surface: Heavy-Duty Cast Iron
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 1
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
