Overview

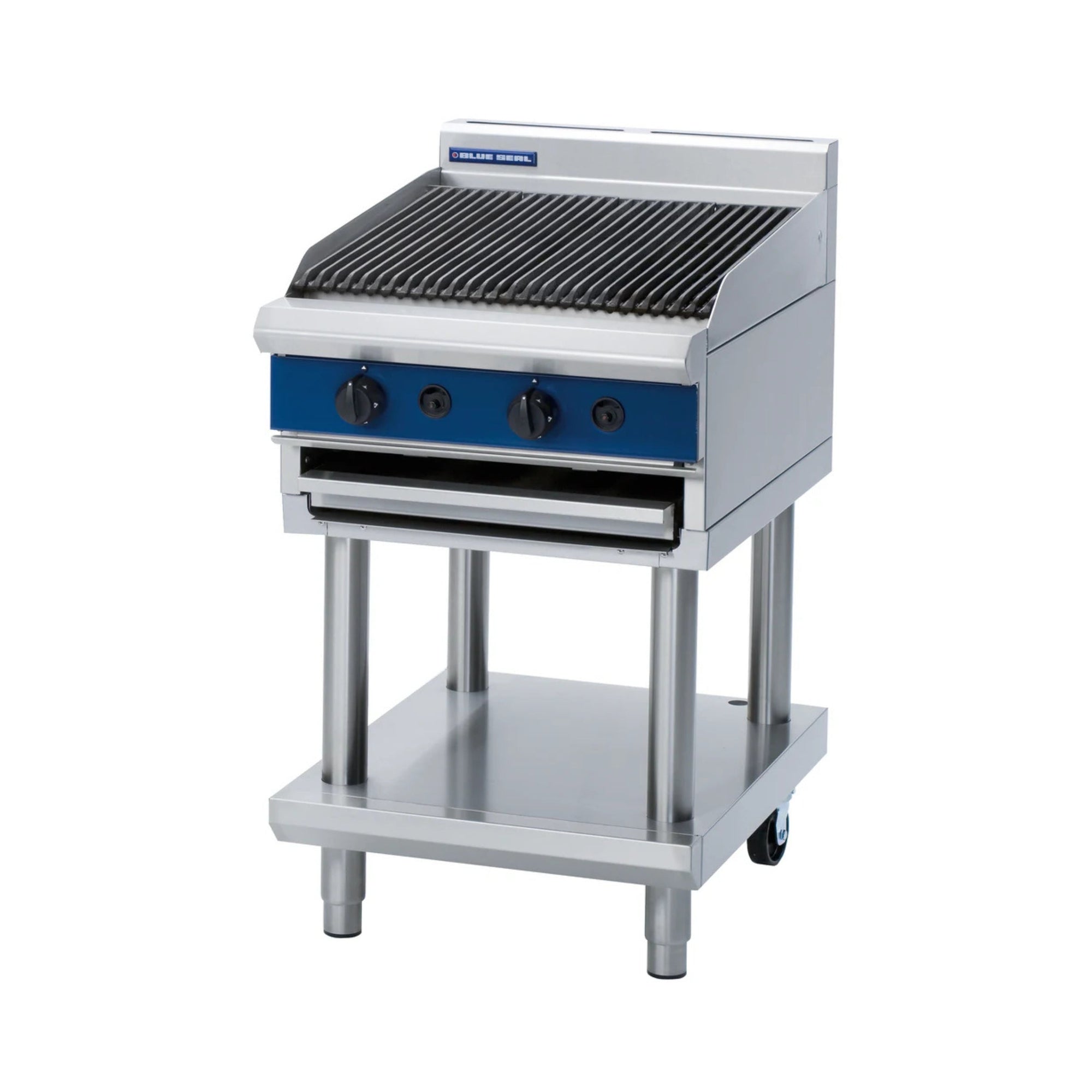

Blue Seal G594-LS Evolution Series 600mm Gas Chargrill on Leg Stand

The Blue Seal G594-LS Evolution Series 600mm Gas Chargrill on Leg Stand is a professional-grade cooking unit manufactured in New Zealand from 304 stainless steel, delivering a total output of 66 MJ/hr (18.6 kW) across two independently controlled 33 MJ/hr thermostatic burners. The reversible heavy-duty top grates can be set flat or inclined, giving chefs precise control over heat exposure and grease management, while full pilot and flame failure protection on every burner keeps operations safe during demanding service periods.

Designed for seamless integration into a modular Blue Seal Evolution suite, the G594-LS sits on a robust leg stand featuring 63 mm diameter 304 stainless steel legs, two adjustable feet at the front and two rear rollers for easy repositioning. The 600 x 480 mm cooking surface, combined with lift-out radiants, burners and grease tray baffles, makes thorough cleaning and routine servicing straightforward without the need for specialist tools. Available in Natural Gas or LPG, it suits a wide range of commercial kitchen configurations.

Key Benefits

• Two independently controlled thermostatic burners allow different heat zones across the grill surface, supporting simultaneous cooking of varied proteins and vegetables.
• Reversible top grates switch between level and inclined positions, so chefs can reduce flare-ups and direct grease efficiently into the front collection area without interrupting service.
• Full pilot and flame failure protection on each individual burner automatically cuts gas if a flame is lost, reducing risk in high-volume, fast-paced kitchens.
• Lift-out radiants, burners and grease tray baffles mean deep cleaning is quick and thorough, minimising downtime between shifts.
• Rear rollers and front adjustable feet make it easy to move the unit for cleaning behind or repositioning within a suite, while maintaining stability during cooking.
• Fully modular construction integrates neatly into a matched Blue Seal Evolution suite, allowing kitchens to expand their cooking line without mismatched finishes.
• Heavy-duty reinforced control knobs withstand the rigours of constant commercial use, maintaining precise control and longevity over time.
• A 165 mm splashback and matching undershelf are included, protecting walls and providing convenient storage within the same footprint.

Key Features

• 600 mm wide gas chargrill mounted on a dedicated leg stand
• 2 x 33 MJ/hr thermostatic burner system; total gas rating 66 MJ/hr (18.6 kW)
• 304 stainless steel U-burners (one per 300 mm section)
• Individual hi-lo thermostatic gas control to each burner
• Full pilot and flame failure protection per burner
• Reversible heavy-duty top grates for level or inclined cooking positions
• Inclined grate position channels grease to front collection area, reducing flare-ups
• Lift-out radiants, burners and grease tray baffles for easy cleaning and servicing
• Heavy-duty reinforced control knobs designed for high-frequency commercial use
• 600 x 480 mm cooking surface area
• 165 mm rear splashback included
• Matching undershelf included (suite-matched finish)
• 63 mm diameter 304 stainless steel legs (1.2 mm wall thickness) with two front adjustable feet and two rear rollers
• Fully modular framed stand shelf in 0.9 mm 304 stainless steel finish
• Fully modular design for matched Evolution suite configuration
• Body and construction in 304 stainless steel
• 3/4" BSP male gas connection
• Compatible with Natural Gas or LPG (specify at time of ordering)
• Freestanding, free-standing installation type
• Height including splashback: 1085 mm; stand height without splashback: 915 mm
• Manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 133
• Packed Width (mm): 645.0
• Packed Height (mm): 1225.0
• Packed Depth (mm): 945.0
• Shipping Cubic: 0.746668000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 600 x 480
• Number of Burners: 2
• Power Rating: 304 Stainless Steel
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
