Overview

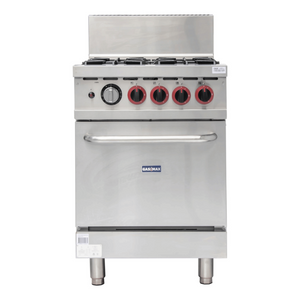

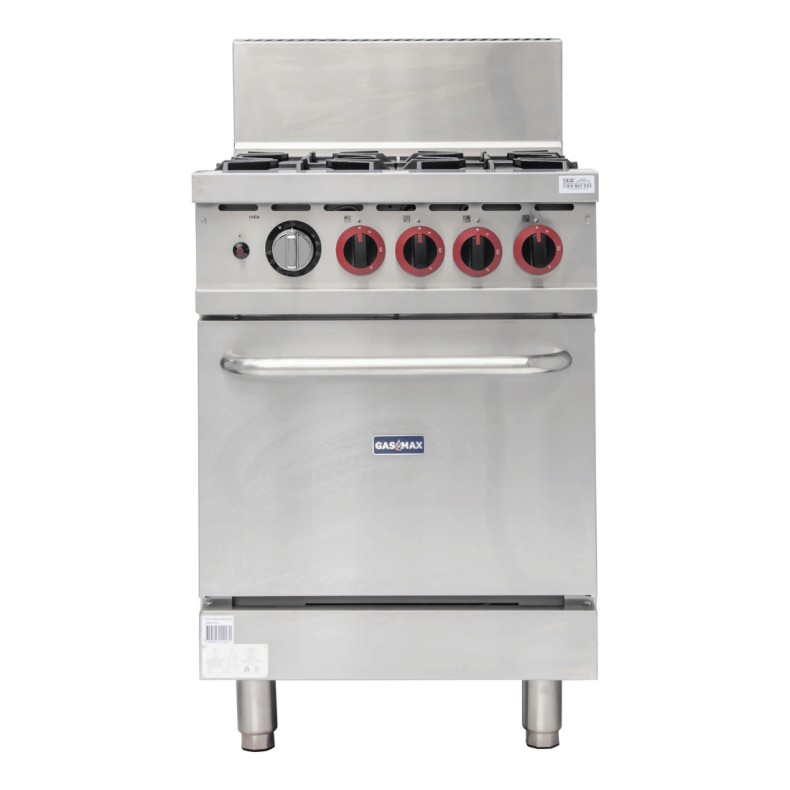

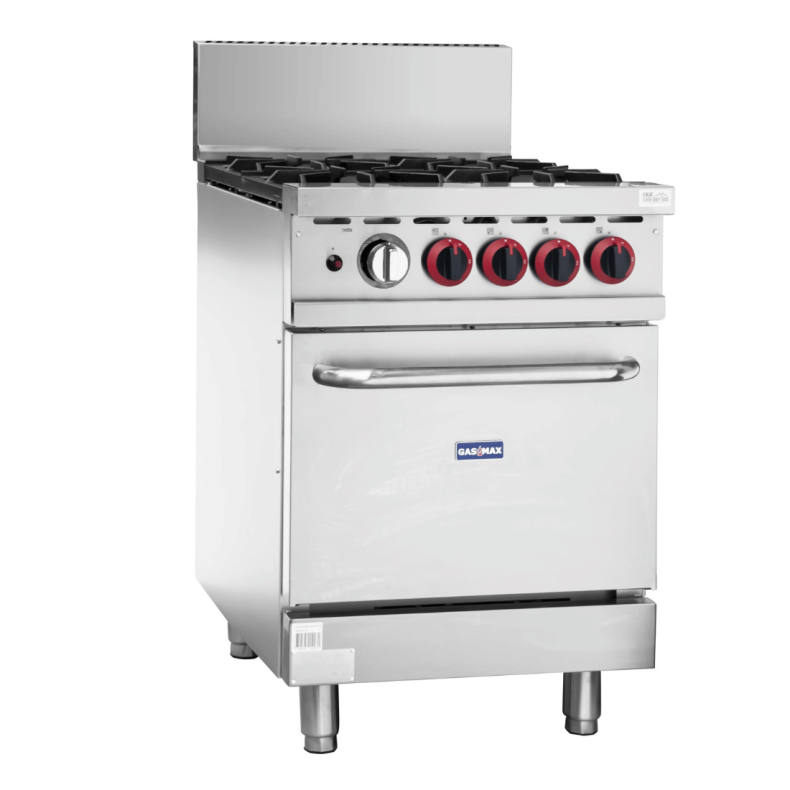

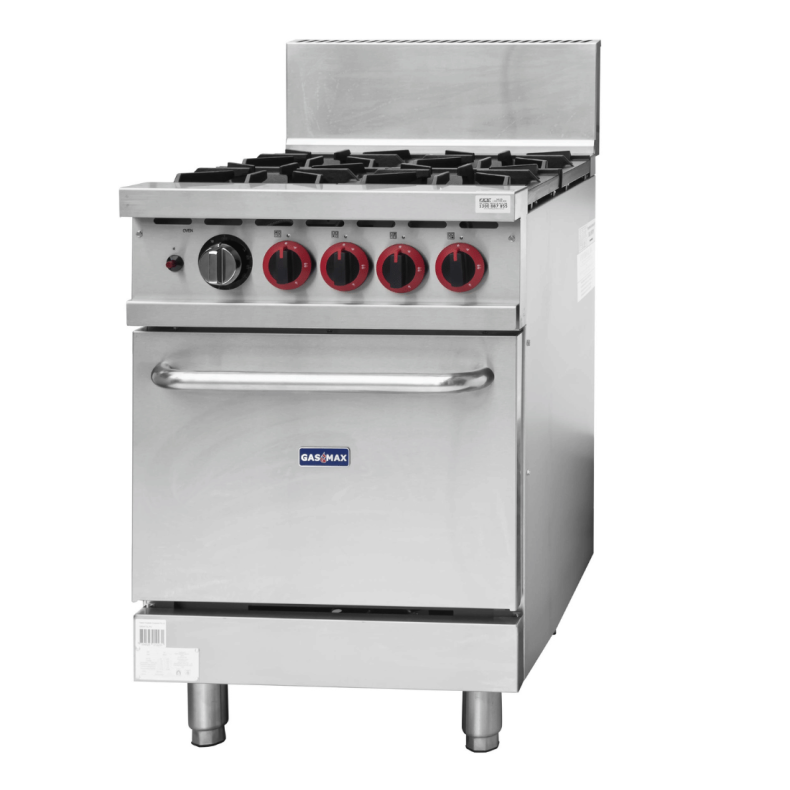

Gasmax GBS4TSLPG 4 Burner LPG Range with Oven and Flame Failure

The Gasmax GBS4TSLPG is a heavy-duty LPG commercial range built to meet the demands of busy professional kitchens. Four cast iron open burners, each rated at 42MJ, combine with a thermostat-controlled oven whose cooking temperature spans from 100 up to 300 degrees Celsius, producing a total gas rating of 204MJ/h for serious output. A welded frame structure, stainless steel front and galvanised sides ensure the unit holds up to the rigours of daily commercial service.

Safety is built into every level of this range. Flame failure control valves on the burners, a thermal coupling safety valve protecting the oven cavity, and a robust 0.35mm thick thermocouple rated to withstand 1400 degrees Celsius all work together to protect kitchen staff and equipment. Thoughtful design details such as a pull-out crumb tray, easily dismantled burners and a kick plate for service access make routine cleaning and maintenance straightforward for kitchen operators.

Key Benefits

• Four 42MJ burners deliver high heat output simultaneously, supporting peak service periods without compromising performance.
• The oven is thermostat-controlled across a cooking range starting at 100 and reaching 300 degrees Celsius, allowing precise, consistent baking and roasting results.
• Flame failure control valves on each burner and a dedicated thermal coupling safety valve guarding the oven automatically cut gas supply if a flame is extinguished, protecting staff and premises.
• Cast iron open burners and grates provide excellent heat retention and robust durability for long-term daily use.
• Burners can be easily dismantled and burner holes are designed to resist food waste blockages, reducing cleaning time and downtime.
• Pull-out crumb tray with an angled front handle simplifies waste collection and day-to-day hygiene maintenance.
• Adjustable heavy-duty legs allow the unit to be levelled on uneven kitchen floors, ensuring stable and safe operation.
• Welded frame construction and galvanised sides provide structural rigidity and resistance to the heat and moisture of a commercial kitchen environment.

Key Features

• LPG fuel type with 3/4-inch rear gas connection

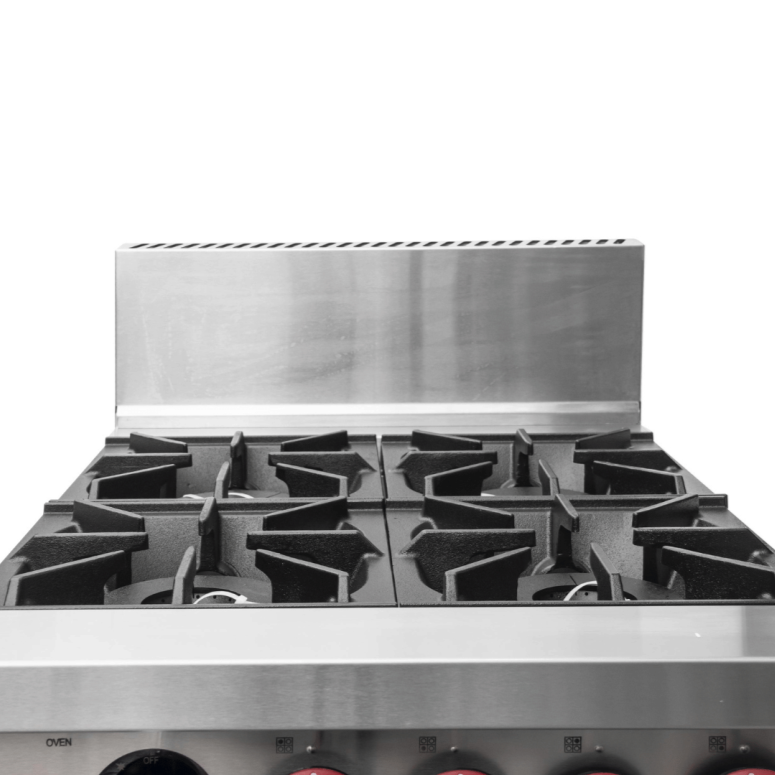

• Four heavy-duty cast iron open burners, each rated at 42MJ per hour
• Total gas rating of 204MJ/h
• Flame failure control valve on each burner for safety
• Continuous pilot ignition system for each burner
• Anti-clogging pilot cover located under the grate
• 12 x 12 inch (30 x 30 cm) cast iron grates
• Burner holes designed to resist blockage from food waste
• Burners can be fully dismantled for thorough cleaning
• Stainless steel front with galvanised sides
• Welded frame structure for maximum stability
• Adjustable heavy-duty legs

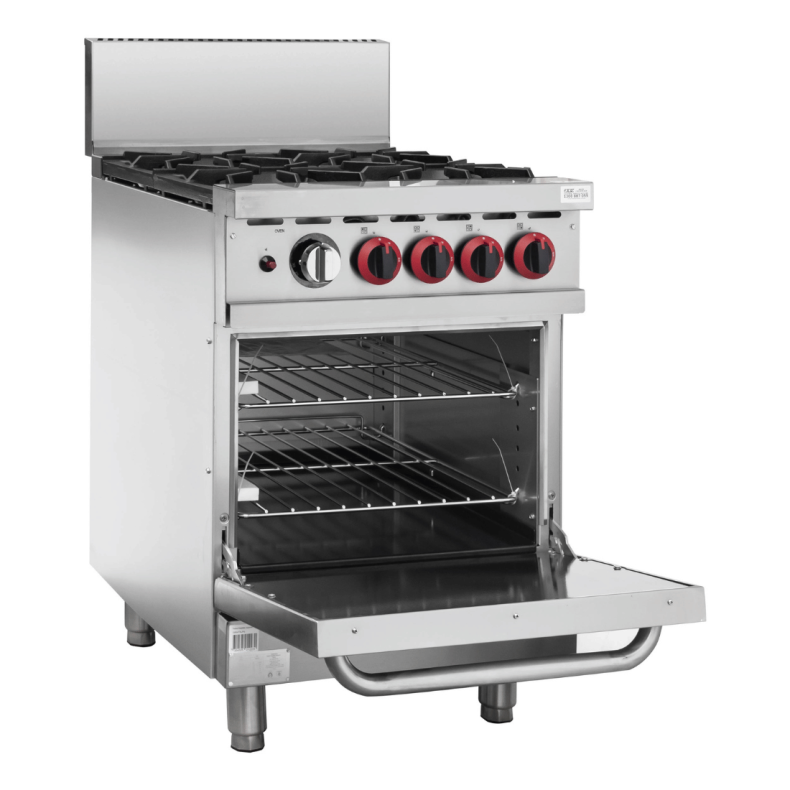

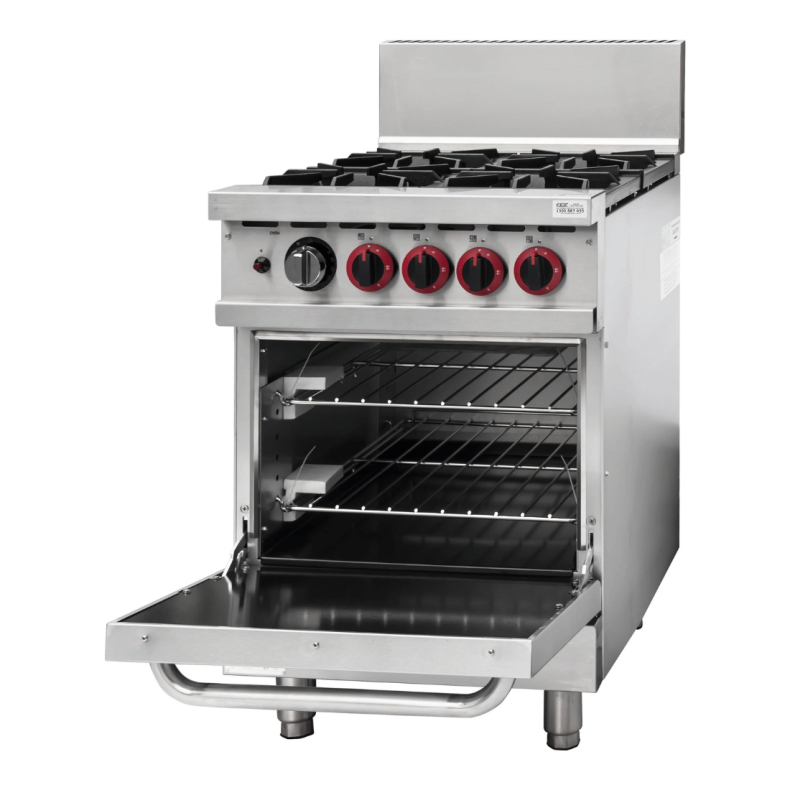

• Thermostat-controlled oven with a minimum setting of 100 degrees Celsius and a maximum setting of 300 degrees Celsius
• U-shaped oven burner for even heat distribution throughout the oven cavity
• Dedicated thermal coupling safety valve fitted to the oven
• Insulated stainless steel oven door for heat retention
• Stainless steel handle on the oven door
• 0.35mm thick thermocouple rated to resist temperatures up to 1400 degrees Celsius
• Pull-out crumb tray with an angled front handle for easy removal and cleaning
• Kick plate at the base for convenient access during servicing
• Warranty: 2 Years Parts and Labour, plus an additional 2 Years Parts Only cover available to customers who register their product within 14 days of the invoice date

Specifications

• Width (mm): 610
• Depth (mm): 855
• Height (mm): 1128
• Weight (kg): 171
• Packed Width (mm): 730
• Packed Depth (mm): 1020
• Packed Height (mm): 890
• Shipping Weight: 132
• Power Delivery: 204MJ/h
• Power (kW): 204
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
