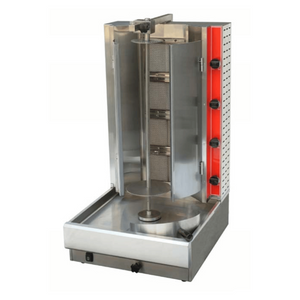

Gasmax KB-4 Semi-Automatic 4 Burner Natural Gas Kebab Machine

The Gasmax KB-4 is a semi-automatic vertical broiler designed for the authentic preparation of doner kebabs, gyros, shawarmas, and tacos al pastor in high-volume commercial kitchens. Powered by natural gas with infrared ceramic burners rated at 52 MJ/h, it delivers intense, even heat that produces a delicately crisp exterior while keeping meat succulent and tender on the inside.

Built around a sturdy stainless steel structure, the KB-4 supports a meat capacity of up to 45 kg and features an adjustable cooking spit with a 711 mm spit length for the 4-burner configuration. A rear 3/4" NPT gas connection with a built-in gas regulator simplifies installation, while a pilot ignition system enables instant start-up, making this machine a reliable workhorse for any kebab-focused or multi-cuisine commercial operation.

Key Benefits

• Infrared ceramic burners produce even, intense radiant heat across the entire spit, eliminating cold spots and ensuring consistently cooked results during busy service periods.
• The adjustable cooking spit lets operators vary the distance between the meat and burners, giving precise control over cooking speed and browning to suit different meat types and portion sizes.
• A 45 kg meat capacity reduces the need for frequent reloading, supporting continuous throughput during peak trading hours.
• Pilot ignition enables instant burner start-up, minimising warm-up time and keeping the kitchen running efficiently from the moment service begins.
• Stainless steel heat shields on both sides protect surrounding surfaces and help maintain consistent cooking temperatures throughout service.
• Heavy-duty motors are built for extended daily operation, reducing downtime and maintenance requirements in demanding commercial environments.
• The built-in gas regulator and rear 3/4" NPT connection streamline installation and help maintain safe, stable gas pressure during operation.
• A comprehensive warranty of 2 years parts and labour plus a further 2 years parts only (when registered within 14 days of invoice) provides long-term protection and peace of mind.

Key Features

• Natural gas (NG) fuel type
• 4-burner semi-automatic configuration
• Infrared ceramic burners for even and intense heat distribution
• Gas consumption: 52 MJ/h
• Meat capacity: 45 kg
• Spit length (4-burner): 711 mm
• Adjustable cooking spit for variable spit-to-burner distance
• Stainless steel construction throughout
• Stainless steel heat shields on both sides of the cooking chamber
• Efficient main burner pilot for instant ignition
• Heavy-duty motors designed for continuous commercial use
• Rear 3/4" NPT gas connection with built-in gas regulator
• 10 A power connection
• Dimensions: 537 mm (W) x 639 mm (D) x 1013 mm (H)
• Weight: 45 kg
• Packed dimensions: 650 mm (W) x 780 mm (D) x 1200 mm (H)
• 2 years parts and labour warranty plus 2 years parts only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 537
• Depth (mm): 639
• Height (mm): 1013
• Weight (kg): 45
• Packed Width (mm): 650
• Packed Depth (mm): 780
• Packed Height (mm): 1200
• Power Delivery: 10A plug
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
