Overview

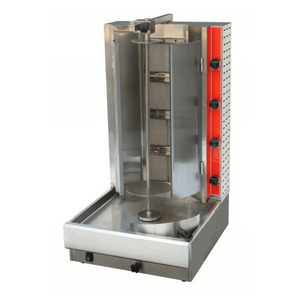

Gasmax KB-4LPG Semi-automatic 4 Burner LPG Kebab Machine

The Gasmax KB-4LPG is a semi-automatic vertical broiler designed for high-volume commercial kitchens producing gyros, shawarmas, doner kebabs, and tacos al pastor. Powered by LPG with a gas rating of 48 MJ/h, it uses infrared ceramic burners to deliver intense, even heat that cooks meat to a succulent, tender interior with a delicately crisp exterior every time.

Built on a sturdy stainless steel frame and capable of holding up to 45 kg of meat on the spit, the KB-4LPG is engineered for demanding service environments. Its adjustable cooking spit, built-in gas regulator, and semi-automatic operation give operators precise control over cooking results, while the heavy-duty motors and robust construction ensure long-term reliability under continuous use.

Key Benefits

• Infrared ceramic burners produce consistent, intense radiant heat across the full spit length, reducing hot spots and ensuring uniformly cooked meat throughout service.
• A 45 kg meat capacity per load supports high-throughput service, making it well suited to busy kebab shops, restaurants, and catering operations.
• The adjustable cooking spit lets operators vary the distance between the meat and burners, giving fine control over browning speed and internal cook temperature.
• Semi-automatic operation simplifies the cooking process, reducing the skill required from staff and helping maintain consistent results across different operators.
• A main burner pilot enables instant ignition for fast start-up, reducing pre-service preparation time and improving kitchen efficiency.
• Stainless steel heat shields on both sides retain and reflect heat back toward the spit, improving energy efficiency and protecting surrounding surfaces and staff.
• The rear 3/4" NPT gas connection with a built-in regulator streamlines installation and ensures a safe, consistent gas supply without additional fittings.
• Heavy-duty motors are built to handle continuous rotation throughout extended service periods, supporting longevity and minimising downtime.
• A comprehensive warranty of 2 years parts and labour plus 2 years parts only (when registered within 14 days of invoice) provides strong long-term protection for commercial operators.

Key Features

• Gas type: LPG
• Gas consumption: 48 MJ/h
• Meat capacity: 45 kg
• Four infrared ceramic burners for even, intense heat distribution
• Semi-automatic operation with heavy-duty rotation motors
• Sturdy stainless steel construction throughout
• Stainless steel heat shields on both sides to maintain consistent cooking temperatures and protect surrounding areas
• Adjustable cooking spit allows variable distance between meat and burners for optimised cooking control
• Spit length for 4-burner configuration: 711 mm (5-burner: 965 mm, 3-burner: 533 mm)
• Efficient main burner pilot for instant ignition and quick start-up
• Rear 3/4" NPT gas connection with built-in gas regulator included
• Requires a 10 A power connection for motor operation
• Dimensions: 537 mm wide x 639 mm deep x 1013 mm high
• Unit weight: 45 kg
• 2 years parts and labour plus 2 years parts only warranty when product is registered within 14 days of invoice

Specifications

• Width (mm): 537
• Depth (mm): 639
• Height (mm): 1013
• Weight (kg): 45
• Packed Width (mm): 650
• Packed Depth (mm): 780
• Packed Height (mm): 1200
• Shipping Weight: 39
• Shipping Cubic: 0.608400000m3
• Power Delivery: 10A plug
• Power (kW): 10
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
