Overview

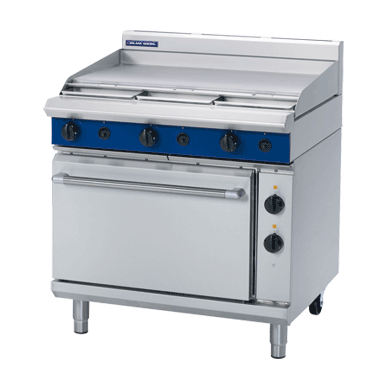

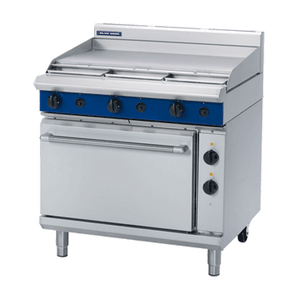

Blue Seal GE506A Evolution Series 900mm Gas Griddle Range with Electric Static Oven

The Blue Seal GE506A is a 900mm commercial gas griddle range paired with an integrated 2/1 GN electric static oven, forming part of the renowned Evolution Series built in New Zealand. The cooktop features three 20MJ/hr gas griddle burners beneath a 20mm smooth mild steel plate for outstanding heat retention and even distribution, while the electric static oven delivers precise, consistent temperatures from 90 to 300°C — making this unit a genuinely versatile workhorse for cafés, restaurants, hotels, and catering operations.

Constructed from heavy-duty 304 stainless steel with a fully welded, vitreous enamelled oven liner, the GE506A is engineered for the rigours of continuous commercial use. Flame failure protection on all burners, removable cast iron burners and vitreous enamel pot stands, cool-touch door handle, reinforced control knobs, and a drop-down oven door with welded frame all contribute to safe, low-maintenance operation. Adjustable feet and two additional rollers make installation and repositioning straightforward, and the unit is available in both Natural Gas and LPG configurations.

Key Benefits

• The 20mm smooth mild steel griddle plate maximises heat retention and distribution across the full 892 x 530mm cooking surface, supporting high-volume throughput during peak service.
• The integrated electric static oven provides even, accurate heat for roasting, baking, reheating, and delicate cooking tasks where temperature consistency is critical.
• Thermostatic control across the 90–300°C range allows chefs to dial in precise temperatures on both the griddle and oven, reducing the risk of over or undercooking.
• Flame failure protection on all burners automatically cuts the gas supply if a flame is extinguished, improving kitchen safety during busy service periods.
• Removable cast iron burners and vitreous enamel pot stands simplify routine cleaning and routine maintenance, reducing downtime between services.
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit straightforward during installation or kitchen reconfiguration.
• As part of the modular Blue Seal Evolution Series, the GE506A aligns with companion 450mm, 600mm, and 1200mm units, enabling cohesive, fully integrated commercial kitchen suites.
• Heavy-duty 304 stainless steel construction with a fully welded, vitreous enamelled oven liner resists corrosion, withstands daily thermal stress, and supports long service life.
• Available in Natural Gas or LPG, the GE506A suits a wide variety of venue types and gas supply configurations without requiring a specialised installation.

Key Features

• 900mm wide gas griddle range with integrated 2/1 GN electric static oven
• Three 20MJ/hr gas griddle burners providing a total gas rating of 60MJ/hr (16.6kW)
• 20mm smooth mild steel griddle plate for superior heat retention and even surface temperature
• Cooking surface area: 892 x 530mm
• Electric static oven with thermostatic control, 90–300°C temperature range
• 6.5kW electric oven; single-phase power supply 220–240Vac, 50Hz, 1P+N+E
• Flame failure protection on all burners for continuous safe operation
• Removable heavy-duty cast iron burners with vitreous enamel pot stands for stability and easy cleaning
• Fully welded and vitreous enamelled oven liner for durability and hygiene
• Drop-down oven door with welded frame for robust, long-lasting operation
• Cool-touch stainless steel oven door handle for safe access during service
• Heavy-duty reinforced, heat-resistant control knobs
• 165mm splashback included; overall height including splashback: 1085mm
• Adjustable feet and two additional rollers for easy levelling and repositioning
• 304 stainless steel construction throughout
• Freestanding, freestanding mounting type
• Available in Natural Gas or LPG — specify gas type when ordering
• Gas connection: R 3/4 (BSP) male
• Oven capacity accommodates 2/1 GN gastronorm trays; supplied with 2 shelves
• Part of the modular Blue Seal Evolution Series, compatible with the full range of 450–1200mm suite components
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 275
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Gas / Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
