Overview

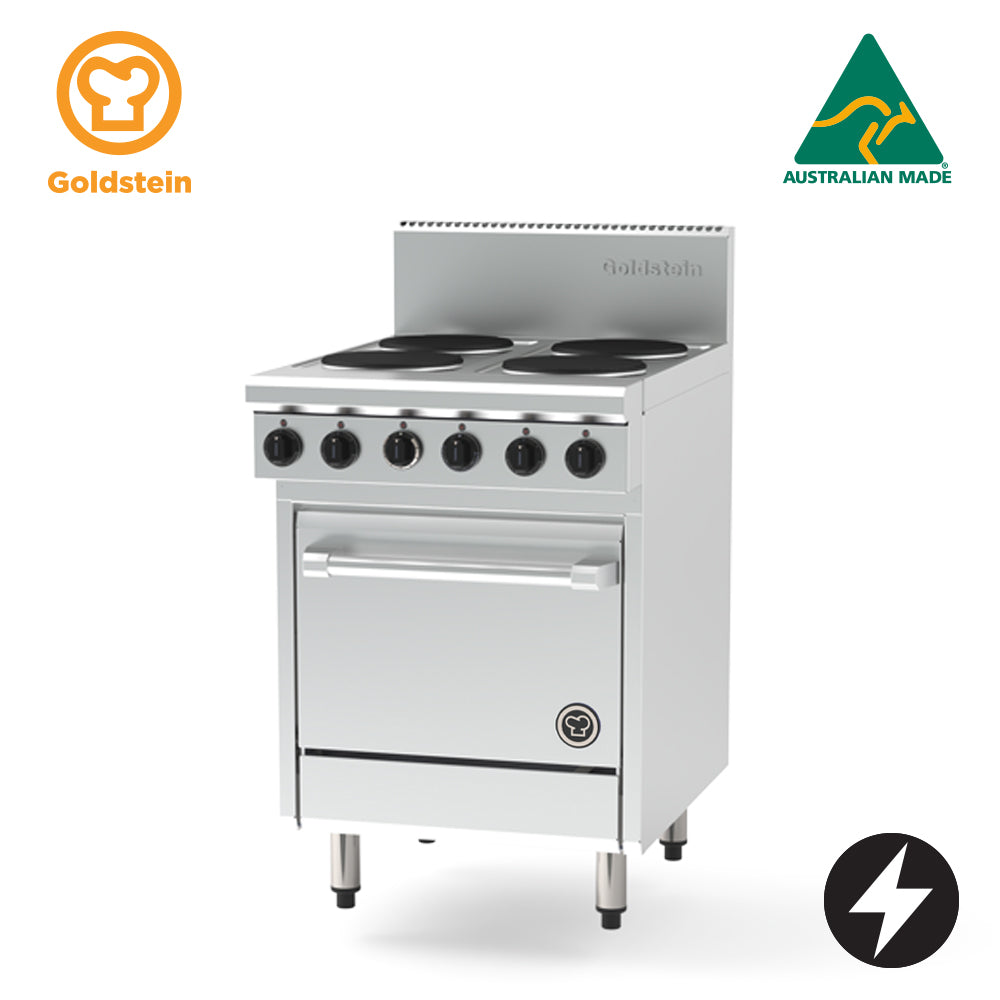

Goldstein PE4S20-X 800 X-Series 500mm (20in) Electric Oven Range

The Goldstein PE4S20-X is an Australian-made commercial electric oven range from the 800 X-Series, designed for demanding kitchen environments in restaurants, cafés and institutional settings. It combines four 2 kW cast iron solid hotplates with a fully insulated GN 1/1 static oven, delivering consistent, reliable results across a wide range of cooking tasks from a compact 500mm (20in) footprint.

Constructed with a heavy-duty welded stainless steel body, vitreous enamel oven lining and front-accessible servicing, the PE4S20-X is built for long-term durability and ease of maintenance. Running on 400V three-phase power with a total input of 13.5 kW, it suits operators who need dependable performance day after day without compromising on hygiene or operational efficiency.

Key Benefits

• Four cast iron solid hotplates deliver even, consistent heat retention, reducing hot spots and improving cooking reliability during busy service periods.
• Oven thermostatic control ranging from 100°C to 280°C gives chefs precise temperature management for baking, roasting and holding across a broad menu.
• Fully insulated oven cavity with vitreous enamel lining promotes even heat distribution while making interior cleaning straightforward after service.
• GN 1/1 oven capacity with three-position racking offers flexible loading to handle multiple trays simultaneously, supporting high-volume output.
• Front-accessible servicing means all components can be reached without moving the unit, reducing downtime and simplifying routine maintenance.
• Adjustable legs ranging from 140 to 170mm allow the unit to be levelled on uneven floors and positioned at a comfortable working height.
• Stainless steel fascia, sides, spill zone and drip trays simplify daily cleaning and help maintain hygiene standards in commercial kitchens.
• Modular cooktop design accommodates various combinations of 305mm and 610mm hotplate configurations, giving operators flexibility as their needs change.
• Australian-made construction with a welded stainless steel body ensures structural rigidity and long service life under the continuous demands of commercial use.

Key Features

• Four 2 kW cast iron solid hotplates providing stable, even heat across the cooking surface
• Six heat position switch on each hotplate for precise power control
• Large heat-resistant reinforced control knobs with clearly visible settings
• Heating ON indicator lights for each hotplate zone
• Fully insulated GN 1/1 static oven with vitreous enamel lining on oven cavity and door
• Oven thermostatic control from 100°C to 280°C
• Three-position oven racking to suit different tray heights and food types
• Heavy-duty chrome wire rack supports designed for easy removal and cleaning
• Cool-to-touch ergonomic oven door handle
• Angled corners on the exterior for a clean, modern profile
• Heavy-duty welded stainless steel body for rigidity and long-term durability
• Stainless steel fascia and sides throughout
• Stainless steel spill zone and drip trays for easy cleaning after service
• Fully welded surrounds for the griddle/cooktop area
• Flexible modular cooktop design compatible with 305mm and 610mm hotplate combinations
• Adjustable legs from 140mm to 170mm for levelling and height adjustment
• All service components accessible from the front of the unit
• 400V 3-phase electrical connection (400V/50Hz + N + PE)
• Total power input: 13.5 kW
• Dimensions: 610mm wide x 800mm deep x 1120mm high
• Weight: 129 kg
• Made in Australia

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 129
• Shipping Weight: 129
• Packed Width (mm): 950.0
• Packed Height (mm): 1420.0
• Packed Depth (mm): 1100.0
• Shipping Cubic: 1.483900000m3
• Power / Gas Input: 13.5 kW
• Power Supply: 400V 3ph
• Country of Origin: Australia (Made)
