Overview

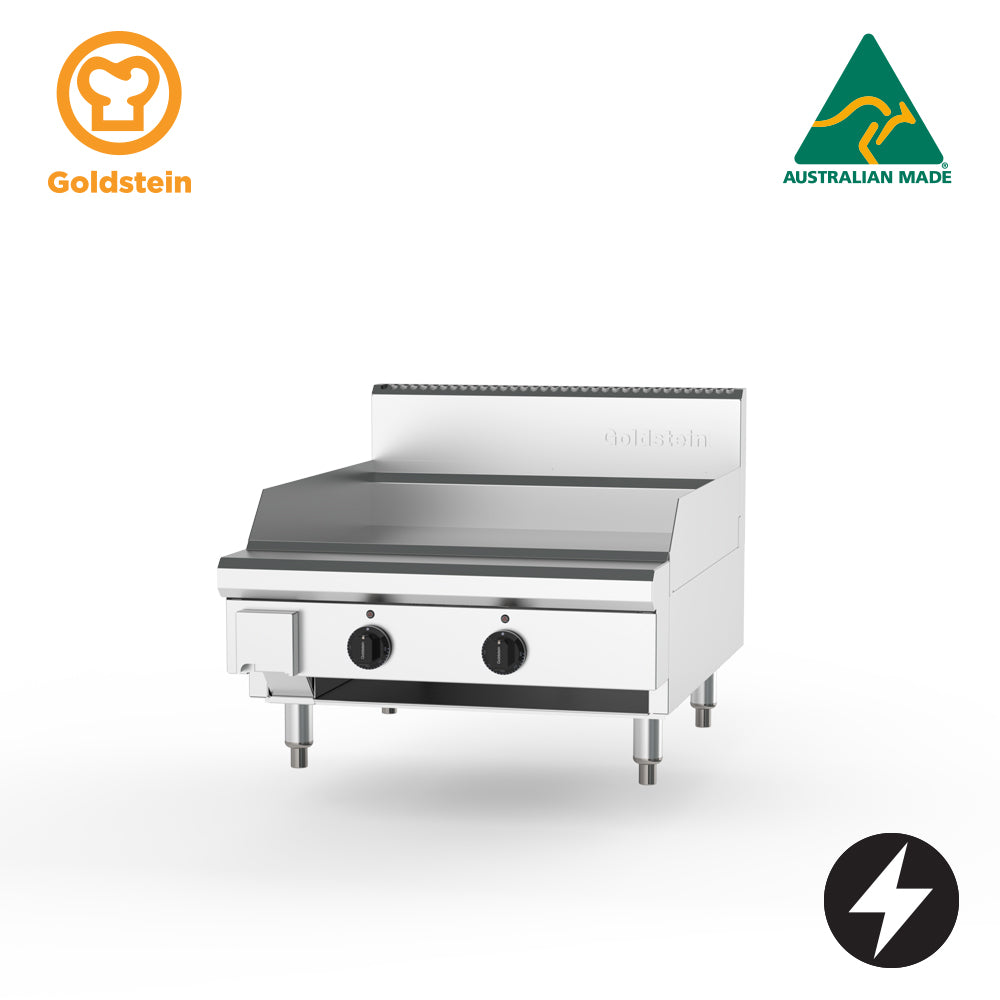

Goldstein GPEDB24-X 800 X-Series Electric Griddle Plate

The Goldstein GPEDB24-X is an Australian-made commercial electric griddle designed for high-output kitchens in cafés, restaurants and foodservice venues. Its 12 mm thick mild steel cooking plate measures 605 x 520 mm and is divided into 305 mm zones, each driven by a dedicated 6 kW heating element, delivering consistent, even heat across the full surface for continuous all-day cooking.

Built around a fully welded stainless steel cabinet with stainless fascia and sides, the GPEDB24-X is engineered to withstand the rigours of daily commercial service. Integrated spill channels and removable grease trays keep cleaning fast between services, while front-access servicing, oversized heat-resistant control knobs and illuminated power indicators make the unit straightforward to operate and maintain. Multiple installation and configuration options allow the griddle to suit a wide range of kitchen setups.

Key Benefits

• Precise temperature control from 50°C to 300°C lets operators fine-tune heat for everything from delicate eggs to seared burgers without overcooking.
• Two independent 6 kW heating zones allow different sections of the plate to run at different temperatures simultaneously, improving menu flexibility.
• Even heat distribution across the 605 x 520 mm mild steel plate reduces hot spots and produces consistently cooked food across the entire cooking surface.
• Removable grease trays and integrated spill channels minimise downtime between services, supporting fast kitchen turnaround.
• All components are accessible from the front of the unit, reducing the time and effort required for routine servicing and part replacement.
• Adjustable legs (112–132 mm) allow the unit to be levelled on uneven floors, ensuring stable, safe operation in any kitchen environment.
• Flexible installation options including benchtop, stand with undershelf or cupboard base make it straightforward to integrate into kitchens with varying space constraints.
• Australian manufacture supports local quality standards and simplifies access to spare parts and technical support.

Key Features

• 12 mm thick mild steel cooking plate, 605 x 520 mm
• Two 305 mm cooking zones, each with a dedicated 6 kW heating element (12 kW total output)
• Thermostat temperature control ranging from 50°C to 300°C per zone
• Fully welded heavy-duty stainless steel cabinet for rigidity and long-term durability
• Stainless steel fascia and sides throughout
• Integrated spill channels and removable grease drip trays for easy cleaning
• Oversized heat-resistant reinforced control knobs with clearly visible settings
• Illuminated heating-on indicator lights for at-a-glance status monitoring
• Adjustable legs with a height range of 112–132 mm
• Front-access servicing with all parts reachable from the front of the unit
• Supplied without a plug or lead (trade connection required)
• Power supply: 415 V, 2-phase, 12 kW
• Made in Australia
• Optional black front control panel available
• Optional chrome plate or grooved plate configurations available
• Compatible with stand and undershelf or cupboard base (optional accessories)
• Overall dimensions: 610 mm wide x 800 mm deep x 545 mm high
• Unit weight: 50 kg

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 545
• Weight (kg): 50
• Shipping Weight: 121
• Packed Width (mm): 920.0
• Packed Height (mm): 820.0
• Packed Depth (mm): 1200.0
• Shipping Cubic: 0.905280000m3
• Power / Gas Input: 12 kW
• Power Supply: 400V 3ph
• Power (kW): 2
• Country of Origin: Australia (Made)
• Fuel Type: Electric
