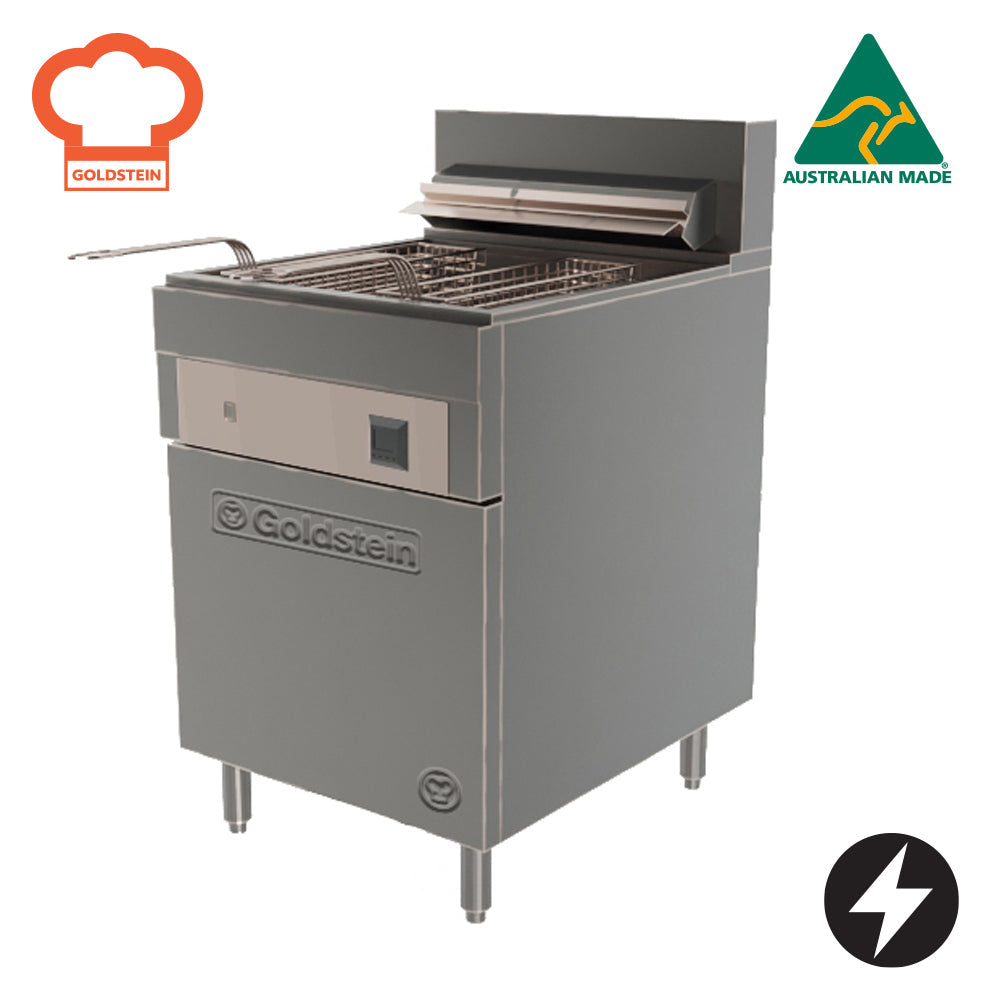

Goldstein FRE24DL Rapid Fry Single Pan Electric Fryer 610mm

The Goldstein FRE24DL is a heavy-duty freestanding electric deep fryer built and designed in Australia for the demands of high-volume commercial kitchens. Its single extra-wide pan measures 555 x 390 x 275mm with a 45-litre oil capacity, supplied with three stainless steel baskets to support continuous, high-output frying across a full service period.

A unique flat pan design maximises heat transfer directly into the oil, ensuring rapid heat recovery and efficient energy use on a 21kW, 415V three-phase connection. A front cool zone combined with a crumb arrester protects oil quality and extends oil life, while the digital thermostat delivers precise, consistent temperature control between 93°C and 190°C. Cover and joiner strips are available for seamless multi-unit line-up configurations, and an optional night lid adds further versatility.

Key Benefits

• High-efficiency flat pan design channels all available energy directly into the oil, reducing running costs and speeding up heat recovery between loads.
• Three stainless steel baskets per pan allow simultaneous cooking of multiple products, keeping throughput high during peak service.
• Front cool zone and crumb arrester trap food debris away from the heating zone, protecting oil quality and significantly extending oil life.
• Digital thermostat provides precise temperature management across the full 93°C to 190°C range, reducing the risk of under or over-frying.
• Extra-wide 555 x 390mm pan footprint accommodates larger batch sizes compared with standard fryers, ideal for busy fish and chip or fast food operations.
• Cover and joiner strips available for multi-unit installations, allowing a neat, professional line-up setup that makes the most of bench space.
• Stainless steel pan and baskets resist corrosion and are straightforward to clean, supporting fast turnaround between services.
• Manufactured in Australia to commercial kitchen standards, with all stainless steel exterior construction for durability in demanding environments.
• Optional night lid available to cover the pan when not in use, improving hygiene and protecting oil quality overnight.

Key Features

• Single extra-wide frying pan with internal dimensions of 555mm wide x 390mm deep x 275mm high.
• 45-litre oil capacity per pan.
• Three stainless steel baskets included per pan.
• Unique flat pan design maximises heat transfer to minimise energy consumption.
• Front cool zone with integrated crumb arrester to protect and extend oil life.
• Digital thermostat with temperature range of 93°C to 190°C.
• 21kW power input on a 415V three-phase (415V + N + E) electrical connection, rated at 7kW per phase.
• Stainless steel pan, baskets, face and sides throughout.
• Freestanding installation, 610mm wide footprint.
• Available with or without line-up nosing for flexible installation.
• Cover and joiner strips available for multi-unit line-up configurations.
• Optional night lid available as an accessory.
• Manufactured in Australia.
• Overall dimensions: 610mm wide x 800mm deep x 1120mm high.
• Unit weight: 90kg.

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 90
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Ignition Type: N/A (Electric)
• Shipping Weight: 90
• Packed Width (mm): 920.0
• Packed Height (mm): 1320.0
• Packed Depth (mm): 1100.0
• Shipping Cubic: 1.335840000m3
• Capacity (Litres): 45 L oil
• Power / Gas Input: 21 kW
• Power Supply: 415V 3ph
• Power Rating: 24 kW
• Power (kW): 21
• Voltage/Phase: 415V 3Ø + N + E
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 93°C - 190°C
• Installation Type: Freestanding
• Control Type: Digital Thermostat
• Mounting Type: Freestanding
• Fuel Type: Electric
