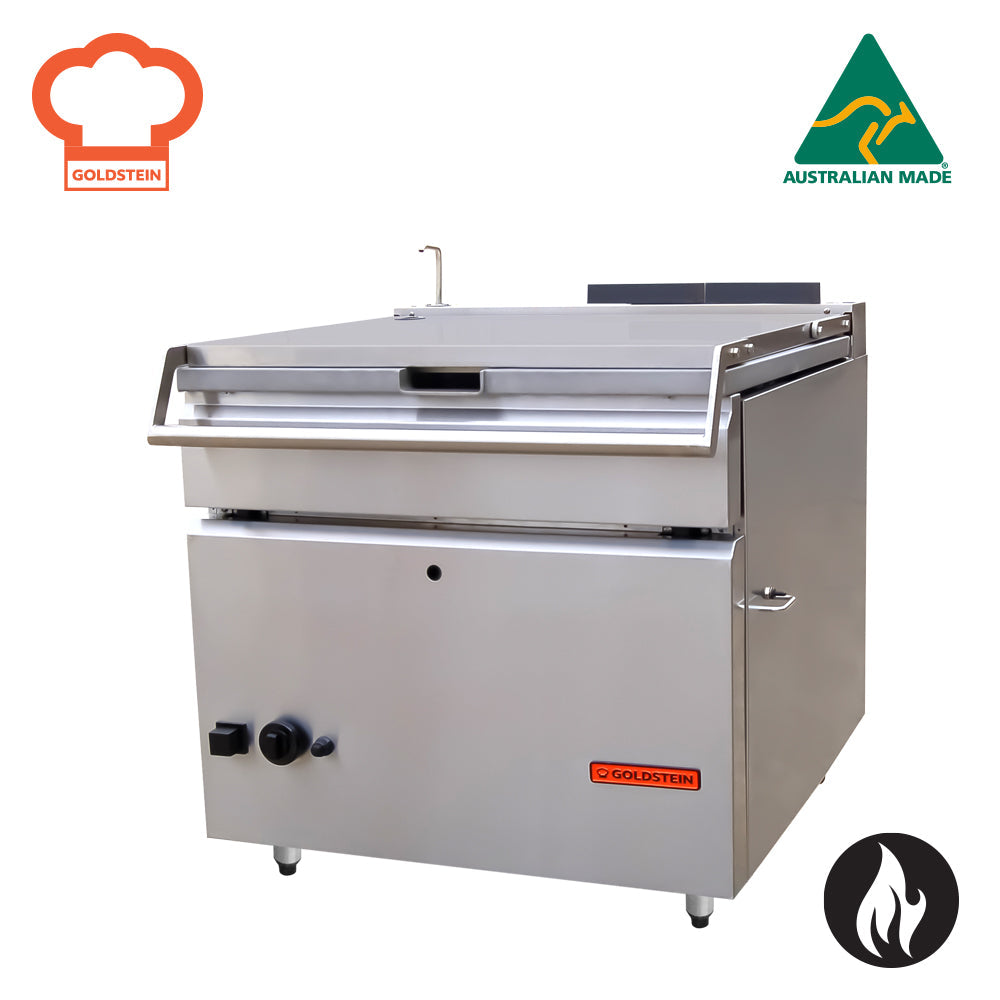

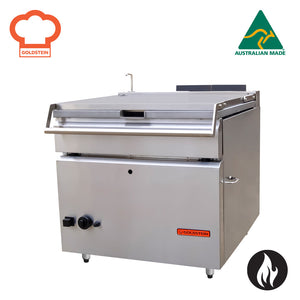

Goldstein BPG135 135L Tilting Gas Bratt Pan

The Goldstein BPG135 is a 135-litre tilting gas bratt pan designed and manufactured in Australia for the demands of high-volume commercial kitchens. Its 10 mm thick Duplex seamless stainless steel base works in concert with powerful burners located directly beneath the pan to deliver exceptional heat retention, uniform heat distribution across the entire cooking surface, and a smooth surface that is straightforward to clean. The heavy-duty electronic tilt mechanism allows operators to pour or unload contents safely and efficiently, reducing manual effort during busy service periods.

Built around a fully welded stainless steel frame, the BPG135 features an ergonomically designed counterbalanced, screwless double-skin lid with a heavy-duty lifting mechanism and a drip zone at the rear to contain condensation. The pan's rounded corners and absence of internal edges, combined with a wide opening and a dedicated pouring spout, make unloading and cleaning notably faster. Battery-operated spark ignition, a pilot flame failure safety device, a safety gas cut-off valve, and a quarter-turn tap with fixed spout are all included as standard, while all serviceable components are accessible from the front of the unit.

Key Benefits

• 135-litre capacity handles large batch cooking in a single vessel, reducing the number of separate cooking steps during high-volume service.
• Heavy-duty electronic tilt mechanism lets staff pour or unload safely without manual lifting, minimising strain and spillage risk.
• 10 mm thick Duplex seamless stainless steel base retains heat effectively and spreads it evenly, producing consistent results across the full cooking surface.
• Temperature range of 50°C to 300°C with simple high-to-low flame adjustment gives operators precise control for delicate simmering through to high-heat searing.
• Rounded pan corners, a wide opening, and a smooth seamless base eliminate food traps and make thorough cleaning significantly faster between service periods.
• Counterbalanced double-skin lid with drip zone contains condensation at the rear, protecting operators from steam burns and keeping the floor dry.
• Front-serviceable components reduce maintenance downtime because technicians can access all parts without moving the unit.
• Adjustable legs ranging from 140 mm to 170 mm allow the pan to be levelled precisely on uneven kitchen floors.
• Australian-made construction with a 2-year parts and labour warranty provides confidence in long-term reliability and local support.

Key Features

• 135-litre nominal capacity stainless steel pan
• Smooth stainless steel exterior with an all-new sleek design
• Powerful burners located in the base of the pan for direct, efficient heat transfer
• 10 mm thick Duplex seamless stainless steel base for superior heat retention, even heat distribution, and ease of cleaning
• Pan interior designed with rounded corners and no edges to eliminate food traps
• Wide opening for straightforward unloading and thorough cleaning access
• Dedicated pouring spout for controlled emptying of liquids
• Heavy-duty electronic tilt mechanism as standard
• Ergonomically designed counterbalanced, screwless double-skin lid with a heavy-duty lifting mechanism
• Drip zone at the back of the lid to contain condensation
• Simple high-to-low flame adjustable control
• Temperature range: 50°C to 300°C
• Battery-operated spark ignition
• Safety gas cut-off valve
• Pilot flame failure device
• Quarter-turn tap and fixed spout on top for water fill
• Water connection: 1/2" quick connect water inlet
• Gas rating: 120 MJ/h (Natural Gas) / 100 MJ/h (LPG)
• Gas connection: 3/4" BSP Male
• Electrical connection: 10 A / 230 V plug
• Adjustable legs: 140 mm to 170 mm
• Heavy-duty fully welded stainless steel frame for rigidity and durability
• All components easily serviceable from the front
• Freestanding installation
• Manual tilt option available
• Australian made
• 2-year parts and labour warranty

Specifications

• Width (mm): 995
• Depth (mm): 905
• Height (mm): 1070
• Weight (kg): 270
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4″ BSP Male
• Ignition Type: Piezo with Flame Failure
• Shipping Weight: 270
• Packed Width (mm): 1300.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 1200.0
• Shipping Cubic: 1.872000000m3
• Capacity (Litres): 135 L
• Power / Gas Input: 120 MJ
• Power Rating: 120 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 100
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 50°C - 300°C
• Installation Type: Freestanding
• Control Type: Manual Tilt
• Mounting Type: Freestanding
• Fuel Type: Gas
