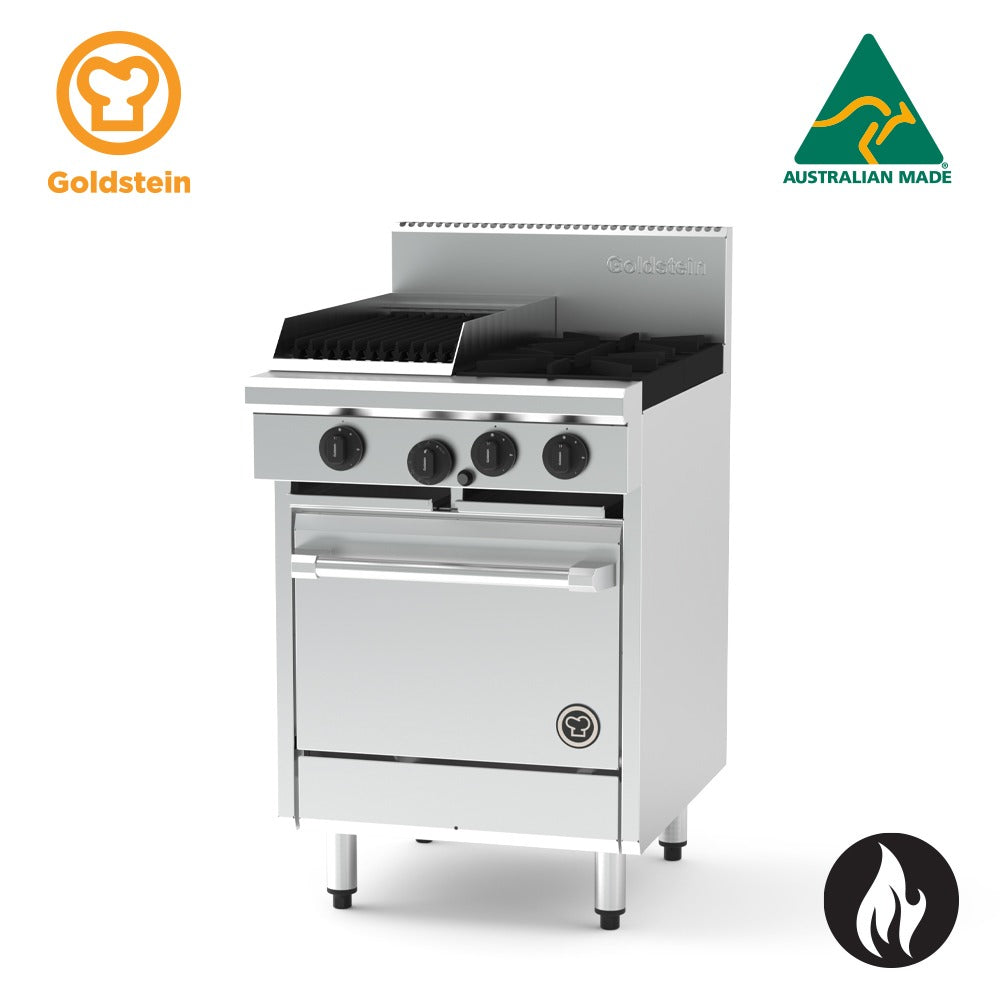

Goldstein PF12Q220FF-X 800 X-Series 500mm (20in) Gas Fan Forced Oven Range with 2 Burners and Chargrill

The Goldstein PF12Q220FF-X is part of the Australian-made 800 X-Series and brings together two high-performance gas cooktop burners, a 305 x 510mm cast iron chargrill, and a 500mm (20-inch) gas fan forced oven into a single 610mm-wide unit purpose-built for demanding commercial kitchen environments. The chargrill and cooktop section is positioned on the left-hand side, and the modular cooktop design accommodates burner, griddle plate, and chargrill sections across 305mm and 610mm configurations, giving operators the flexibility to adapt the unit as service requirements evolve.

Built around a heavy-duty welded stainless steel body with fully welded cooktop surrounds and a vitreous enamel-lined oven cavity, the PF12Q220FF-X is engineered for structural rigidity, hygiene, and straightforward daily maintenance. Constant pilot flame ignition with pilot flame failure safety on open burners and the oven burner ensures energy-efficient, safe operation across extended service periods, while adjustable legs and ergonomic controls support a practical and comfortable working environment.

Key Benefits

• Fan forced oven delivers even heat distribution for consistent baking and roasting results across a full GN 1/1 cavity
• Reversible cast iron chargrill grates offer two char pattern options and two levelling positions, giving chefs greater control over cooking outcomes
• Constant pilot flame operation maximises energy efficiency and reduces ignition delays during busy service
• Pilot flame failure protection on open burners and the oven burner improves kitchen safety and meets commercial safety expectations
• Modular cooktop design allows burner, griddle, and chargrill configurations to be reconfigured as menu needs change
• Fully welded stainless steel body with spill zones and removable drip trays simplifies cleaning and reduces downtime between services
• Vitreous enamel oven interior resists staining and wipes clean with minimal effort, reducing labour on end-of-service cleaning
• Adjustable legs from 140mm to 170mm accommodate uneven floors and allow the correct ergonomic working height to be set
• Australian-made construction supports local serviceability and fast access to parts and technical support

Key Features

• 2 x 33 MJ removable high-performance cooktop burners with even heat output; 40% of flame ports located in the centre cross of each burner for balanced heat
• Cast iron star trivets on cooktop burners
• 305 x 510mm heavy-duty cast iron reversible chargrill grates with two char pattern options
• Chargrill levelling adjustable to flat or gradient position
• 2 x 20 MJ inline radiant burners per 305mm chargrill section
• Ceramic rocks option available for the chargrill to increase heat retention and enhance flavour
• Chargrill and cooktop section positioned on the left-hand side
• 500mm (20-inch) gas fan forced oven with thermostatic control from 100°C to 280°C
• Piezo ignition on oven burner
• GN 1/1 compatible oven cavity with three rack positions; heavy-duty chrome wire racks that lift out and reposition without tools
• Oven cavity and door fully insulated and lined with vitreous enamel, providing uniform heat retention and a surface that cleans back easily
• Constant pilot flame system for maximised operating efficiency
• Pilot flame failure safety device on open burners and oven burner
• Heavy-duty welded stainless steel body for structural rigidity and long-term durability
• Fully welded surrounds on griddle and chargrill sections for added strength and hygiene
• Stainless steel fascia and sides
• Spill zones and removable drip trays for contained, easy clean-up; oversized heat-resistant reinforced control knobs with clear high-to-low flame markings
• Ergonomic door handle and angled corners for a practical, streamlined appearance
• Adjustable legs from 140mm to 170mm
• Flexible modular cooktop design compatible with 305mm and 610mm burner, griddle, and chargrill configurations
• Across the X-Series range, operators can select from gas static, fan forced, and convection oven variants in gastronorm-compatible sizes, as well as electrically heated static oven models
• Country of origin: Australia

Specifications

• Width (mm): 610
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 189
• Power / Gas Input: 126/124 MJ
• Country of Origin: Australia (Made)
