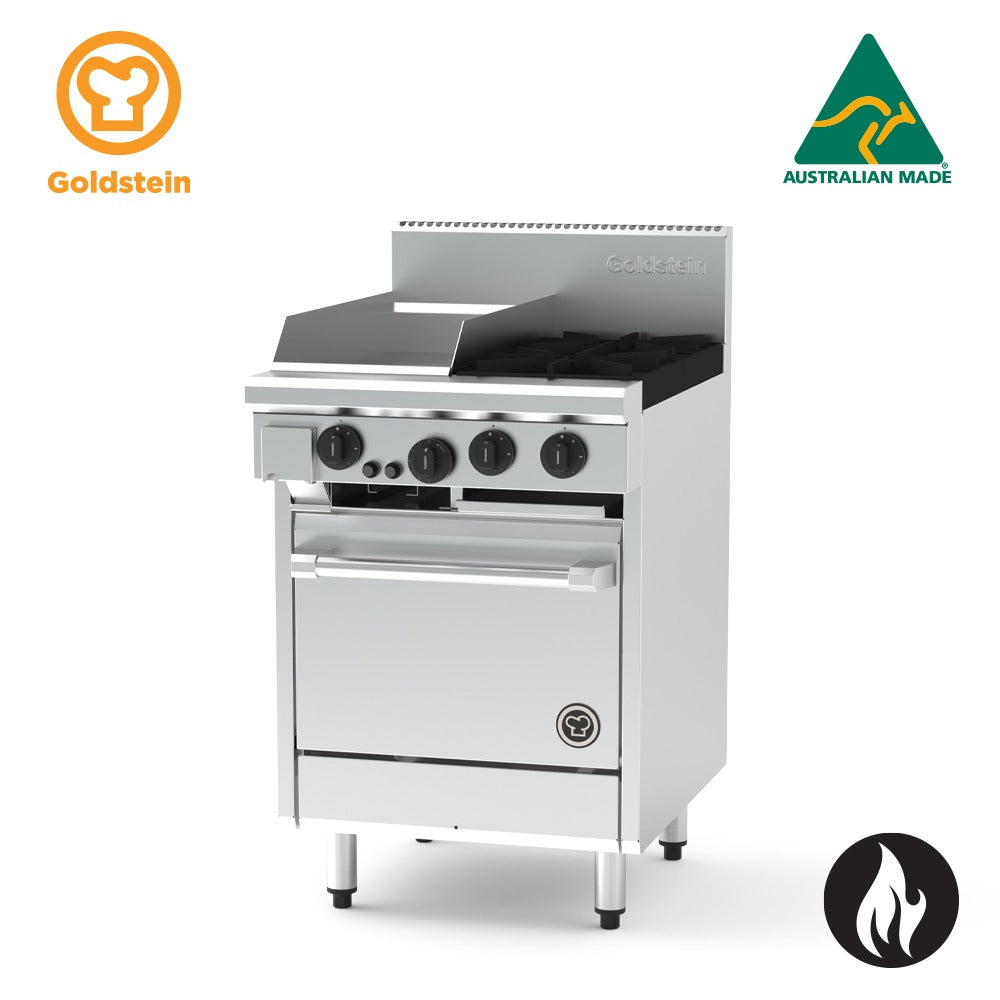

Goldstein PF12G220FF-X 800 X-Series 500mm (20in) Gas Fan Forced Oven Range

The Goldstein PF12G220FF-X is a heavy-duty commercial gas oven range from the Australian-made 800 X-Series, combining two high-performance cooktop burners and a 305 x 520mm thick mild steel griddle plate with a 500mm (20in) gas fan forced oven. Designed for the rigours of busy commercial kitchens, it features a fully welded stainless steel body, gastronorm-compatible oven cavity, and a flexible modular cooktop layout that suits a wide range of cooking operations.

Built to maximise output and minimise downtime, the PF12G220FF-X incorporates constant pilot flame ignition for energy efficiency, flame failure safety on both open burners and the oven burner, and vitreous enamel oven lining for even heat distribution and straightforward cleaning. Adjustable legs, removable drip trays, and an easy-to-service design make this range a practical long-term investment for commercial kitchens and venues across Australia.

Key Benefits

• Gas fan forced oven delivers consistent, even heat throughout the cavity for reliable baking and roasting across full service periods.
• Constant pilot flame system maximises operating efficiency and reduces energy waste compared to repeated electronic ignition.
• Flame failure safety on open burners and oven burner protects staff and kitchen in the event of unexpected flame extinction.
• Fully welded stainless steel body and surrounds provide exceptional rigidity and long-term durability under heavy daily use.
• GN 1/1 compatible oven cavity with three-position racking supports flexible gastronorm tray configurations for high-volume production.
• 20mm thick mild steel griddle plate provides superior heat retention and even cooking across the entire griddle surface.
• Vitreous enamel oven interior and door lining simplifies cleaning and helps maintain consistent cooking temperatures.
• Modular cooktop design allows combinations of burners, griddle plates, and chargrill options to suit changing menu requirements.
• Adjustable legs (140-170mm) and removable spill zone drip trays make installation, levelling, and daily cleaning straightforward.

Key Features

• Australian-made, heavy-duty fully welded stainless steel body for rigidity and long service life.
• Stainless steel fascia and sides throughout.
• Two removable high-performance cast iron star trivet cooktop burners, each rated at 33 MJ, with 40% of flame ports concentrated in the centre cross for even heat.
• 305 x 520 x 20mm thick mild steel griddle plate positioned on the left-hand side of the cooktop.
• Griddle burner output rated at 20 MJ per 305mm section.
• Piezo ignition on both cooktop/griddle and oven burner.
• Constant pilot flame for all burners, maximising energy and operational efficiency.
• Pilot flame failure safety on open burners and dedicated flame failure protection on the oven burner.
• 500mm (20in) gas fan forced oven with thermostatic control from 100°C to 280°C.
• Oven and door fully insulated and lined with vitreous enamel for even heat distribution and easy cleaning.
• GN 1/1 gastronorm-compatible oven cavity.
• Three-position oven racking with heavy-duty chrome wire rack supports designed for easy removal.
• Fully welded surrounds for griddle section.
• Flexible modular cooktop design accommodating various combinations of burners, griddle plates, and chargrill options in 305mm and 610mm sections.
• Large heat-resistant reinforced control knobs with easy-to-view settings and high-to-low flame adjustment.
• Ergonomic door handle and angled corners for a clean, professional appearance.
• Removable spill zone and drip trays for ease of cleaning.
• Adjustable legs ranging from 140mm to 170mm for flexible installation levelling.
• Total gas input: 106 MJ (cooktop) / 106 MJ (oven).
• Dimensions: 610mm wide x 850mm deep x 1120mm high; weight 170kg.
• Country of origin: Australia.
• Also available as electric fan forced (PF12G220EFF-X) and electric static oven (PF12G220E-X) variants within the same X-Series platform.

Specifications

• Width (mm): 610
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 170
• Power / Gas Input: 106/106 MJ
• Country of Origin: Australia (Made)
