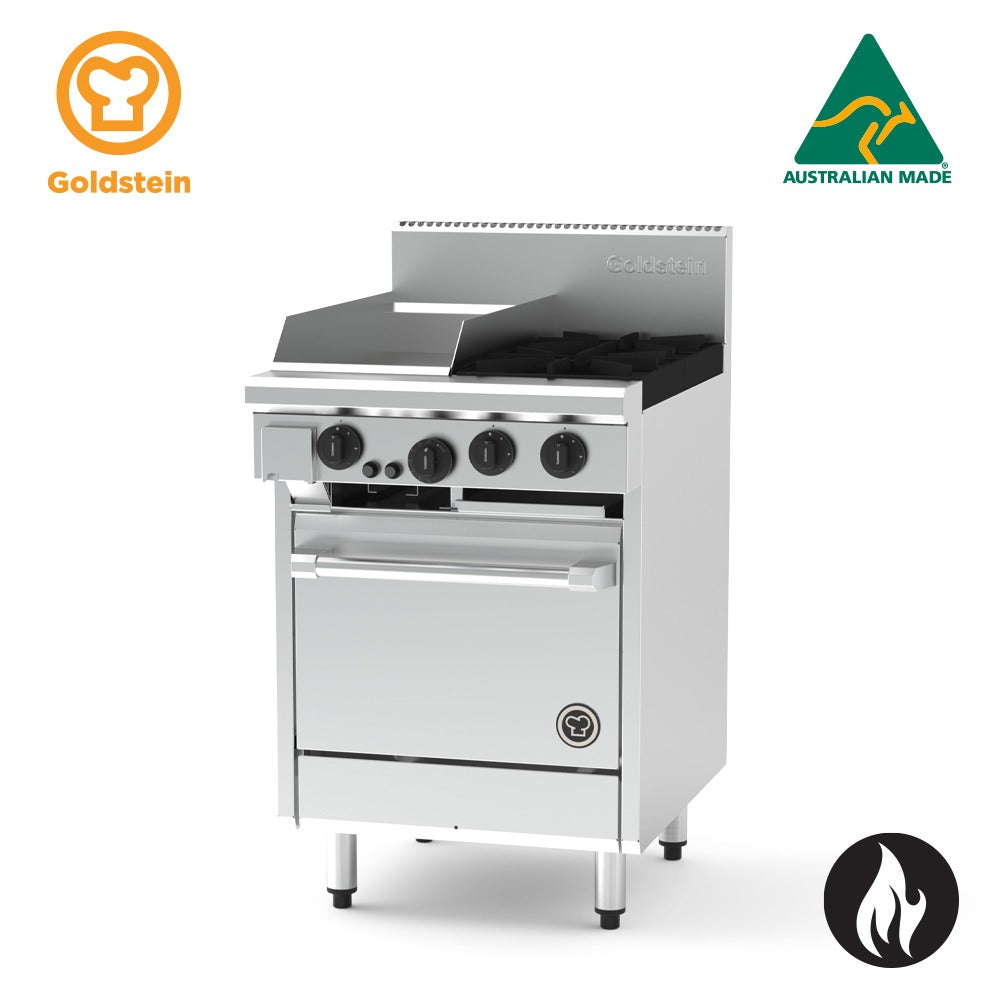

Goldstein PF12G220-X 800 X-Series 500mm Gas Oven Range with 2 Burners and 305mm Griddle

The Goldstein PF12G220-X is an Australian-made commercial gas oven range from the 800 X-Series, combining two high-performance 33 MJ open cooktop burners with a 305 x 520 x 20mm smooth mild steel griddle plate and a gas static oven in a compact 610mm-wide freestanding unit. The heavy-duty fully welded stainless steel body, cast iron star trivets, and a GN 1/1 static oven lined with vitreous enamel deliver consistent, easy-to-maintain performance across baking, roasting and grilling tasks in professional kitchen environments.

Part of a flexible modular cooktop platform, the X-Series allows operators to configure cooktop sections with additional burners, 305mm or 610mm griddle plates, or chargrill options to suit evolving kitchen needs. The oven cavity offers thermostatic control from 100°C to 280°C with Piezo ignition and flame failure safety, while alternative oven configurations including gas fan-forced, electric fan-forced and electric static ovens are available as separate model variants.

Key Benefits

• Consistent, even heat across cooktop burners with 40% of flame ports concentrated in the centre cross of the burner, improving cooking uniformity and reducing hot spots.
• Constant pilot flame on open burners maximises energy efficiency and reduces re-ignition time during busy service periods.
• Pilot flame failure protection on open burners and a flame failure safeguard on the oven burner provide an important safety layer in high-traffic kitchens.
• The oven cavity and door, both insulated and finished with a vitreous enamel lining, retain and distribute heat evenly to cut energy consumption while making clean-up between services straightforward.
• GN 1/1 oven capacity with three-position racking and robust chrome wire racks that lift out without tools allows flexible tray configuration using standard gastronorm trays.
• Fully welded stainless steel body and welded griddle and chargrill surrounds deliver long-term structural rigidity under continuous commercial use.
• Modular cooktop design enables various combinations of burners, griddle plates and chargrills in 305mm or 610mm sections to be configured, protecting the investment as menu requirements change.
• Adjustable legs from 140mm to 170mm allow levelling on uneven kitchen floors and simplify installation.
• Made in Australia, with a design that is easy to service and built for reliable daily output in demanding commercial environments.

Key Features

• Heavy-duty fully welded stainless steel body construction for rigidity and long-term durability.
• Fully welded surrounds for griddle and chargrill sections.
• Two removable 33 MJ high-performance open cooktop burners with even heat distribution.
• 40% of burner flame ports concentrated in the centre cross for improved cooking uniformity.
• Cast iron star trivets on cooktop burners.
• 305 x 520 x 20mm smooth mild steel griddle plate positioned on the left-hand side.
• 20 MJ griddle burner per every 305mm griddle section.
• Piezo ignition with flame failure protection on both open burners and the oven burner.
• Constant pilot flame on open burners for operational and energy efficiency.
• Gas static oven with thermostatic control from 100°C to 280°C.
• Oven cavity and door fully insulated and finished with a vitreous enamel lining that promotes uniform heat retention and simplifies cleaning.
• GN 1/1 oven capacity (internal dimensions 500 x 560 x 355mm) with three-position racking.
• Robust chrome wire rack supports that can be removed without tools for cleaning and reconfiguration.
• Stainless steel fascia and sides incorporating a spill zone and removable drip trays that make routine cleaning quick and simple.
• Large heat-resistant reinforced control knobs with clearly visible settings, offering full flame adjustment from high to low output.
• Ergonomic door handle and angled corners for a sleek, practical design.
• Adjustable legs from 140mm to 170mm.
• Flexible modular cooktop platform compatible with 305mm and 610mm burner, griddle and chargrill configurations.

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 165
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 96
• Shipping Weight: 180
• Packed Width (mm): 720.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 920.0
• Shipping Cubic: 0.794880000m3
• Power / Gas Input: 106/106 MJ
• Power Rating: 96 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 106
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
