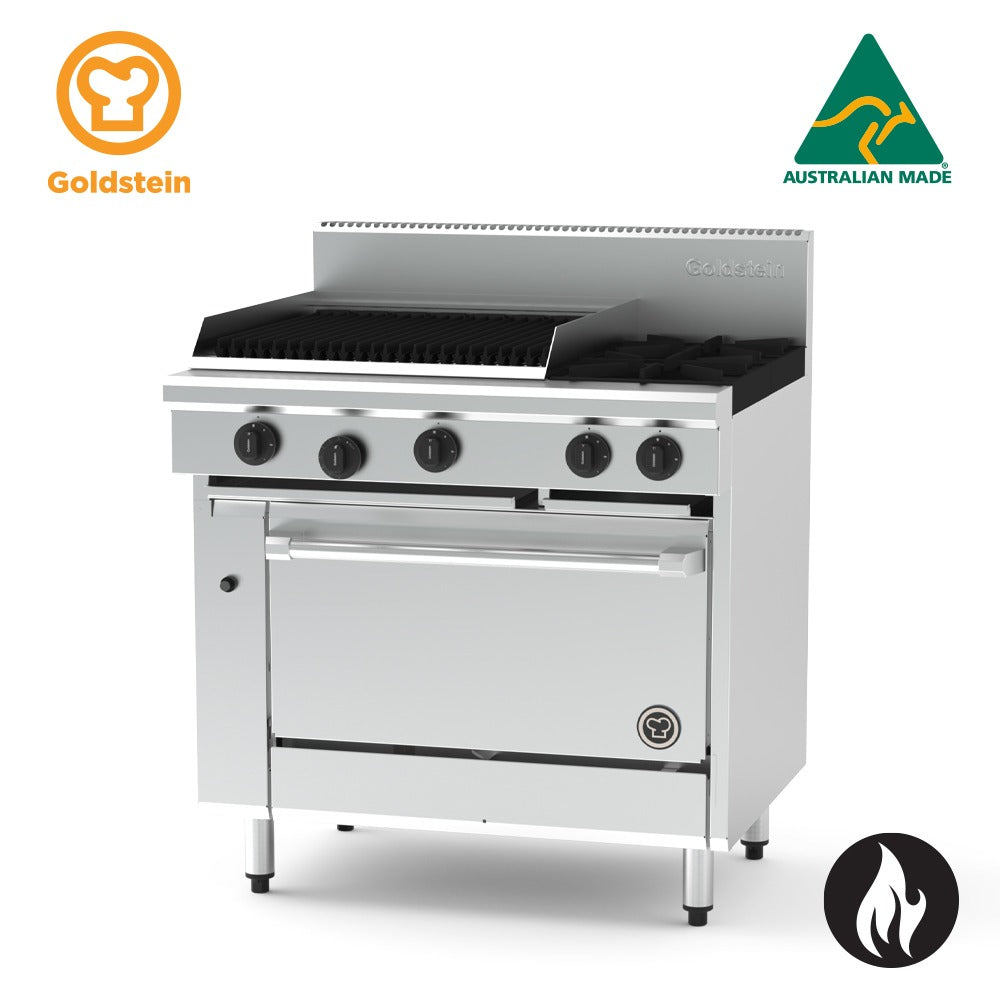

Goldstein PF24Q228FF-X 800 X-Series 700mm Fan Forced Gas Oven Range with 2 Burners and 610mm Chargrill

The Goldstein PF24Q228FF-X is part of the Australian-made 800 X-Series modular commercial cooking range, combining two high-output open burners, a 610mm cast iron chargrill, and a 700mm fan forced gas oven into a single 914mm-wide unit. Designed for the demands of busy commercial kitchens, it delivers consistent, even heat across every cooking zone, making it equally suited to high-volume roasting, baking, chargrilling, and stovetop cooking.

Built on a heavy duty fully welded stainless steel body, the PF24Q228FF-X is engineered for long-term durability and straightforward daily maintenance. Its modular cooktop design is compatible with a wide range of configurations, and the fan forced oven cavity is gastronorm compatible, thermostatic, and fully insulated for precise, reliable results every service.

Key Benefits

• Fan forced oven with thermostatic control between 100°C and 280°C ensures even heat distribution for consistent baking and roasting results.
• Gastronorm 1/1 compatible oven cavity with three-position racking maximises flexibility for batch cooking and varying pan sizes.
• 610mm chargrill with heavy duty reversible cast iron grates and inline radiant burners delivers authentic char flavour, with an optional ceramic rocks upgrade for enhanced heat retention.
• 33 MJ removable cooktop burners with 40% of flame ports concentrated in the centre cross provide powerful, even heat distribution for rapid cooking on every ring.
• Constant pilot flame design improves energy efficiency, while pilot flame failure protection on open burners and the oven burner enhances operational safety.
• Fully welded stainless steel body, stainless fascia and sides, plus removable spill zone and drip trays simplify cleaning and reduce downtime between services.
• Piezo ignition on the oven allows fast, reliable start-up without the need for a separate lighter.
• Adjustable legs from 140mm to 170mm accommodate uneven floors and allow precise levelling in any kitchen installation.
• Australian-made construction with an easy-to-service design supports long-term reliability and minimises maintenance costs in high-use commercial environments.

Key Features

• Two 33 MJ removable high-performance cooktop burners with cast iron star trivets and even heat distribution across the burner face.
• 610mm (28in) chargrill with heavy duty cast iron reversible grates, offering both flat and gradient levelling options.
• Two 20 MJ inline radiant burners per 305mm chargrill section.
• Optional ceramic rocks for the chargrill to increase heat retention and enhance flavour.
• 700mm fan forced gas oven with thermostatic control from 100°C to 280°C.
• Oven and door fully insulated and lined with vitreous enamel for even heat distribution and straightforward cleaning.
• GN 1/1 compatible oven cavity with three-position racking and heavy duty chrome wire rack supports designed for easy removal.
• Piezo ignition for the oven burner.
• Constant pilot flame on burners for maximised operating and energy efficiency.
• Pilot flame failure safety on open cooktop burners and the oven burner.
• Heavy duty fully welded stainless steel body for rigidity and long-term durability.
• Fully welded surrounds on chargrill and griddle sections.
• Flexible modular cooktop design supports various combinations of burners, griddle plates, and chargrill sections in 305mm, 610mm, and 914mm configurations.
• Stainless steel fascia and sides with removable spill zone and drip trays for easy cleaning.
• Large heat-resistant reinforced control knobs with clearly visible high-to-low flame settings.
• Ergonomic door handle and angled corners for a streamlined, professional appearance.
• Chargrill and BBQ section positioned on the left-hand side of the unit.
• Adjustable legs ranging from 140mm to 170mm for flexible installation.
• Overall dimensions: 914mm wide x 850mm deep x 1120mm high.
• Gas input: 174/172 MJ; electrical input: 0.043 kW.
• Made in Australia.

Specifications

• Width (mm): 914
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 283
• Power / Gas Input: 174/172 MJ; 0.043 kW
• Country of Origin: Australia (Made)
