Overview

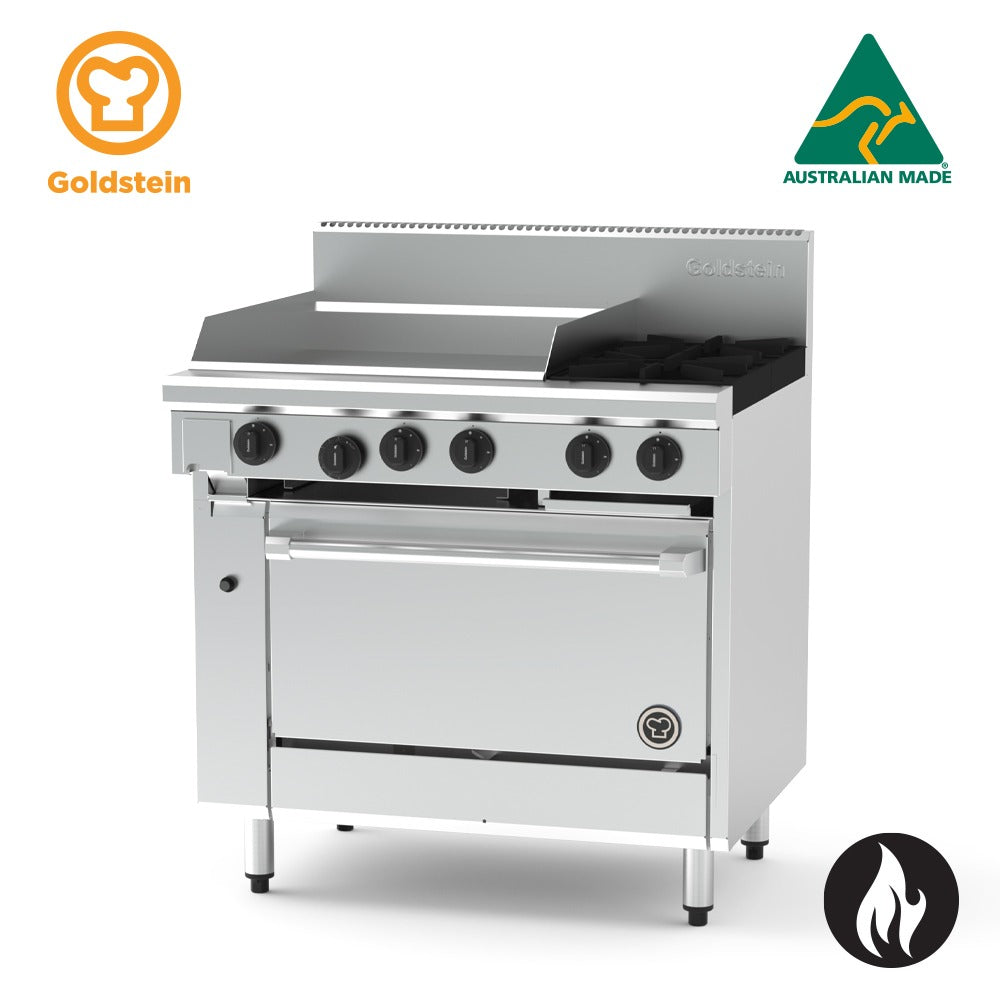

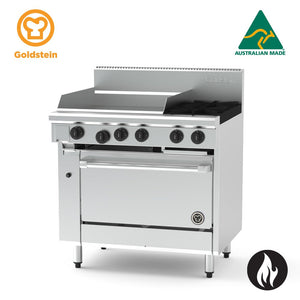

Goldstein PF24G228EFF-X 800 X-Series 700mm (28in) Electric Fan Forced Oven Range

The Goldstein PF24G228EFF-X is part of the 800 X-Series modular commercial range, combining a 700mm (28in) electric fan forced oven with a flexible cooktop configuration featuring 2 high-performance gas burners and a 610 x 520 x 20mm thick mild steel griddle plate. Designed and made in Australia, it is built for the rigours of busy commercial kitchens, with a heavy-duty fully welded stainless steel body that delivers long-term structural integrity and ease of maintenance.

The fan forced electric oven provides consistent, even heat distribution across its gastronorm-compatible cavity, with thermostatic control ranging from 100°C to 280°C and a fully insulated vitreous enamel interior suited to reliable baking, roasting and general oven work. The modular X-Series platform allows operators to select from a range of cooktop, griddle, chargrill and oven combinations to suit their kitchen's specific workflow requirements.

Key Benefits

• Fan forced electric oven delivers even, consistent heat throughout the cavity for reliable baking and roasting results across every service.
• Vitreous enamel oven interior simplifies cleaning and helps maintain hygienic conditions during high-volume use.
• Modular cooktop design supports various arrangements of burners, griddle plates and chargrill sections across 305mm, 610mm and 914mm module sizes, giving kitchens the flexibility to adapt the range to changing menu needs.
• 20mm thick mild steel griddle plate retains heat effectively for consistent searing and cooking performance across the griddle surface.
• Constant pilot flame on gas burners maximises operating and energy efficiency during service periods.
• Pilot flame failure safety on open burners and oven burner protects staff and equipment if a flame goes out unexpectedly.
• Heavy-duty welded stainless steel body, with fully welded construction around griddle and chargrill sections, provides long-term rigidity and durability under daily commercial use.
• Adjustable legs (140–170mm) allow levelling on uneven kitchen floors, while removable spill zones and drip trays that lift out cleanly make routine cleaning quick and straightforward.
• GN 1/1 compatible oven cavity with three rack positions and wire rack supports that remove without tools accommodates standard gastronorm trays for streamlined kitchen workflow.

Key Features

• 700mm (28in) electric fan forced oven with 5.4 kW electric input
• 2 x removable high-performance 33 MJ gas cooktop burners with even heat distribution and 40% of flame ports concentrated at the central cross point of the burner head
• Cast iron star trivets positioned on cooktop burners
• 610 x 520 x 20mm thick mild steel griddle plate positioned on the left-hand side
• 20 MJ griddle burner per every 305mm griddle section
• Piezo ignition on both griddle and oven
• Constant pilot flame on open gas burners for energy efficiency
• Pilot flame failure safety device on open burners and oven burner
• Oven thermostatic control: 100°C to 280°C
• Fully insulated oven and door with vitreous enamel lining, providing uniform heat retention and a surface that cleans back easily
• GN 1/1 compatible oven cavity with three rack height positions and chrome wire rack supports engineered for tool-free removal
• Heavy-duty fully welded stainless steel body, fascia and sides for rigidity and durability
• Fully welded construction around all griddle and chargrill sections for added structural integrity
• Modular X-Series cooktop platform accommodating burner, griddle plate and chargrill arrangements in 305mm, 610mm and 914mm module configurations
• Large heat-resistant reinforced control knobs with clearly legible markings and a full range from high to low flame output
• Removable spill zones and drip trays that can be lifted clear for straightforward routine cleaning
• Ergonomic door handle and angled corners for a streamlined, practical design
• Adjustable legs: 140–170mm height range
• Total gas input: 106 MJ; electric oven input: 5.4 kW
• Overall dimensions: 914mm (W) x 850mm (D) x 1120mm (H)
• Weight: 229 kg
• Designed and made in Australia

Specifications

• Width (mm): 914
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 229
• Power / Gas Input: 106/106 MJ; 5.4 kW
• Country of Origin: Australia (Made)
