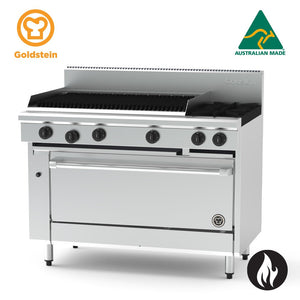

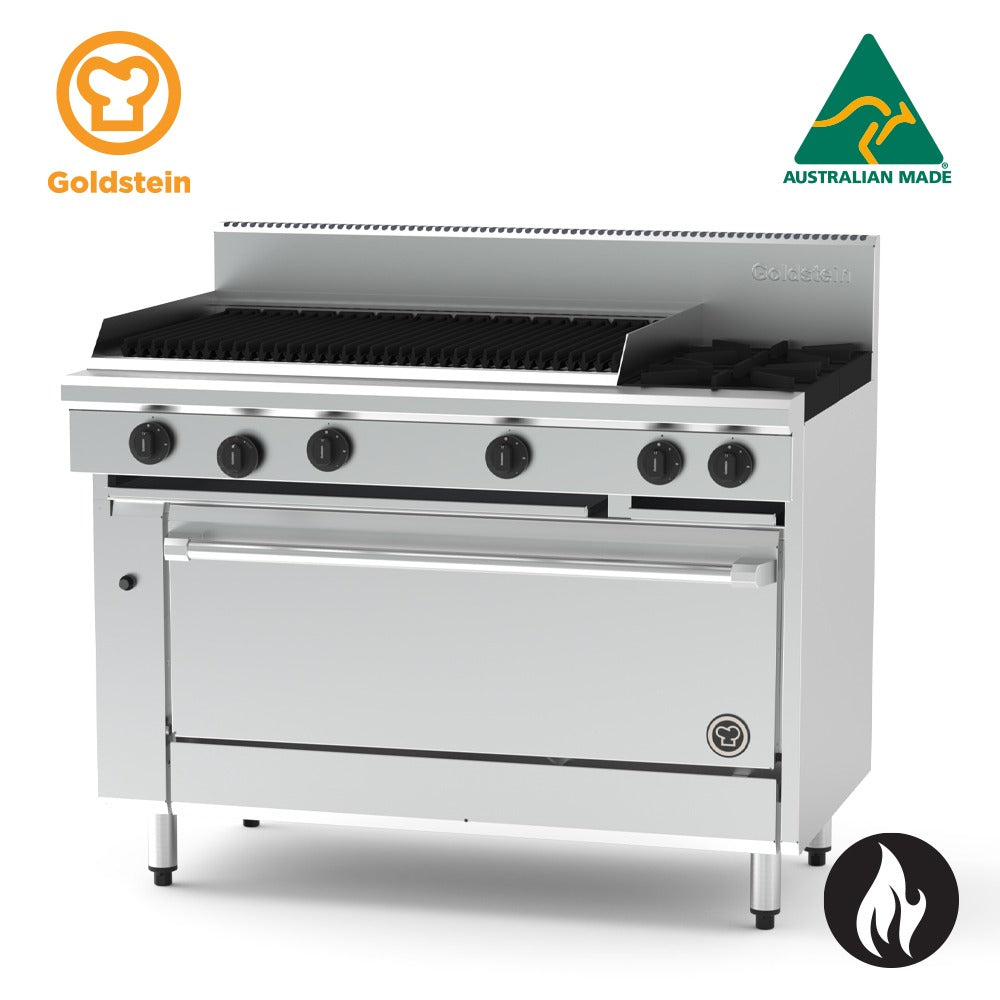

Goldstein PF36Q240FF-X 800 X-Series 1005mm (40in) Fan Forced Gas Oven Range

The Goldstein PF36Q240FF-X is a commercial-grade oven range from the 800 X-Series, measuring 1005mm (40in) wide and built for demanding kitchen environments. It combines 2 high-performance cooktop burners with a 914 x 510mm BBQ chargrill section and a 1005mm fan forced gas oven, forming a versatile cooking platform well suited to high-volume food service operations. Manufactured in Australia, the unit is built around a heavy-duty fully welded stainless steel body that delivers long-term rigidity and durability.

The X-Series modular design allows this unit to integrate into flexible cooktop configurations, combining burners, griddle plates, and chargrill sections to suit changing menu demands. The fan forced gas oven provides consistent, uniform heat throughout the cavity with thermostatic control between 100°C and 280°C, making it equally capable for baking, roasting, and convection cooking. Practical details including easy-clean stainless steel surfaces, drip trays, spill zones, and adjustable legs ensure the unit supports efficient day-to-day kitchen operations.

Key Benefits

• Fan forced gas oven delivers consistent, uniform heat throughout the cavity, minimising hot spots for reliable baking and roasting results
• Large 914 x 510mm BBQ chargrill section adds high-capacity grilling to the one unit, maximising cooktop versatility
• Thermostatic oven control from 100°C to 280°C gives precise temperature management across a wide range of cooking applications
• Modular X-Series design allows the cooktop configuration to be adapted with various burner, griddle, and chargrill combinations as operational needs change
• Heavy-duty fully welded stainless steel construction provides long-term structural integrity in high-use commercial kitchen environments
• Pilot flame failure safety system on open burners and oven burner protects against unintended gas flow
• Stainless steel fascia, spill zones, and removable drip trays simplify daily cleaning and reduce downtime between services
• Adjustable legs (140-170mm) allow the unit to be levelled on uneven floors for safe and stable operation
• Made in Australia, ensuring local serviceability and parts availability to minimise maintenance disruptions

Key Features

• 800 X-Series 1005mm (40in) oven range
• 2 high-performance 33 MJ cooktop burners with even heat distribution; 40% of flame ports located in the centre cross of each burner for peak productivity
• Cast iron star trivets on cooktop burners
• 914 x 510mm BBQ chargrill section fitted with heavy-duty cast iron grates that are reversible between flat and gradient levelling positions
• Each 305mm chargrill section is served by 2 x 20 MJ inline radiant burners
• Ceramic rocks option available on chargrill to increase heat retention and enhance flavour
• 1005mm fan forced gas oven with gastronorm-compatible cavity
• Oven thermostatic control range: 100°C to 280°C
• Piezo ignition on oven burner
• Oven interior and door fully insulated and finished with vitreous enamel coating, promoting uniform heat retention and straightforward maintenance
• GN 1/1 oven capacity with a 3-position rack configuration; substantial chrome wire shelves engineered for tool-free removal
• Constant pilot flame for maximised operating and energy efficiency
• Pilot flame failure safety device on open burners and oven burner
• Fully welded stainless steel body, fascia, and sides; fully welded surrounds for chargrill section, all contributing to overall rigidity and durability
• Stainless steel spill zone and removable drip trays; oversized heat-resistant reinforced control knobs with clearly visible high-to-low flame markings
• Ergonomic door handle and angled corners for a clean, professional appearance
• Chargrill and BBQ section positioned on the left-hand side
• Adjustable legs: 140-170mm height range
• Flexible modular cooktop design compatible with 305mm, 610mm, and 914mm burner, griddle, and chargrill configurations
• Total gas input: 221 MJ (gas) / 0.043 kW (electric pilot)
• Dimensions: 1219mm wide x 850mm deep x 1120mm high
• Country of origin: Australia

Specifications

• Width (mm): 1219
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 378
• Power / Gas Input: 221/216 MJ; 0.043 kW
• Country of Origin: Australia (Made)
