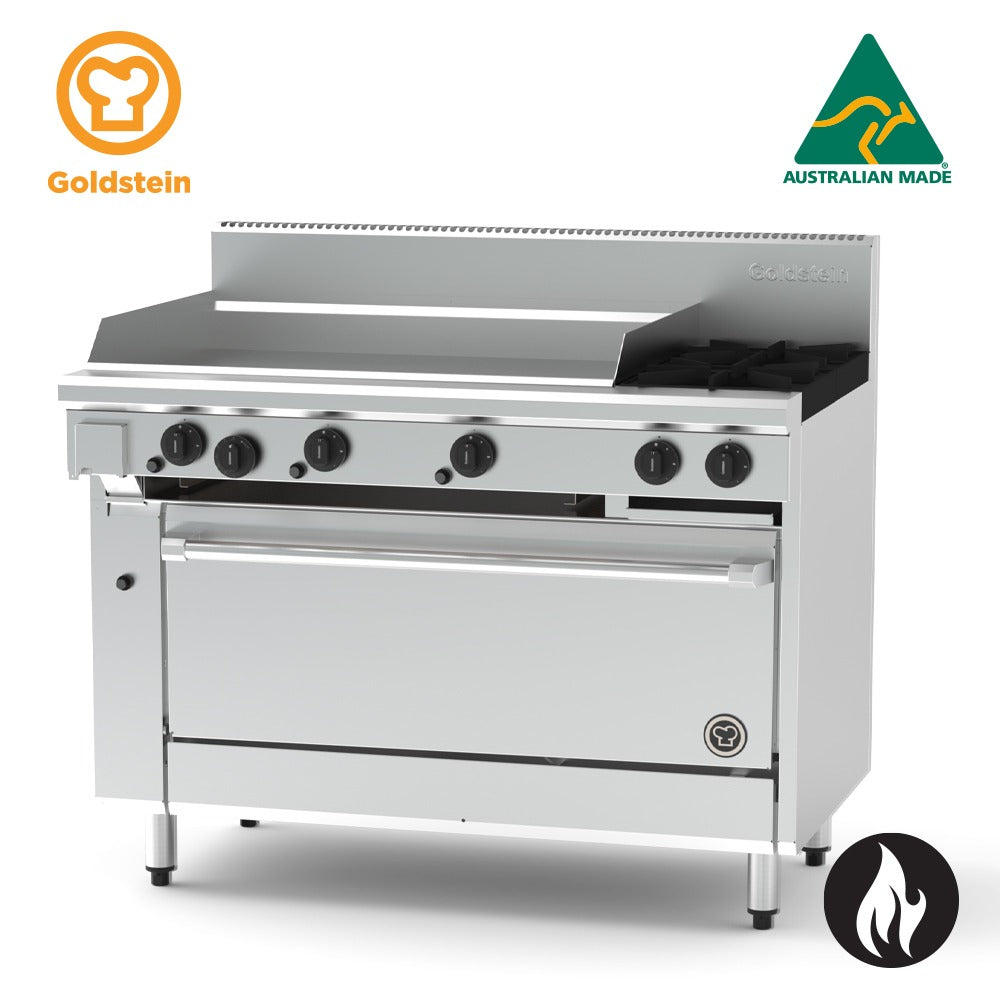

Goldstein PF36G240FF-X 800 X-Series 1005mm (40") Fan Forced Gas Oven Range with 2 Burners and 914mm Griddle

The Goldstein PF36G240FF-X is a heavy-duty commercial oven range from the Australian-made 800 X-Series, spanning 1219mm wide and combining two high-performance 33 MJ gas cooktop burners, a 914 x 520 x 20mm mild steel griddle plate, and a 1005mm (40-inch) fan forced gas oven in a single robust unit. The flexible modular cooktop design is part of a broader platform that supports various combinations of burners, griddle plates, and chargrill sections across 305mm, 610mm, 914mm, and 1219mm configurations, making it adaptable to evolving kitchen demands.

Built around a fully welded stainless steel body with stainless fascia and sides, this range is engineered for the rigour of busy commercial kitchens. The gas fan forced oven offers gastronorm-compatible GN 1/1 capacity with three-position racking, thermostatic control from 100°C to 280°C, and full insulation with vitreous enamel lining for consistent heat distribution and straightforward cleaning. Constant pilot flames with pilot flame failure safety on burners and oven burner, piezo ignition throughout, and adjustable legs from 140 to 170mm round out a practical, service-friendly package.

Key Benefits

• Fan forced gas oven delivers even heat circulation for consistent baking and roasting results across a full GN 1/1 load
• Constant pilot flame design maximises operating efficiency and reduces energy waste during service
• Pilot flame failure protection on open burners and the oven burner provides an essential safety safeguard in busy kitchen environments
• 20mm thick mild steel griddle plate retains and distributes heat evenly, suited to high-volume griddling throughout a service period
• Modular cooktop configuration options allow the range to be specified or reconfigured with different burner, griddle, and chargrill combinations as kitchen needs change
• Vitreous enamel oven interior and door simplify post-service cleaning and resist the wear of daily commercial use
• Stainless steel spill zone and drip trays contain mess at the cooktop level, keeping clean-down time to a minimum
• Adjustable legs (140–170mm) allow levelling on uneven kitchen floors and facilitate cleaning underneath the unit
• Australian-made construction with heavy-duty welded stainless steel body ensures long-term structural rigidity under continuous commercial workloads

Key Features

• Heavy-duty fully welded stainless steel body, fascia, and sides for structural rigidity and corrosion resistance
• Fully welded surrounds for griddle and chargrill options
• Flexible modular cooktop platform supporting configurations of 305mm, 610mm, 914mm, and 1219mm with burners, griddle plates, and chargrill sections
• 2 x removable high-performance 33 MJ gas cooktop burners with 40% of flame ports located in the centre cross for even heat distribution
• Cast iron star trivets on cooktop burners
• 914 x 520 x 20mm thick mild steel griddle plate positioned on the left-hand side
• 20 MJ griddle burners per every 305mm griddle section
• Piezo ignition on both griddle and oven
• Constant pilot flame on cooktop burners and oven burner
• Pilot flame failure safety on open burners; flame failure protection on oven burner
• 1005mm (40-inch) fan forced gas oven with 100°C to 280°C thermostatic control
• Oven and door fully insulated and lined with vitreous enamel for even heat distribution and easy cleaning
• GN 1/1 gastronorm-compatible oven capacity
• Three-position oven racking with heavy-duty chrome wire rack supports designed for easy removal
• Large heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment
• Ergonomic oven door handle and angled corners for a streamlined appearance and ease of use
• Stainless steel spill zone and removable drip trays for straightforward cooktop cleaning
• Adjustable legs from 140mm to 170mm for levelling on uneven surfaces
• Designed for ease of servicing in the field
• Available in alternative oven configurations: electric fan forced (PF36G240EFF-X), electric convection (PFC36G240E-X), and electric static (PF36G240E-X)
• Made in Australia

Specifications

• Width (mm): 1219
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 270
• Power / Gas Input: 161/162 MJ; 0.043 kW
• Country of Origin: Australia (Made)
