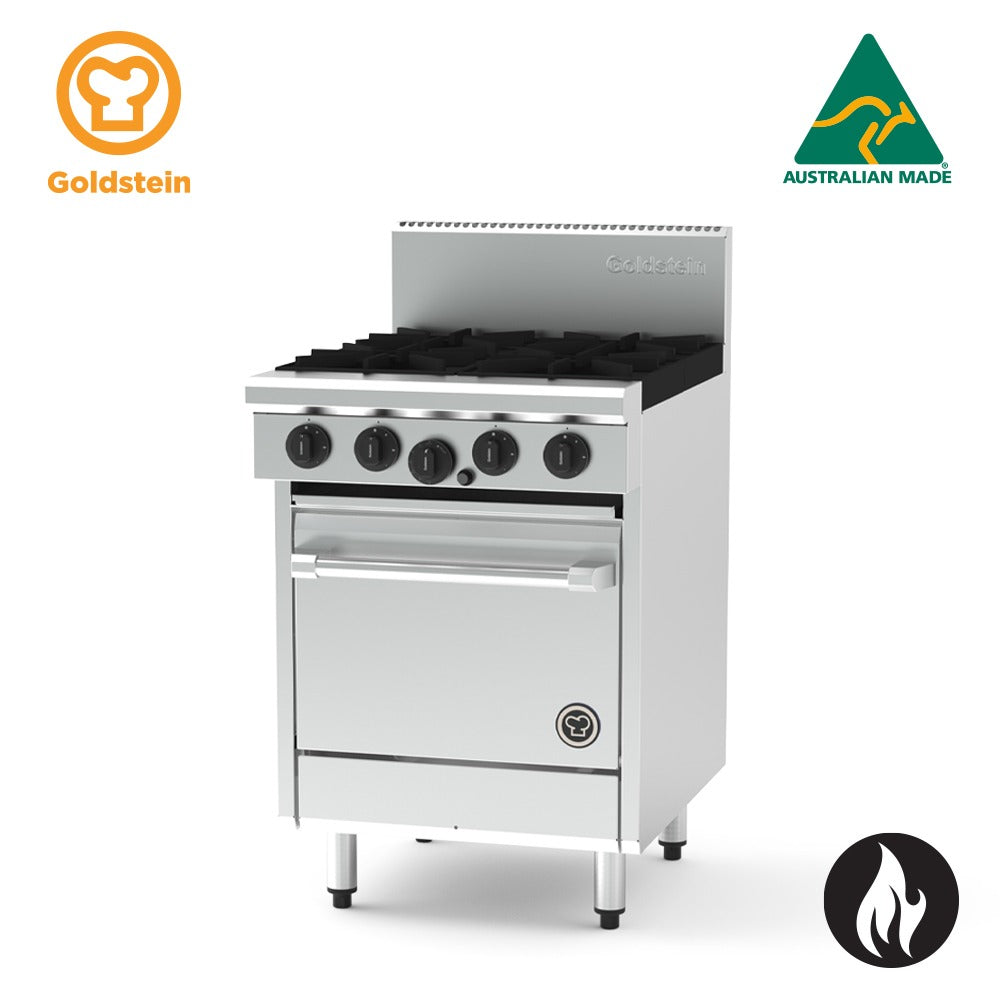

Goldstein PF420FF-X 800 X-Series 500mm Gas Fan Forced Oven Range with 4 Burners

The Goldstein PF420FF-X is an Australian-made commercial gas oven range from the 800 X-Series, pairing four high-performance open burners with a 500mm (20in) gas fan forced oven in a robust, fully welded stainless steel construction. At 610mm wide, this unit is engineered for the demands of busy commercial kitchens, delivering consistent and efficient cooking performance across both the cooktop and the oven cavity, with a total gas input of 152 MJ.

The PF420FF-X features a gastronorm-compatible fan forced oven with piezo ignition and a vitreous enamel-lined interior, supporting reliable day-to-day operation and straightforward cleaning. Its flexible modular cooktop accommodates optional griddle or chargrill sections in 305mm or 610mm configurations, allowing operators to tailor the cooking surface to their specific menu and kitchen requirements.

Key Benefits

• Gas fan forced oven circulates heat evenly throughout the full oven cavity, producing consistent baking and roasting results across every service.
• Four 33 MJ removable burners, with 40% of flame ports concentrated in the centre cross, deliver high and even heat output for peak cooktop productivity.
• The oven interior and door are lined with vitreous enamel and fully insulated, retaining heat effectively to reduce energy use and make cleaning straightforward.
• A flexible modular cooktop design allows griddle or chargrill sections to be added, giving operators the freedom to customise their cooking surface to suit their menu.
• Constant pilot flame with flame failure safety on both the open burners and the oven burner balances energy efficiency with operator safety.
• Stainless steel fascia, sides, spill zone and drip trays keep daily maintenance quick and uncomplicated.
• Adjustable legs spanning 140mm to 170mm accommodate uneven floors and simplify levelling during installation.
• GN 1/1 compatible oven cavity (500 x 560 x 355mm) with three-rack position flexibility and removable wire racks offers practical versatility for gastronorm trays.
• Australian made and supported, with a service-friendly design that helps minimise downtime in demanding foodservice environments.

Key Features

• 4 x 33 MJ removable, high-performance open cooktop burners with even heat distribution
• 40% of burner flame ports located in the centre cross for improved heat spread
• Cast iron star trivets for stable, durable pot support
• Gas fan forced oven with thermostatic control from 100°C to 280°C
• Piezo ignition for reliable, tool-free oven start-up
• Oven cavity and door lined with vitreous enamel and comprehensively insulated for consistent heat retention and easy cleaning
• GN 1/1 compatible oven cavity (500 x 560 x 355mm) with three selectable rack positions and removable wire racks that lift out without tools
• Robust welded stainless steel body providing structural integrity and long-term durability
• Fully welded surrounds to accommodate optional griddle or chargrill configurations
• Flexible modular cooktop design accepts 305mm or 610mm griddle or chargrill options
• Constant pilot flame for maximised operating and energy efficiency
• Pilot flame failure safety system on open burners and oven burner
• Stainless steel fascia and sides with spill zone and drip trays for easy maintenance
• Large heat-resistant reinforced control knobs with clearly visible high-to-low flame settings
• Ergonomic oven door handle with angled corners for a clean, professional appearance
• Griddle and BBQ section positioned on the left-hand side
• Adjustable legs from 140mm to 170mm
• Total gas input: 152 MJ
• Australian made

Specifications

• Width (mm): 610
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 170
• Shipping Weight: 180
• Packed Width (mm): 720.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 920.0
• Shipping Cubic: 0.794880000m3
• Power / Gas Input: 152/152 MJ
• Country of Origin: Australia (Made)
